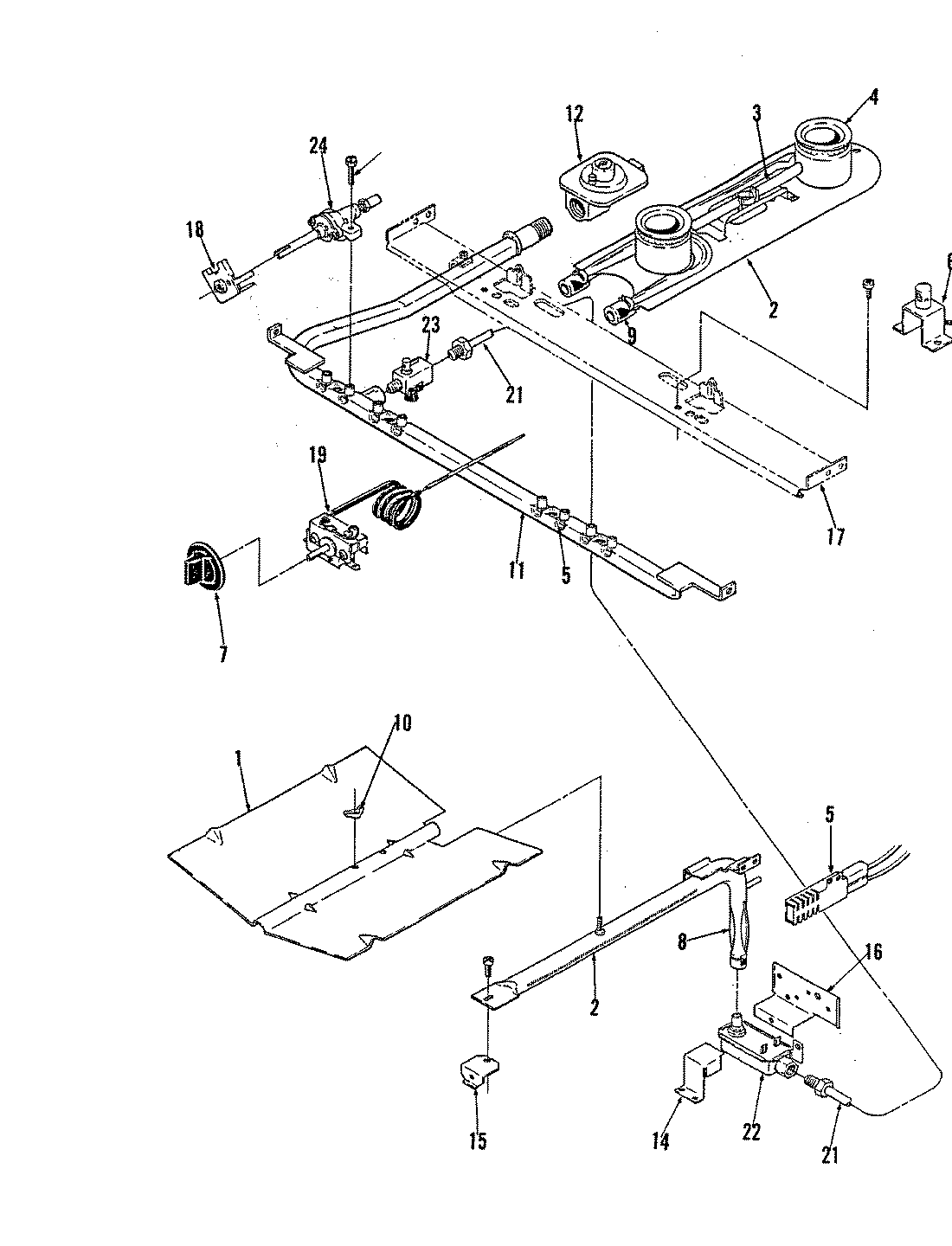

22FK-2KW 04 – CONTROL SYSTEM (LOWER)

Products

Position	Product
1	MAY 3601F099-45
2	MAY 7505P064-60
2	MAY 7505P028-60
2	MAY 3403A015-45
2	MAY 3403D027-45
3	MAY 7505P140-60
3	MAY 7505P169-60
3	MAY 7505P141-60
3	MAY Y0300253
3	MAY 7505P168-60
3	MAY 3412W001-23
3	MAY 3412A004-23
4	MAY 1083219
4	MAY 4005F304-51
5	MAY 7432P052-60
5	MAY 7432P062-60
6	MAY 7432P015-60
6	MAY 7432P028-60
6	MAY 7432P029-60
6	MAY 7432P008-60
7	MAY 7711P136-60
7	WP7711P135-60 Whirlpool Knob
8	MAY 0607214
9	MAY 7431P006-60
9	MAY 7431P008-60
9	MAY Y0607215
10	NUT, WING
11	MAY 3830F006-45
11	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11	MAY 7513P042-60
11	MAY 7513P118-60
12	MAY 7510P002-60
13	MAY 7101P043-60
14	MAY 3807F120-34
15	MAY 3807F070-45
16	MAY 3807F118-45
17	MAY 3807F080-80
18	MAY 7403P246-60
18	MAY 7403P282-60
18	MAY 7403P258-60
18	WP7403P190-60 Whirlpool Switch
18	MAY 7403P216-60
19	MAY 7515P008-60
19	MAY 7404P063-60
19	MAY 7404P021-60
20	MAY 7506P006-60
21	MAY Y0936102
22	MAY 7501P011-60
22	MAY 7501P108-60
22	MAY 7501P017-60
23	MAY 7502P002-60
24	MAY 7502P031-60
24	MAY 7502P111-60
24	MAY 7502P224-60
24	MAY 7502P145-60
