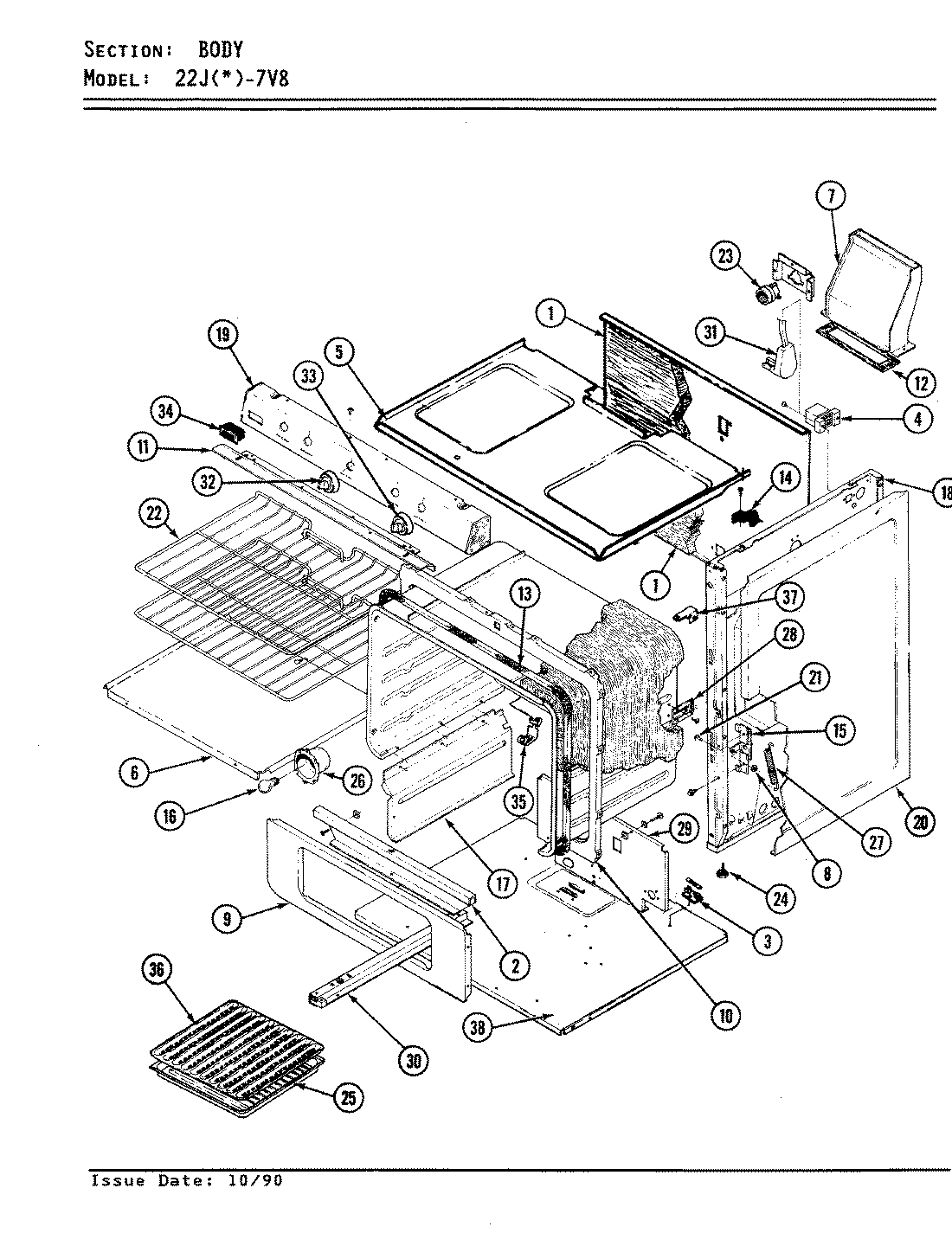

22JA-7KLXV8 02 – BODY-LOWER

Products

Position	Product
1	MAY 4002F144-80
1	MAY 4002F165-80
2	MAY 7101P058-60
2	MAY 3601W124-16
3	MAY 7401P003-60
4	MAY 7401P017-60
5	MAY 4011F095-80
6	MAY 2205F012-16
7	MAY 4006W026-23
8	MAY 8310P001-60
9	MAY 2201F034-23
10	WP74003976 Whirlpool Screw
10	MAY 2201F060-23
11	MAY 4012F021-80
12	MAY 7201P026-60
13	MAY 7212P001-60
14	MAY 7112P073-60
15	MAY 8016P008-60
15	WP4159193 Whirlpool Screw
15	MAY 3418A029-34
15	MAY 3418A030-34
16	MAY 7407P026-60
17	MAY 4009F045-45
18	MAY 4009W071-80
18	MAY 4009W077-80
19	MAY 7712P106-60
20	MAY 2618F073-74
21	MAY 7112P019-60
22	MAY 7801P030-60
23	MAY 7408P002-60
23	MAY 4005F088-80
23	MAY 3801F057-34
24	MAY Y7101P25460
25	MAY 3401F004-23
26	MAY 4001F016-23
27	WP7803P058-60 Whirlpool Spring
28	MAY 3807F205-45
29	MAY 4005F279-45
29	MAY 4002F123-45
30	MAY 3404A014-51
30	MAY 7101P061-60
30	MAY 3404A013-51
31	MAY 7402P025-60
32	WP7731P018-60 Whirlpool Knob
33	MAY 7733P053-60
33	MAY 7733P065-60
33	MAY 7733P038-60
33	MAY 7733P059-60
34	7403P067-60 Whirlpool Light Switch
35	WP7112P004-60 Whirlpool Thermal Clip
36	MAY 3413F002-23
37	MAY 3801F047-34
37	MAY 3801F049-34
38	MAY 3801F218-51
38	MAY 7101P289-60
38	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
38	MAY 4011F161-80
