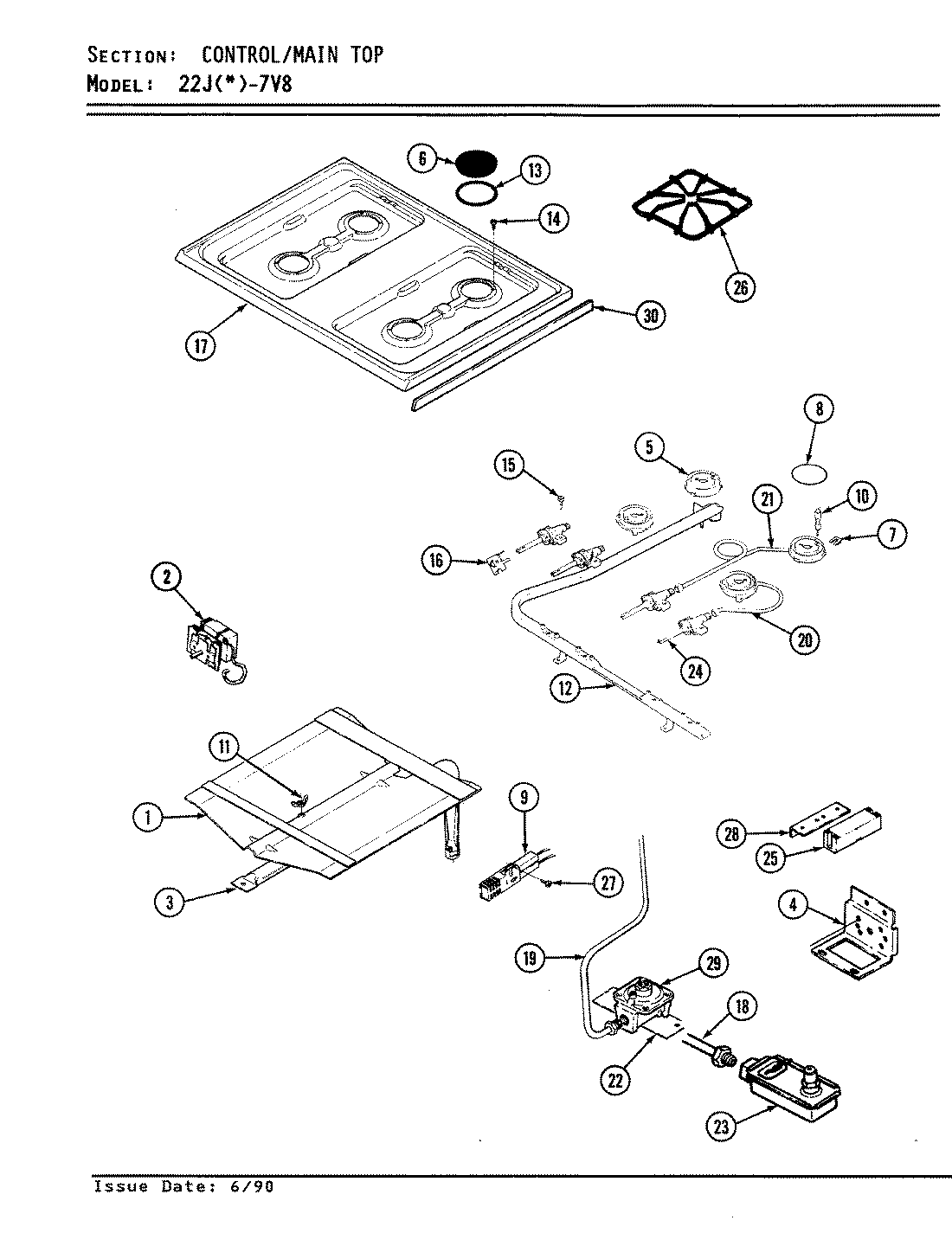

22JK-7KLXV8 06 – TOP ASSEMBLY/GAS CONTROLS

Products

Position	Product
1	MAY 3601F181-45
2	MAY 7404P063-60
2	MAY 7101P279-60
3	MAY 3403D027-45
3	MAY 3403A015-45
3	MAY 7505P101-60
4	MAY 3807F120-34
5	MAY 7505A155-60
5	MAY 7505P187-60
5	MAY 5110A824-60
5	MAY 5110A825-60
6	MAY 7504P007-60
7	MAY 7112P072-60
8	MAY 7201P037-60
9	MAY 7432P067-60
10	MAY 7432P053-60
11	NUT, WING
12	MAY 7513P093-60
12	MAY 7513P104-60
13	MAY 2014F001-00
14	MAY 7101P256-60
15	MAY 7101P043-60
16	MAY 7403P246-60
16	MAY 7403P282-60
16	MAY 7403P258-60
16	WP7403P287-60 Whirlpool Igniter Switch
16	MAY 7403P216-60
16	WP7403P190-60 Whirlpool Switch
17	MAY 2001F063-90
17	MAY 8003P011-60
18	MAY 7506P098-60
19	MAY 7506P100-60
19	MAY 7507P053-60
20	MAY 7506P076-60
21	MAY 7506P077-60
22	MAY 3801F191-45
23	MAY 7501P108-60
23	MAY 7501P017-60
24	MAY 7502P220-60
24	MAY 7502P229-60
24	MAY 7214P003-60
24	MAY 7502P141-60
24	MAY 7502P100-60
25	MAY 7431P017-60
25	MAY 7431P016-60
26	MAY 7518P009-60
27	SCREW (10-24X5/16-NI)
28	MAY 3801F205-45
28	MAY 3801F226-45
29	MAY 1555251
29	MAY 7510P048-60
29	MAY 7510P028-60
29	MAY 7510P040-60
30	MAY 7103P064-60
30	MAY 7746P026-60
30	WP7101P072-60 Whirlpool Screw
30	MAY 7746P025-60
31	MAY 7509P033-60
31	MAY 7509P034-60
32	MAY 5415A026-60
32	MAY 5415A027-60
