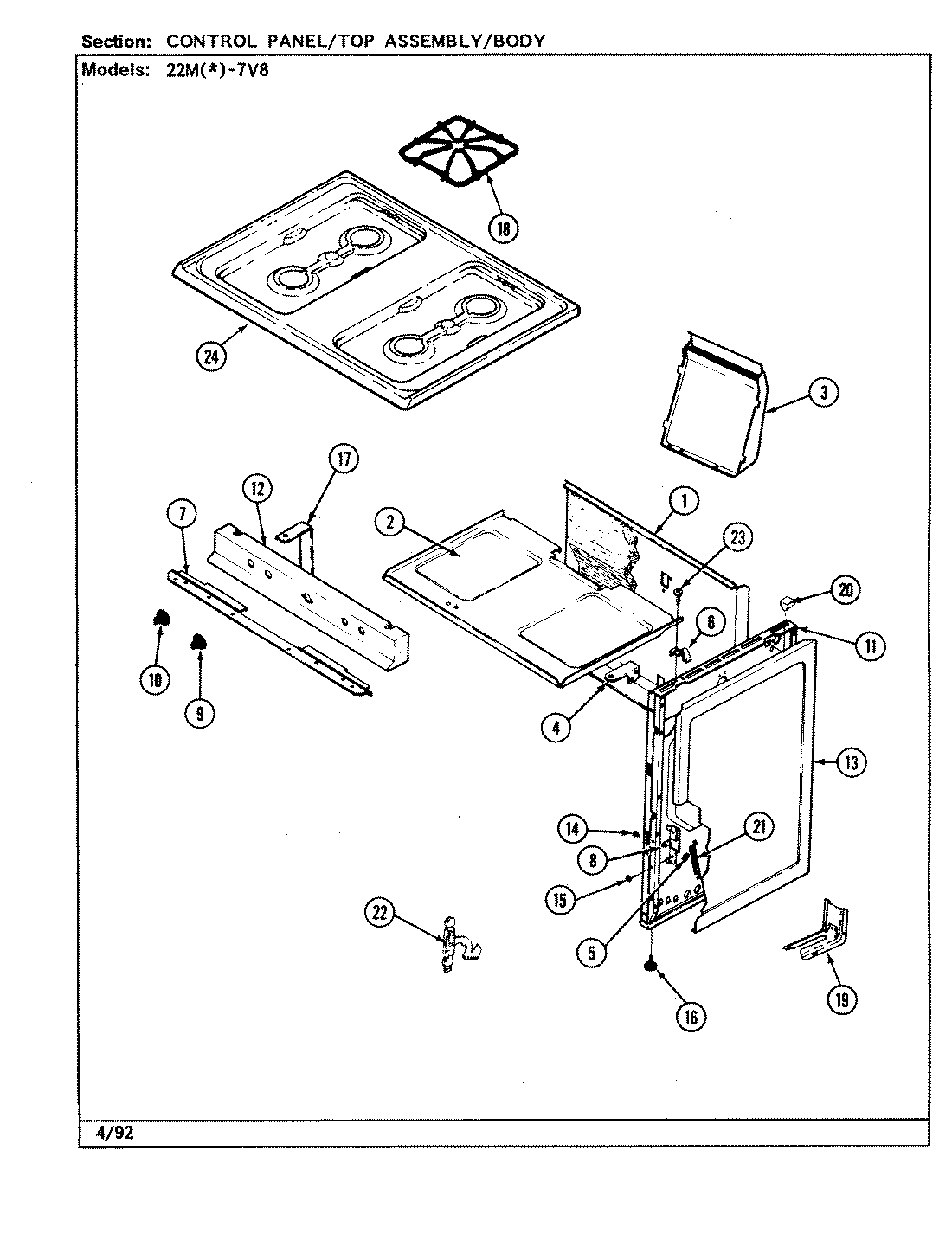

22MW-7KLXV8 04 – CONTROL PANEL/TOP ASSEMBLY/BODY-LOWER

22MW-7KLXV8 04 – CONTROL PANEL/TOP ASSEMBLY/BODY-LOWER

Written by

in

22MW-7KLXV8 04 – CONTROL PANEL/TOP ASSEMBLY/BODY-LOWER

Products

PositionProduct
1MAY 4002F165-80
2MAY 4011F196-80
3MAY 4006W026-80
4MAY 3801F047-34
4MAY 3801F049-34
5MAY 7112P019-60
6MAY 7112P073-60
7MAY 4012F021-80
7WP98008545 Whirlpool Screw
8MAY 8016P008-60
8MAY 3418A030-34
8MAY 3418A029-34
9WP7731P018-60 Whirlpool Knob
10MAY 7733P065-60
11MAY 4009W078-80
11MAY 7103P045-60
11MAY 8008P012-60
12MAY 7112P087-60
12MAY 7118P004-60
12MAY 7712P106-60
13MAY 2618F073-71
15WP4159193 Whirlpool Screw
16MAY Y7101P25460
17MAY 3807F431-45
18MAY 2003W023-00
19MAY 7101P289-60
19MAY 3801F218-51
20MAY 8003P011-60
21WP7803P058-60 Whirlpool Spring
22MAY 3420A033-34
23MAY 7101P061-60
24MAY 2001F080-81
