22MW-7KLXV8 05 – DOOR/DRAWER – Aparts

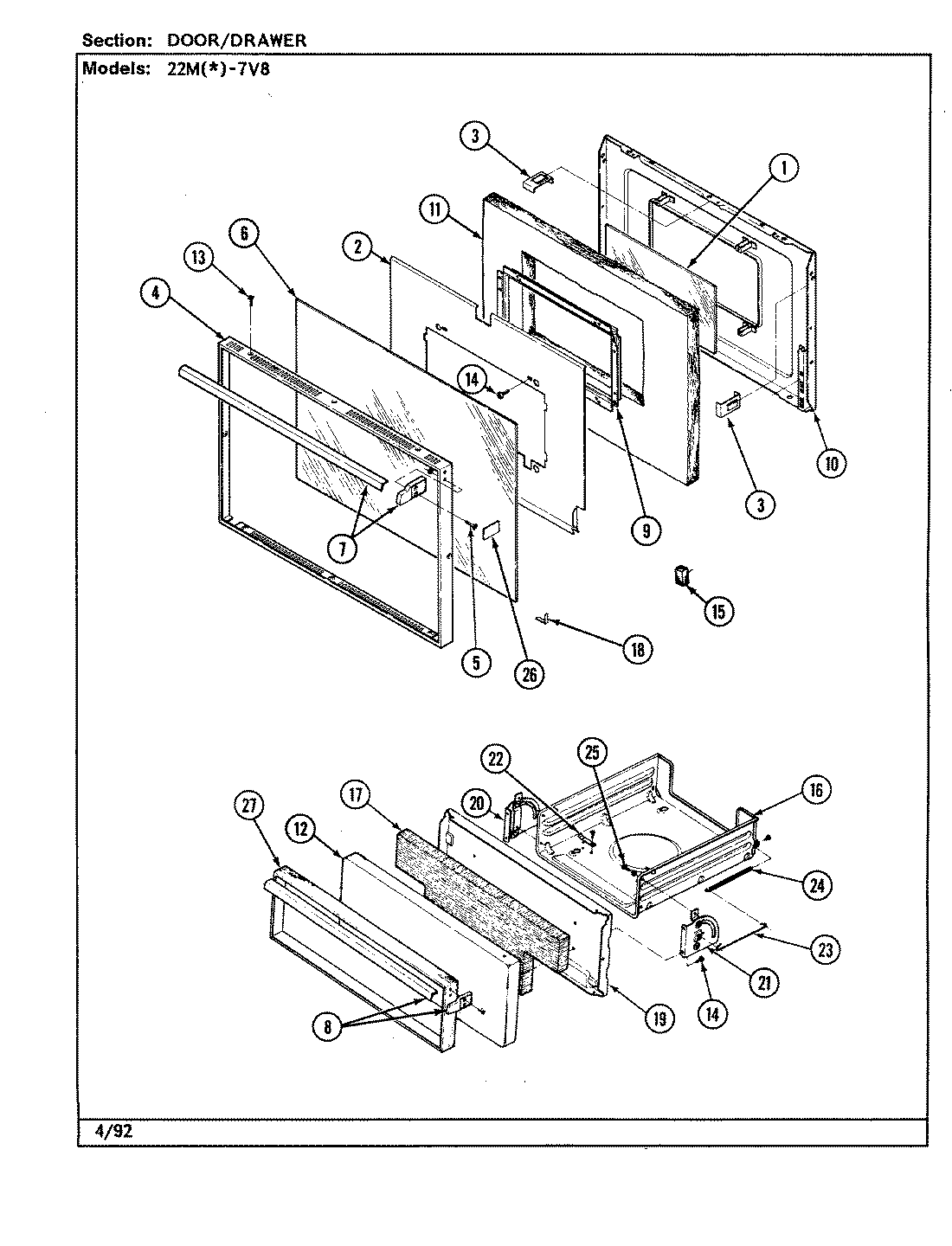

22MW-7KLXV8 05 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P035-60
2	MAY 3601F094-51
3	CLIP, DOOR
4	MAY 7706P243-60
5	MAY 7101P305-60
6	MAY 7902P274-60
8	74002481 Whirlpool Screw
8	MAY 7701P047-60
9	MAY 3603F013-80
10	MAY 2402W154-19
11	MAY 4804F021-60
13	WP7101P126-60 Whirlpool Screw
14	MAY 7101P061-60
15	MAY 7208P011-60
16	MAY 7101P076-60
16	MAY 3407W009-19
16	MAY 7103P067-60
17	MAY 7002P002-60
18	MAY 8010P045-60
19	MAY 2404F021-19
19	MAY 7101P058-60
20	MAY 3418A063-34
21	MAY 3418A062-34
22	MAY 8002P001-60
23	MAY 7807P001-60
24	MAY 7803P014-60
25	MAY 7101P114-60
26	MAY 7728P068-60
27	MAY 7706P182-60
