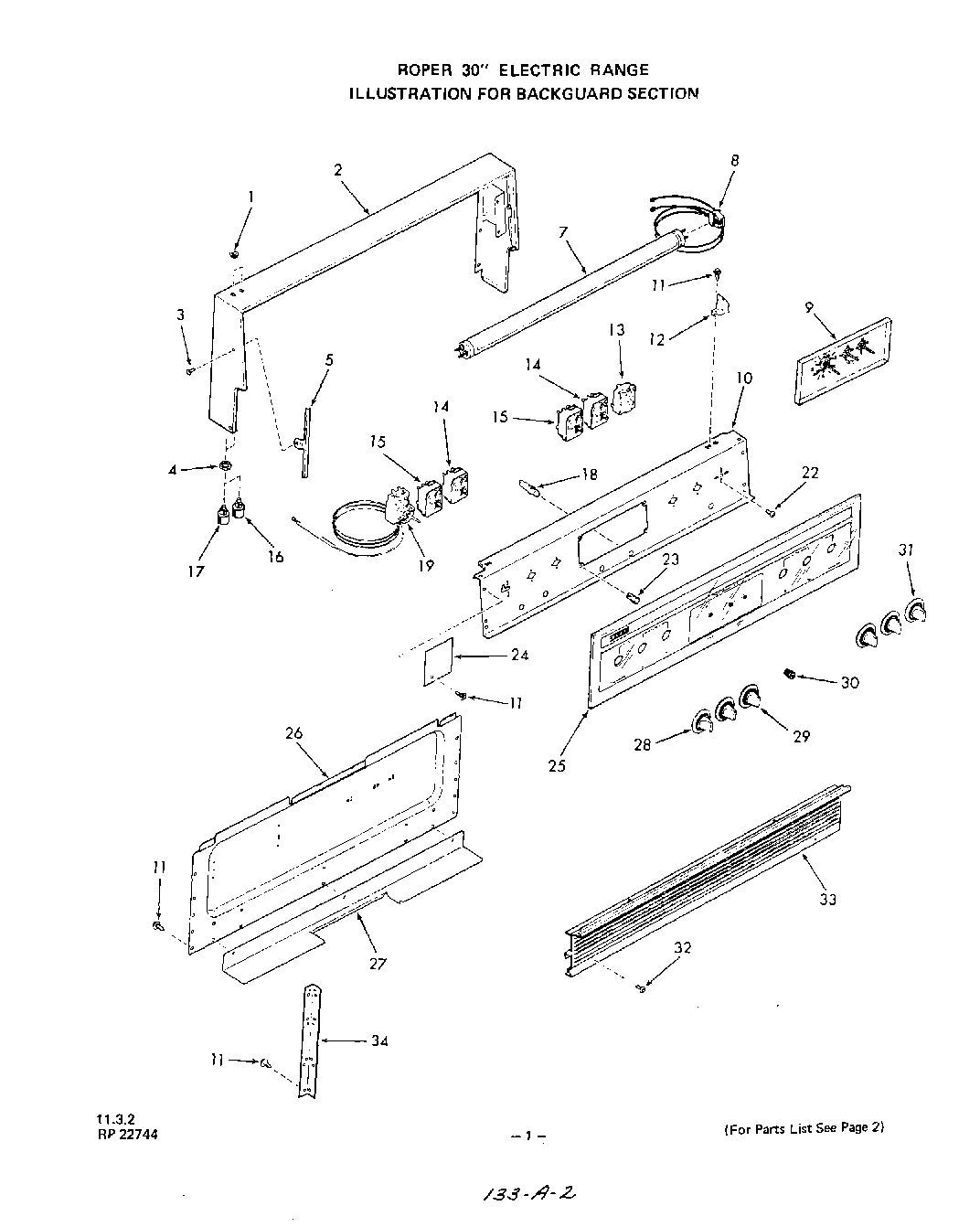

2323^0A 02 – BACKGUARD

Products

Position	Product
1	Knurled Nut
2	Frame-Backguard
4	Lock Nut
5	End Trim- Top Lamp Glass (Lt. or Rt.)
7	Fluorescent Lamp (20 W – 24“)
8	Holder-Fluorescent Lamp (Left)
8	Holder-Fluorescent Lamp (Right)
9	Clock w/1 Hr Timer
10	Mounting Panel-Controls
11	WP112432 Whirlpool Nut Assembly
12	Bracket-Fluorescent Lamp (Rt. or Lt.)
13	Selector Switch
14	Right Front & Left Rear
15	Left Front & Right Rear
16	Push Switch-Fluorescent Lamp
17	Push Switch-Oven Light
18	Indicator Light (Oven)
18	Indicator Light
19	2214, 2224, 2234, 2244 0A & 1A Models
22	WPL 78565
23	Tubular Clip (4 Req.)
24	Shield Switch
25	Top Lamp Glass
26	Wire Cover-Backguard
27	Bottom-Backguard Wire Cover
28	Knob-Thermostat
29	Knob-Infinite Switch Control (4 Req.)
30	Knob-Clock (Start & Stop Time)
31	Knob-Selector Switch
32	Screw 6-32×3/8“
33	Bottom Front-Backguard
34	Support-Backguard (Lt. or Rt.)
