2323^0A 04 – BODY

2323^0A 04 – BODY

Written by

in

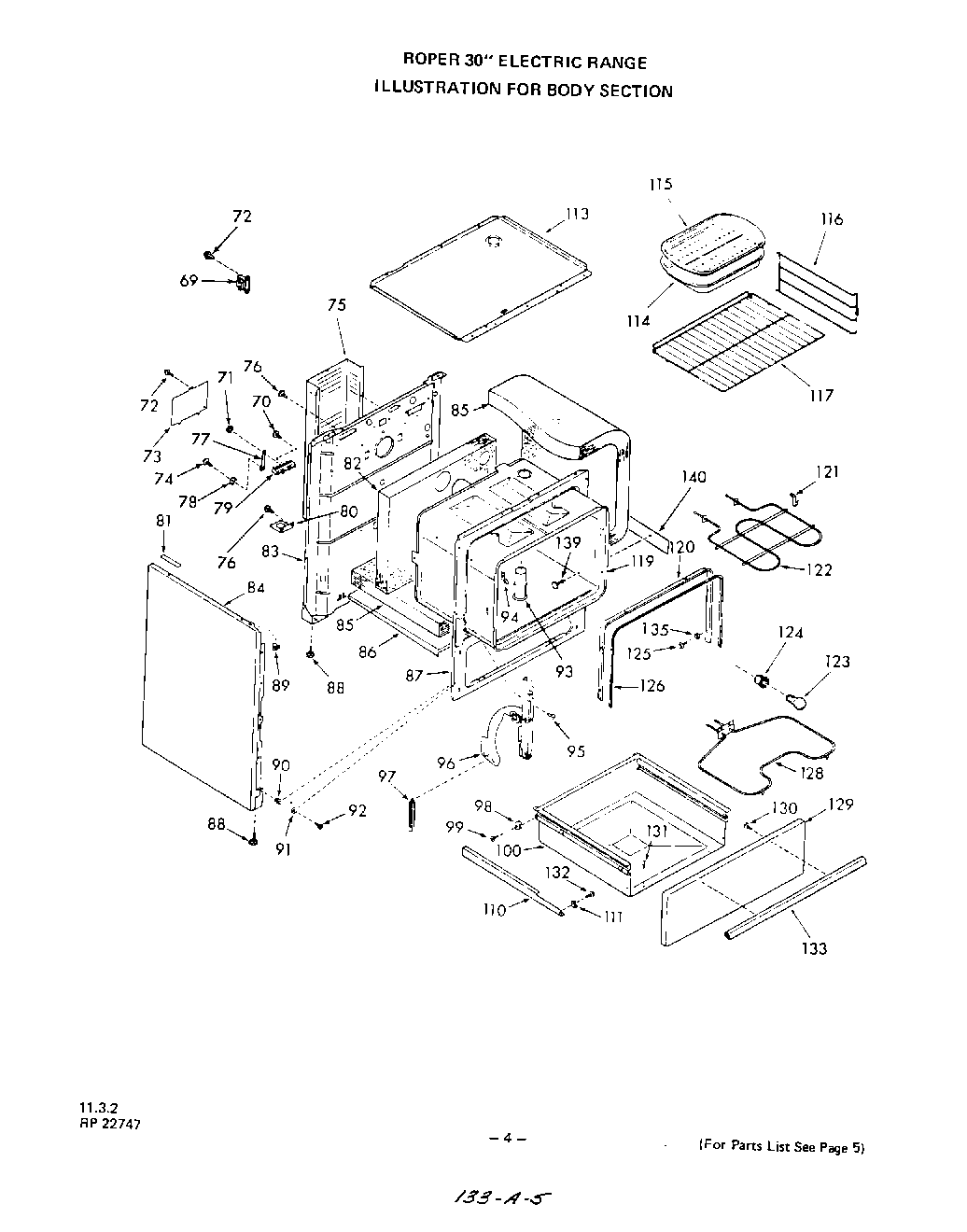

2323^0A 04 – BODY

Products

PositionProduct
69Ballast
70Screw 10-32×1“
71Hex Nut 10-32
73Access Plate
74Screw 10-32×7/16“
75Wire Shield
76WP112432 Whirlpool Nut Assembly
77Ground Strap
78Washer
79Junction Block
80Range Service Mounting Plate
81Spacer-Main Top
82Insulation – Oven Back
83Main Back
84Wheat-Left
84Almond-Right
84Almond-Left
84Avocado
84Body Side-Lt. (Avocado)
84Wheat-Right
84White-Left
84Coffee
84Body Side-Lt. (Coffee)
84White-Right
85Insulation-Oven Top & Sides (1 Piece)
86Retainer-Bottom Insulation
87Front Frame
88Leg Leveler (4 Required)
89Catch-Strike
90Grommet – Screw (8 Req.)
91Washer
92WP303896 Whirlpool High Limit Thermostat
93Vent Tube
94Thermostat Bulb Clip (2 Required)
95Screw 10-32 x 5/8“
96Right
96Left
97Spring-Oven Door (Lt. or Rt.)
98Rear Slide Block – Lt. or Rt.
99Screw 8 – 32 x 3/8“
100Storage Drawer
110Support-Storage Drawer (Lt. or Rt.)
111Front Slide Block-(Lt. or Rt.)
113Burner Box Bottom
114WPL 293098
115WPL 293099
116WPL 305409
117WPL 305408
119Oven Body
120WPL 296103
121Support-Broiler Elem
122Broiler Element
123Oven Lamp Bulb
124Holder-Oven Light Bulb
125WPL 321162
126WPL 296102
128CH2858 Chromalox Bake Element 240V/2700W
129WP912618 Whirlpool Dishwasher Screw
129White
129WPL 309044
129WPL 309043
129WPL 309042
130WPL 295850
131WPL 316365
132Screw 10-32×17/32“
133Handle-Broiler Door
135WPL 21067
139WPL 313498
140Retainer-Insulation (Rt. or Lt.)
