2323W0A 06 – LIT/OPTIONAL

2323W0A 06 – LIT/OPTIONAL

Written by

in

2323W0A 06 – LIT/OPTIONAL

Products

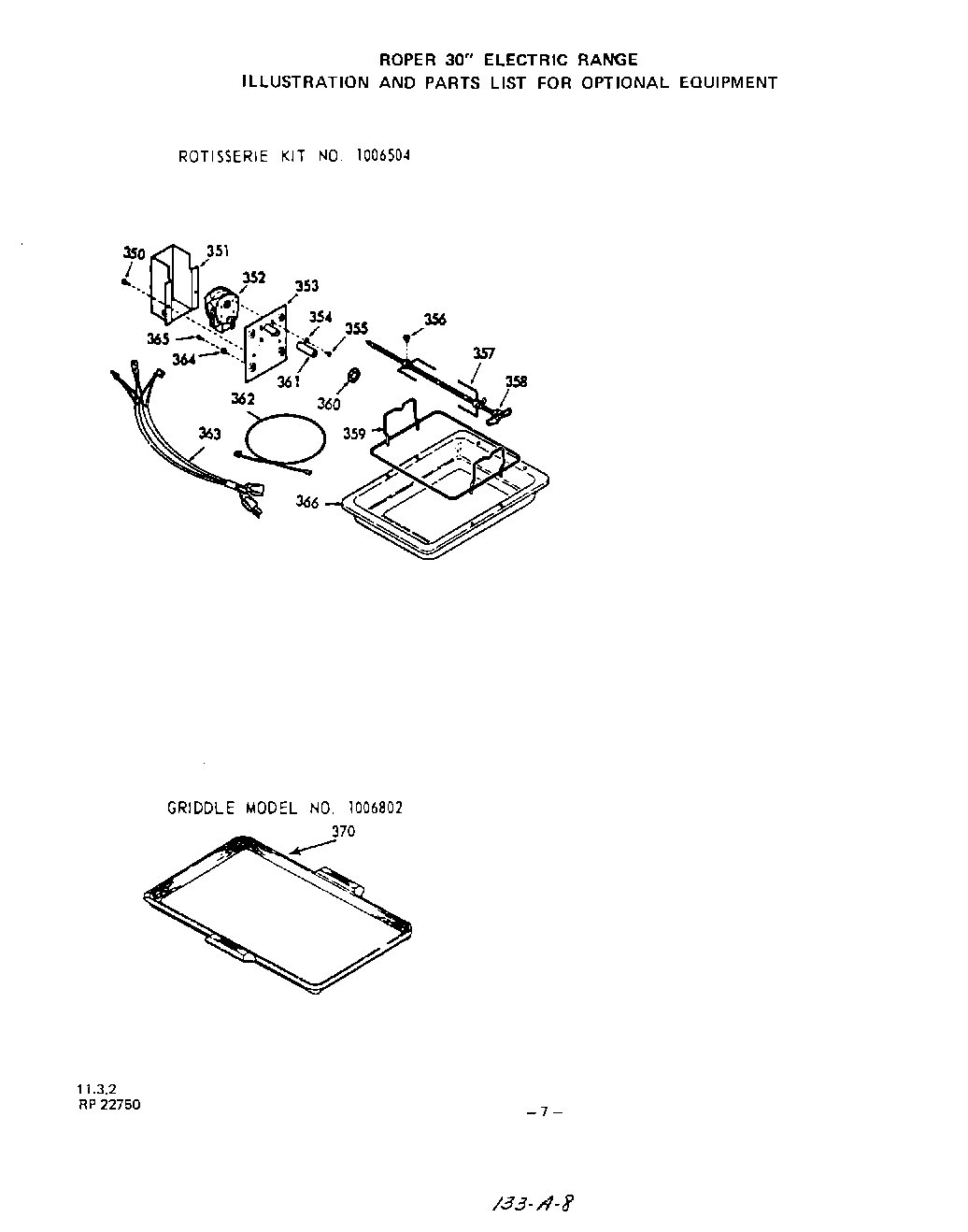

PositionProduct
xSwitch (For Key No. 352)
xParts Not Shown On Illustration
xInstallation Instructions
350Screw 10 – 32 x 1/4“
351Cover – Rotisserie Motor
352Rotisserie Motor
353Mounting Bracket-Rotisserie Motor
354Lockwasher 3/16“
355Screw 8-32×1/4“
356Thumbscrew
357Skewer
358Rotisserie Spit
359Spit Support
360Plug Button
361Guide Extension – Rotisserie Motor
362Black With 1/4“ Faston & Eyelet Terminals
362Fixture Wire Lead With 1/4“ Faston & Piggy Back Terminals (White)
362White
362Black
363Rotisserie Cord
364Lockwasher
365Screw 10-32 x 1/2“
366Rotisserie Pan
370Set-On-Griddle (Optional)
