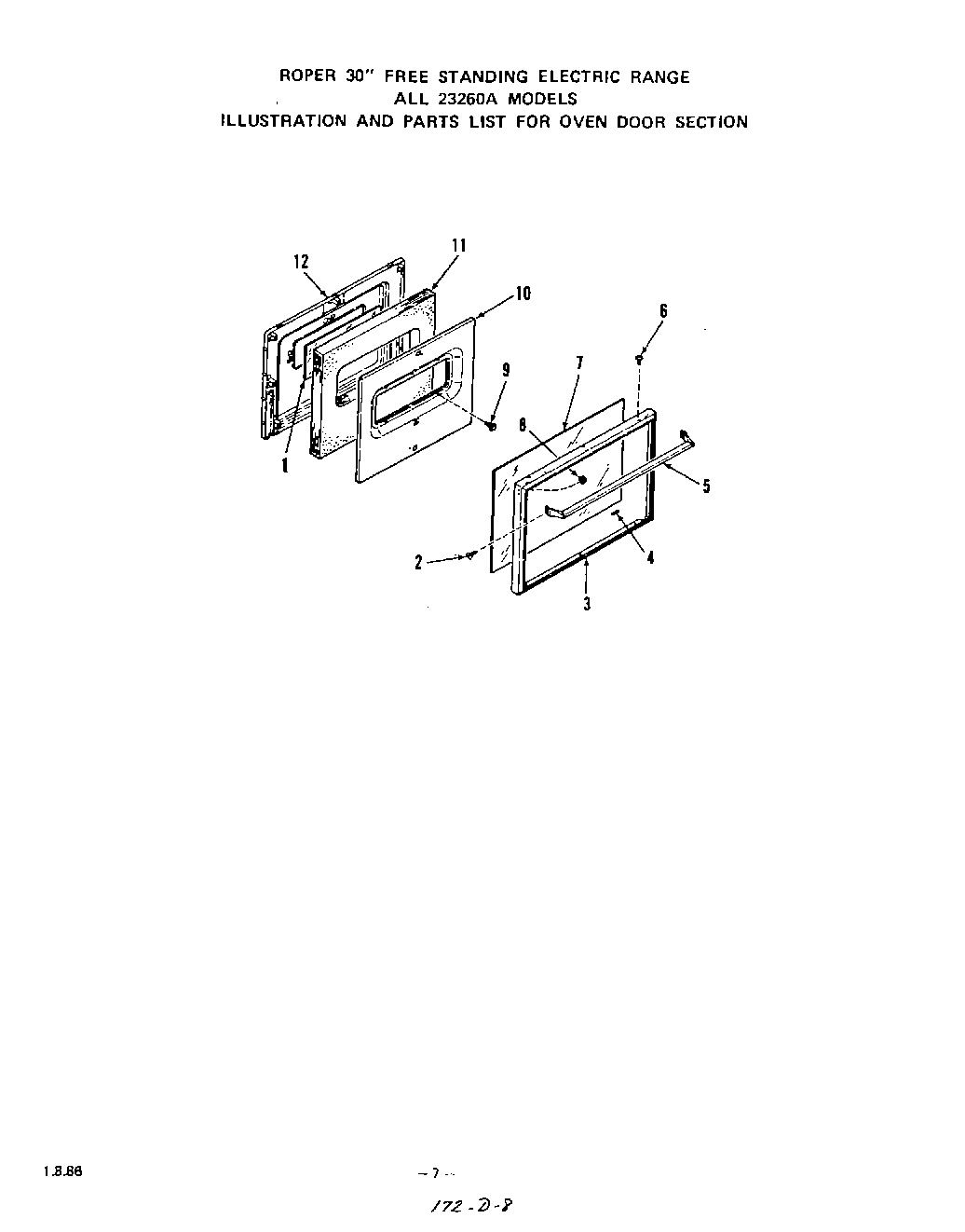

| xParts Not Shown On Illustration |
| 1 | Glass-Inner Oven Door |
| 2 | Screw 8-32 x 1/2`` |
| 3 | frame-oven door |
| 4 | Cushion-Door Glass |
| 5 | Handle-Oven Door |
| 6 | Screw-10-32x1/2`` |
| 7 | outer glass-oven door |
| 8 | Keps Nut 8-32 |
| 9 | Screw 10 - 32x3/8`` |
| 10 | Retainer-Oven Door Insulation |
| 11 | Insulation |
| 12 | xWire Harness |
| 12 | xOperating Guide |
| 12 | xRepair Parts Manual |
| 12 | Main Top |
| 12 | Main |
| 12 | xInstallation Guide |
| 12 | Electric Use & Care Guide |
| 12 | Lining-Oven Door (14451A Models) |
