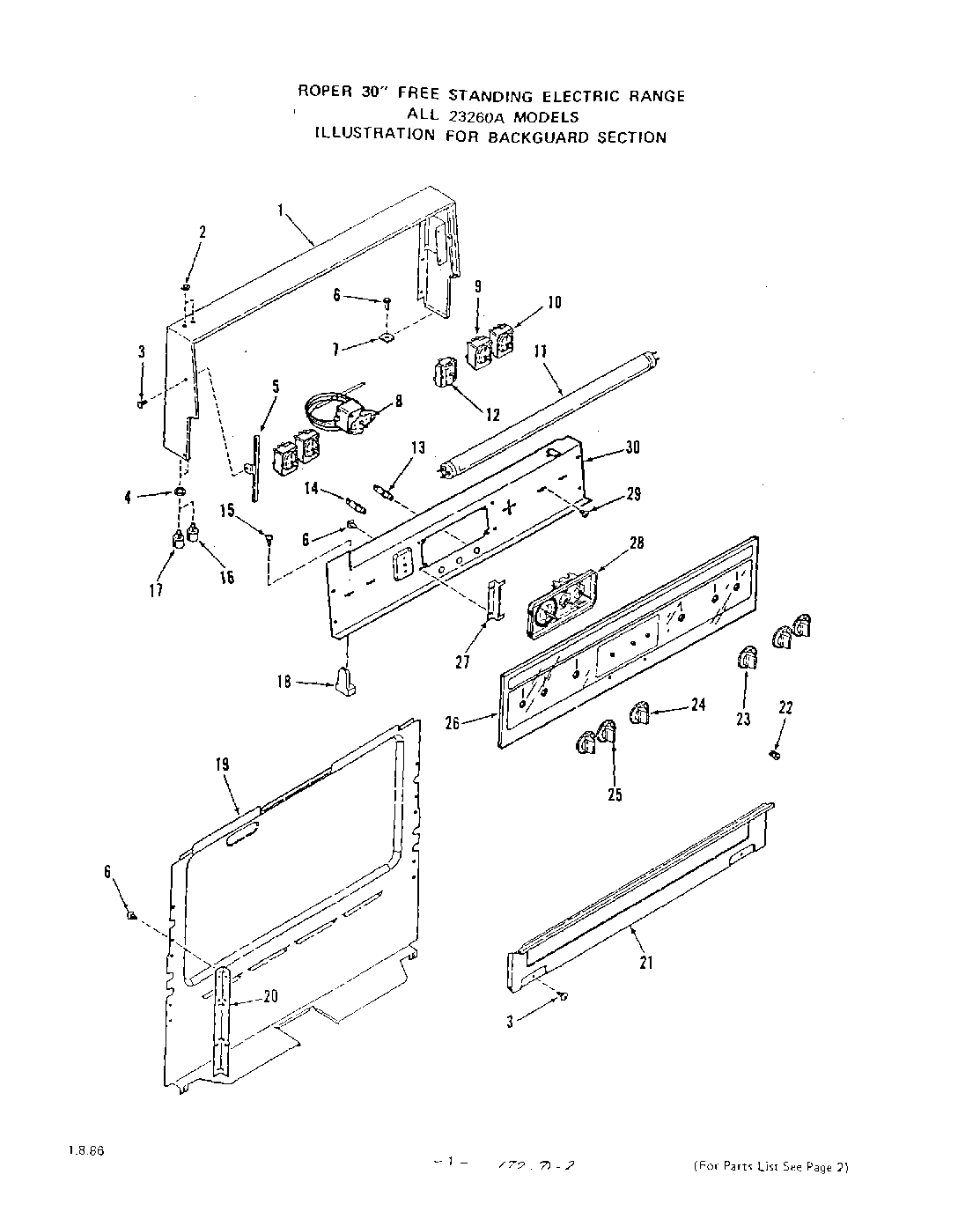

2326W0A 02 – MAIN TOP

Products

Position	Product
1	Frame-Backguard
2	Knurled Nut
3	Screw 6-20×3/8“
4	Lock Nut
5	End Trim- Top Lamp Glass (Lt. or Rt.)
6	Screw 10-16×7/16“
7	Plate All 16331A,2A Models
8	2214, 2234, 2244 2A Models
9	Left Front & Right Rear
10	Right Front & Left Rear
11	Fluorescent Lamp (20 W – 24“)
12	Selector Switch
13	Indicator Light
14	Light-Indicator Oven
15	Screw 6-32 x 1/2“
16	Push Switch-Fluorescent Lamp
17	Push Switch-Oven Light
18	Holder-Fluorescent Light
19	Cover-Backguard Wire
20	Support-Backguard (Lt. or Rt.)
21	Backguard Front-Bottom
22	Knob-Clock (Start & Stop Time)
23	Knob-Selector
24	Knob-Thermostat
25	Knob-Infinite Switch (4 Req)
26	Glass-Backguard
27	Bracket-Clock
28	WPL 333049
29	WPL 78565
30	Panel-Control Mounting
