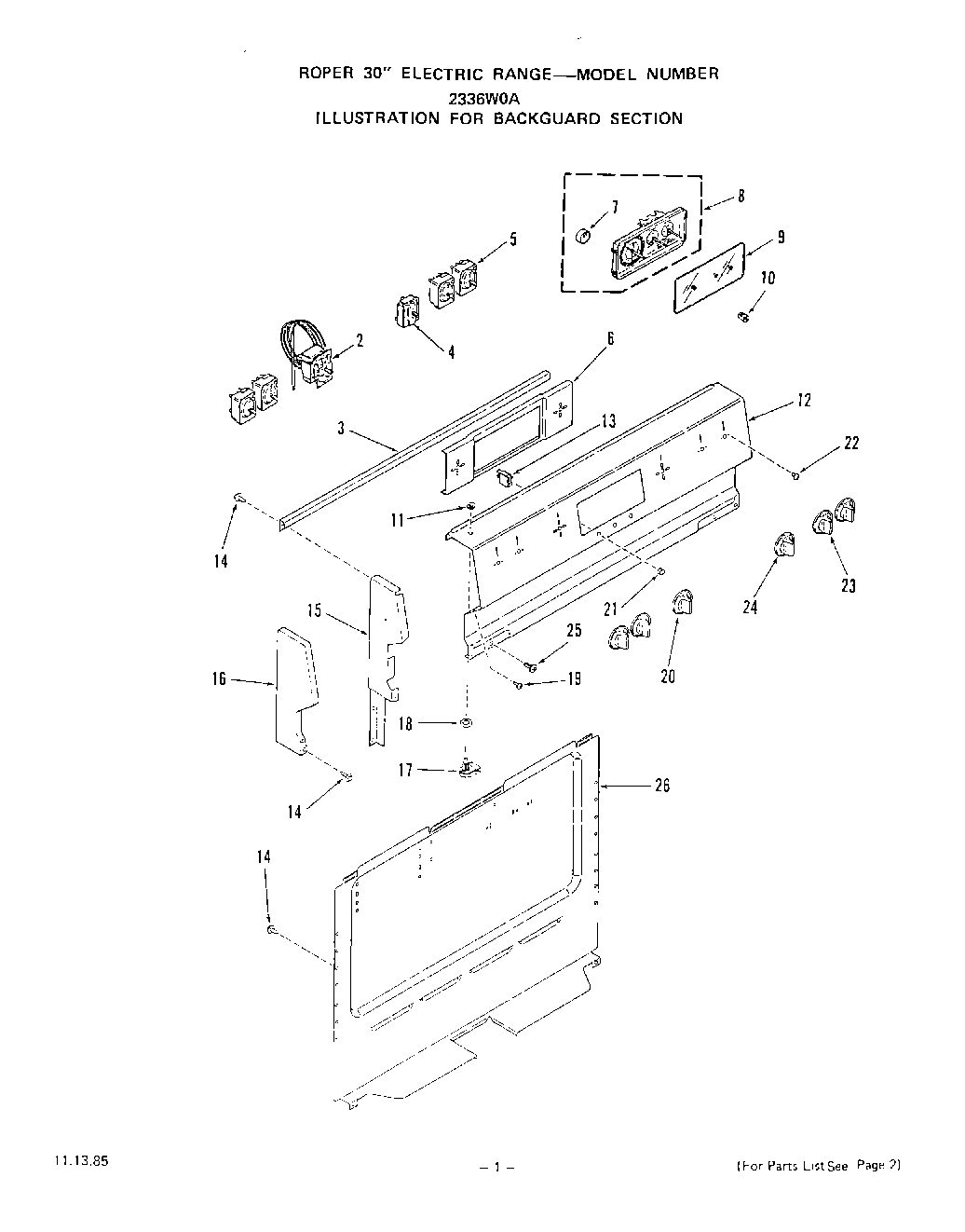

| 2 | Oven Thermostat |
| 3 | Brace-Backguard |
| 4 | Selector Switch |
| 5 | Infinite Control (Left) |
| 5 | Infinite Control (Right) |
| 6 | Bracket-Clock |
| 7 | Clock Motor (50 Cycle (Optional)) |
| 7 | Clock Motor |
| 8 | Clock w/ 1 Hr. Timer (Inc`s. Key 7) (60 Cycle) |
| 8 | Clock w/ 1 Hr. Timer (Inc`s. Key 7) (50 Cycle (Optional)) |
| 9 | Clock Glass |
| 10 | Knob-Clock (Start & Stop Time) |
| 11 | Knurled Nut |
| 12 | Control Panel |
| 13 | Indicator Light |
| 13 | Oven |
| 14 | Screw 10-16x7/16`` |
| 15 | Support-Backguard (Right) |
| 15 | Support-Backguard (Left) |
| 16 | End Cap-Backguard (Right) |
| 16 | End Cap-Backguard (Left) |
| 17 | Push Switch-Oven Light |
| 18 | Lock Nut |
| 19 | Screw 6-20x3/8`` |
| 20 | Knob-Thermostat |
| 21 | Lens-Indicator Light |
| 22 | G.M. Screw 8-32x3/16`` |
| 23 | Knob-Infinite Control (4 Req) |
| 24 | Knob-Selector |
| 25 | Screw 10ABx1/2`` |
| 26 | Wire Cover-Backguard |
