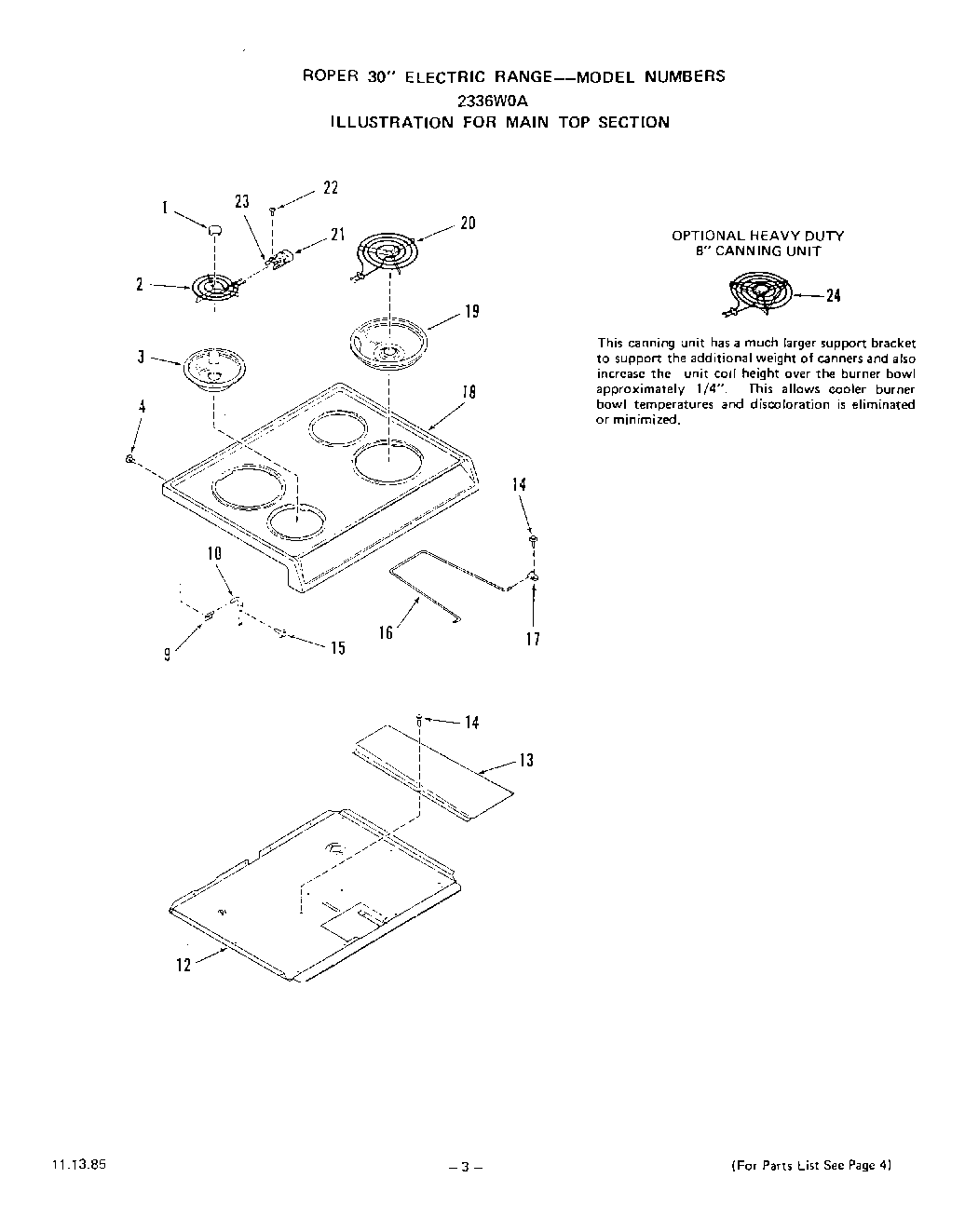

2336W0A 03 – POWER LOCK

Products

Position	Product
1	Medallion (2 Req) All 2101 Models
1	Medallion (4 Required)
2	6“ Surface Unit (Lt. Front & Rt. Rear)
3	6“ Burner Bowl (1 Req) All 2101 Models
4	Screw 10ABx1/2“
9	Bracket-Main Top Hinge (2 Req)
10	Right
10	Left
12	Bottom-Burner Box
13	Switch, Fluorescent Light
14	Screw 10-16×7/16“
15	WPL 321162
16	Support Rod-Main Top
17	Clip
18	White
19	8“ Burner Bowl (1 Req) All 2101 Models
20	8“ Surface Unit (Rt. Front & Lt. Rear)
21	Term. Block w/Leads-All 2101 Models
22	Screw 7-32×5/16“(2 Req) All 2101 Models
23	Bracket-Term. Block (2 Req) All 2101 Mod.
24	WPY04100165 Whirlpool Surface Element
24	Optional Heavy Duty 8“ Canning Unit (240 Volt)
