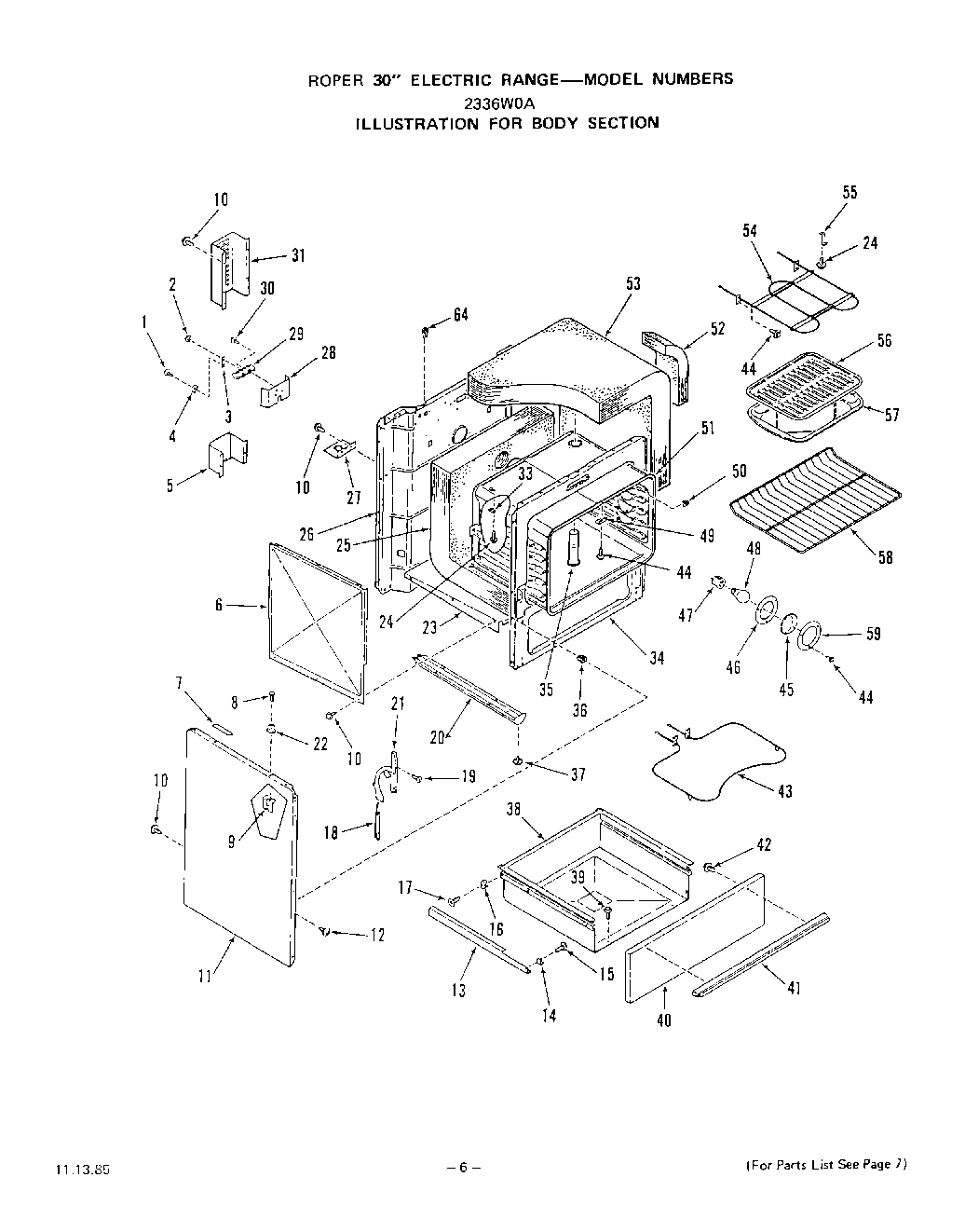

2336W0A 05 – OVEN DOOR

Products

Position	Product
1	Screw 10-32×7/16“
2	G.M. Hex Nut 10-32
3	Ground Strap
4	Washer
5	Wire Shield-Lower
6	Retainer-Insulation (Lt. or Rt.)
7	Spacer-Main Top (2 Req)
8	Screw 6-32×7/8“
9	Bracket-Body Side (Lt. or Rt.)
11	White
12	Screw 8ABx5/8“
13	Support-Storage Drawer (Lt. or Rt.)
14	Front Slide Block-(Lt. or Rt.)
15	Screw 10-32×17/32“
16	Rear Slide Block – Lt. or Rt.
17	Screw 8 – 32 x 3/8“
18	Spring-Oven Door (Lt. or Rt.)
19	Screw 10-32 x 5/8“
20	Base w/Levelers (Lt. or Rt.)
21	Left
21	Right
22	Strike-Main Top (Lt. or Rt.)
23	Retainer-Bottom Insulation
25	Insulation-Oven Back & Bottom
26	Main Back
27	Range Service Mounting Plate
28	Insulation-Service Cord
29	Junction Block
30	Screw 10-32×1“
31	Shield-Upper Wire
33	Cover Plate-Thermostat Bulb
34	Front Frame
35	Vent Tube
36	BURNER RECEPTACLE KIT
37	Leg Leveler (4 Req)
38	Storage Drawer
40	WPL 326073
41	WPL 286357
42	WPL 295850
43	Bake Element (208 Volt (Optional))
43	WPL 325883
44	Screw 10-16×7/16“
45	Lens-Oven Light
46	Gasket-Lens
47	Holder-Oven Light Bulb
48	WPL STD372401
49	Cover
50	Clip-Thermostat Bulb (2 Req)
51	WPL 331578
52	Insulation (Rt. or Lt.)
53	Insulation-Oven Top & Sides (1 Piece)
54	WPL 326938
54	WPL 326939
55	Support-Broiler Element
56	WPL 326297
57	WPL 331592
58	Oven Rack (2 Req)
59	Retainer-Oven Light Lens
64	WPL 327649
