2354^2A 02 – BACKGUARD

2354^2A 02 – BACKGUARD

Written by

in

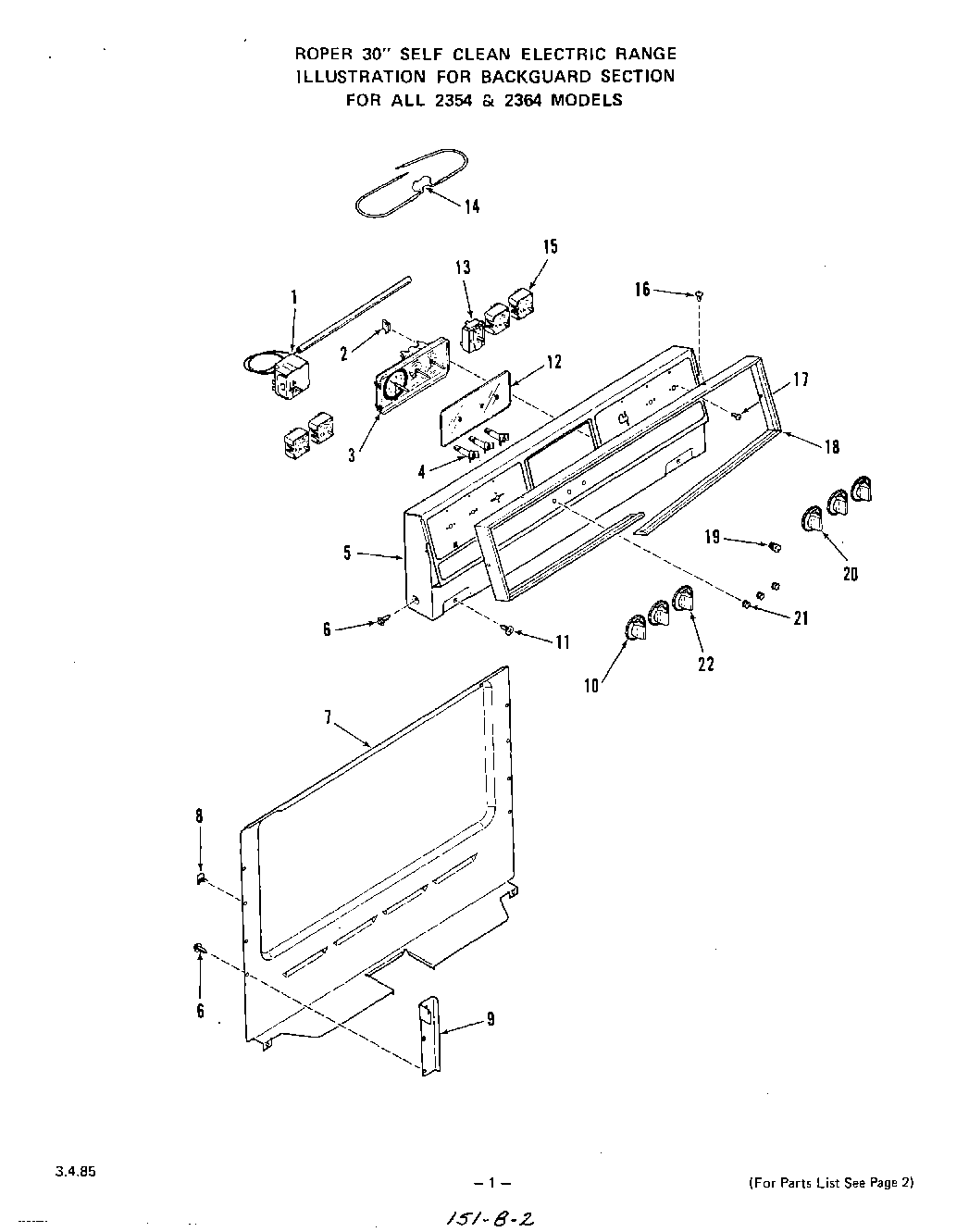

2354^2A 02 – BACKGUARD

Products

PositionProduct
1Thermostat
2Clip-Clock (4 Req)
3Clock w/1 Hr. Timer
4Indicator Light
5White
5Black
5Toast
5Platinum
5Panel-Backguard
5Almond
6Screw 10-16×7/16“
7Cover-Backguard Wire
8Clip
9Support-Backguard
9Support-Backguard (Right)
9Support-Backguard (Left)
10Knob-Infinite Control (4 Req)
11Screw 10ABx1/2“
12Clock Glass
13Selector Switch
14Wire Lead w/Resistor
15Infinite Control
15WPL 320944
15Infinite Control (Right)
15Infinite Control (Left)
16Screw 6-20×3/8“
17WPL 78565
18Bezel-Backguard
19Knob-Clock (Start & Stop Time)
20Knob-Selector Switch
21Lens-Indicator Light
22Knob-Thermostat
