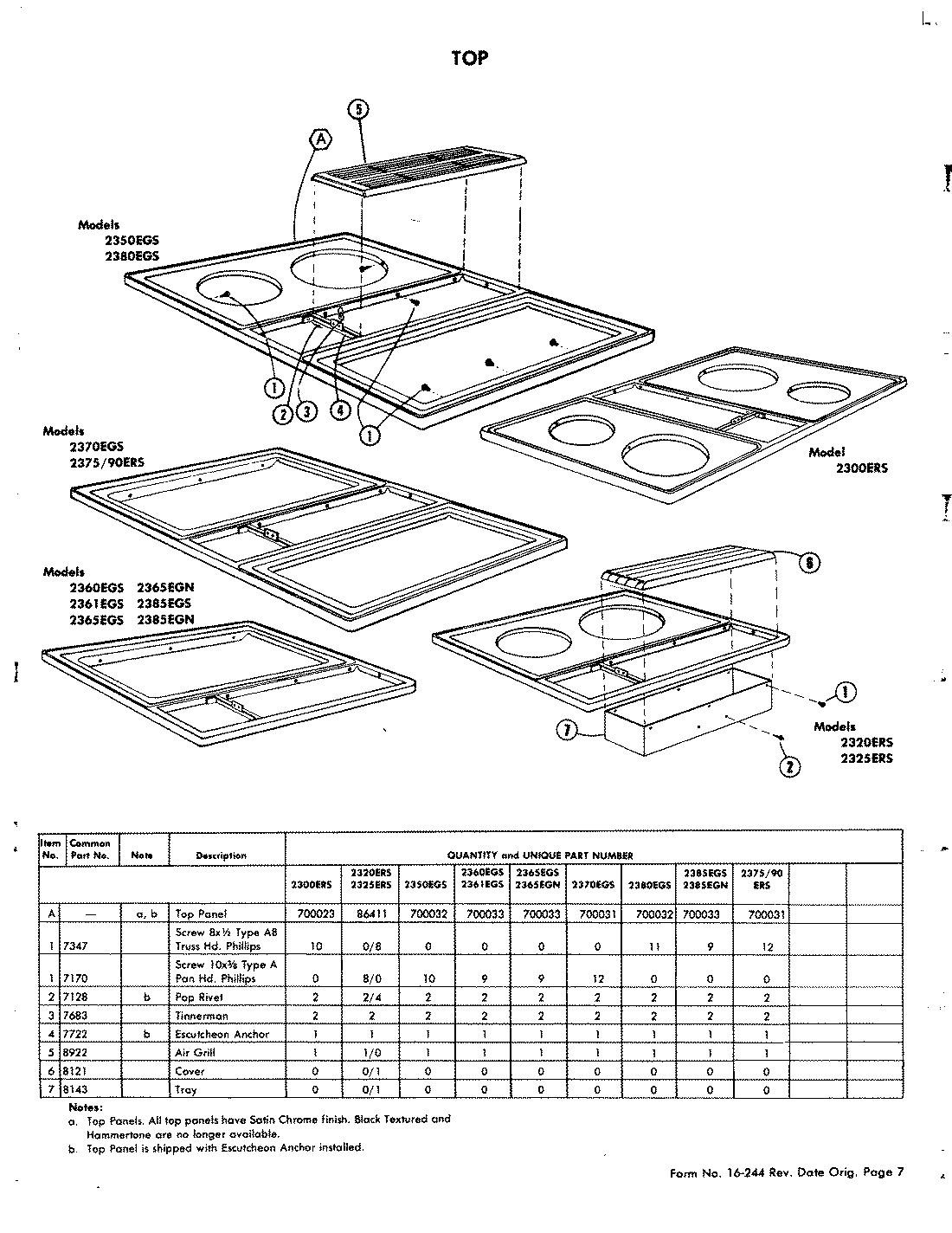

2360 05 – TOP ASSEMBLY
Products
| Position | Product |
|---|---|
| 1 | WP7101P126-60 Whirlpool Screw |
| 1 | TOP, RANGE |
| 2 | WP210720 Whirlpool Rivet |
| 3 | NUT |
| 4 | ANCHOR |
| 5 | VENT GRILL |
| 7 | NOT REQUIRED PART OR SEE NOTE |
