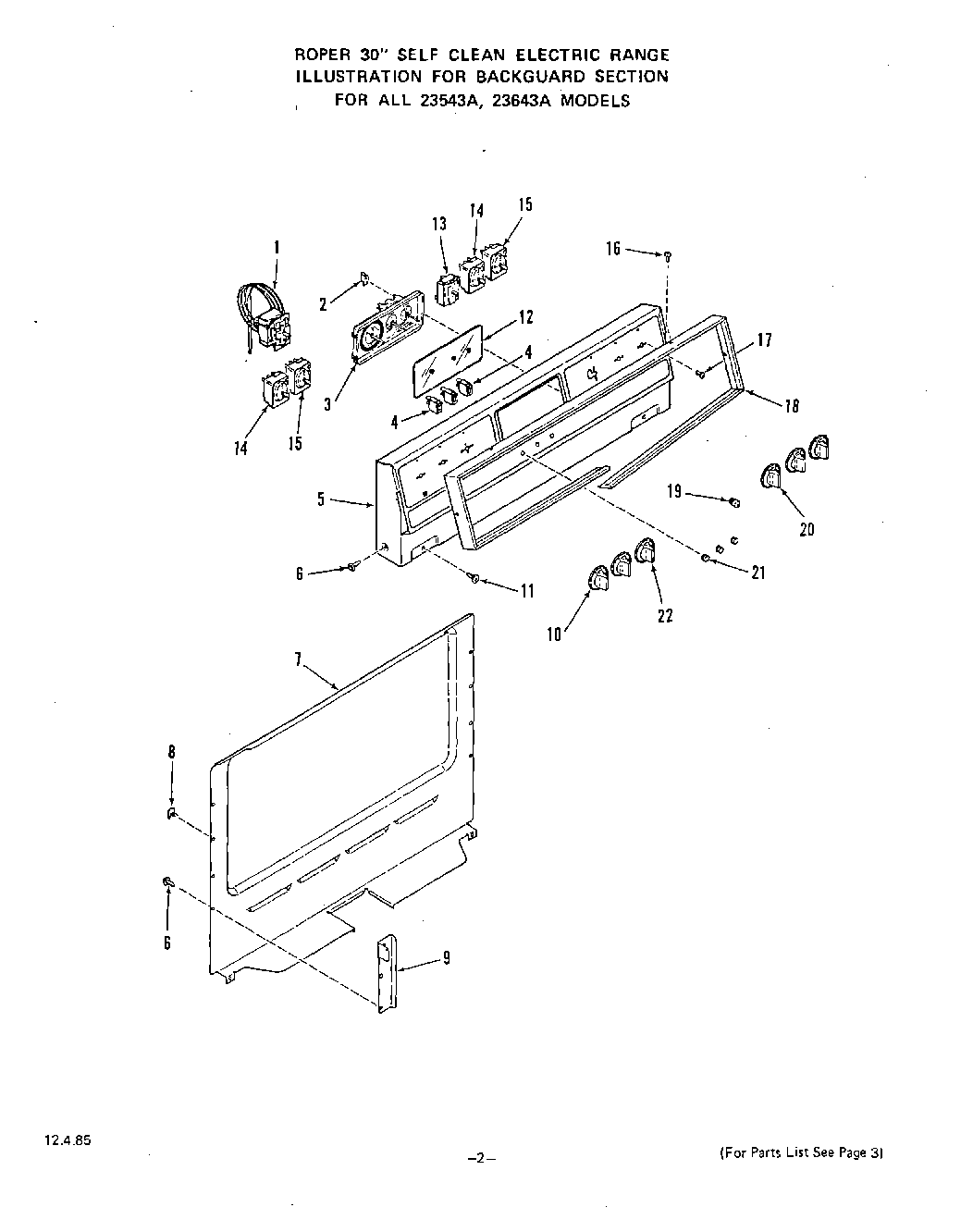

2364^3A 03 – BACKGUARD

Products

Position	Product
1	Oven Thermostat
2	Clip-Clock (4 Req)
3	WPL 333049
4	Indicator Light
4	Oven
4	Indicator Light
5	White
5	Almond
5	Toast
5	Platinum
5	Black
5	Panel-Backguard
6	Screw 10-16×7/16“
7	Cover-Backguard Wire
8	Clip
9	Support-Backguard
9	Support-Backguard (Right)
9	Support-Backguard (Left)
10	Knob-Infinite Control (4 Req)
11	Screw 10ABx1/2“
12	Clock Glass
13	Selector Switch
14	Infinite Control (Left)
15	Infinite Control (Right)
16	Screw 6-20×3/8“
17	WPL 78565
18	Bezel-Backguard
19	Knob-Clock (Start & Stop Time)
20	Knob-Selector
21	Lens-Indicator Light
22	Knob-Thermostat
