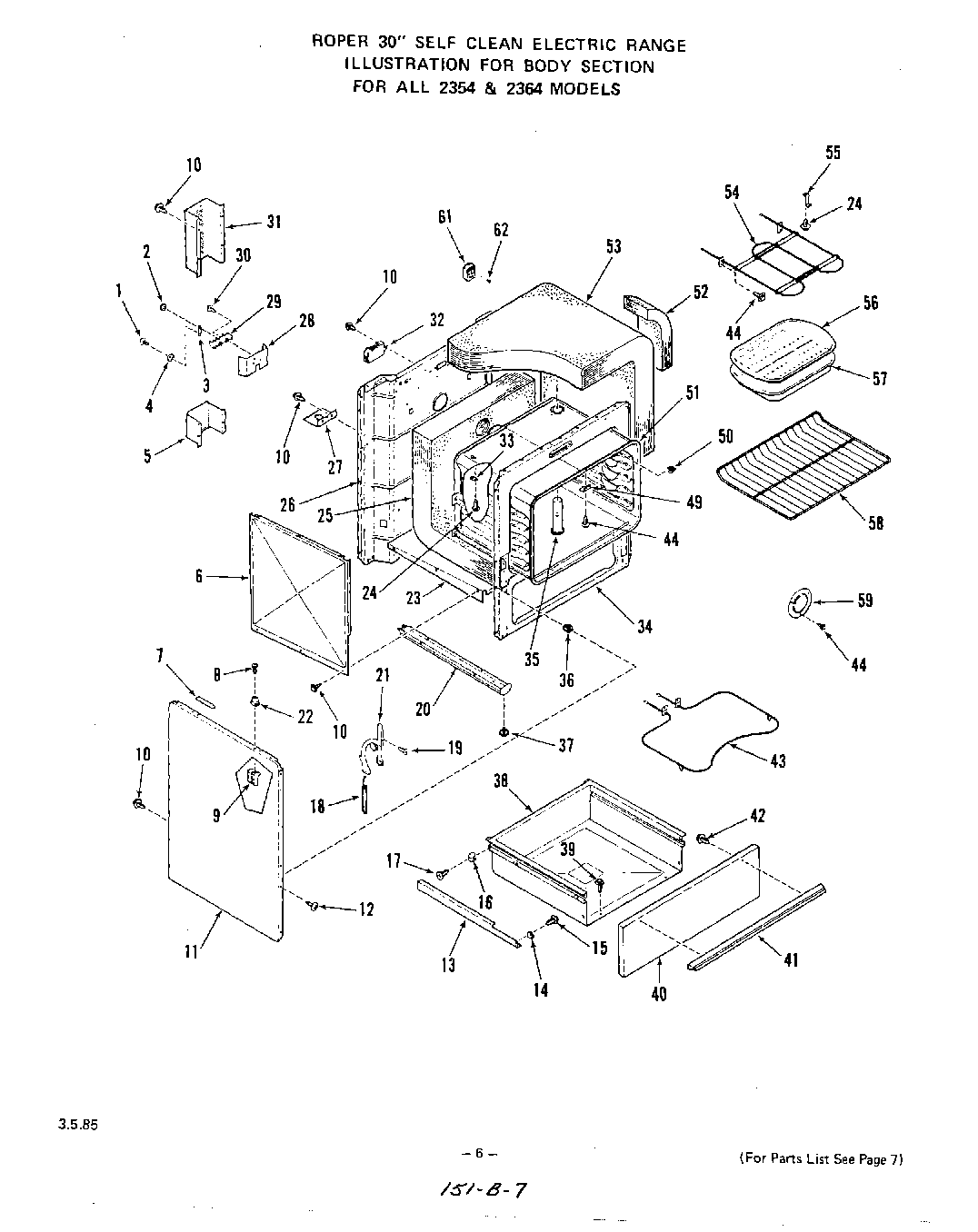

2364W0A 06 – BODY

Products

Position	Product
1	Screw 10-32×7/16“
2	Hex Nut 10-32
3	Ground Strap
4	Washer
5	Wire Shield-Lower
6	Retainer-Insulation (Lt. or Rt.)
7	Spacer-Main Top (2 Req)
8	Screw 6-32×7/8“
9	Bracket-Body Side (Lt. or Rt.)
11	White
11	Body Side (Lt. or Rt.) (Black)
11	Toast
11	Almond
11	Platinum
11	Body Side (Lt. or Rt.)
12	Screw 8ABx5/8“
13	Support-Storage Drawer (Lt. or Rt.)
14	Front Slide Block-(Lt. or Rt.)
15	Screw 10-32×17/32“
16	Rear Slide Block – Lt. or Rt.
17	Screw 8 – 32 x 3/8“
18	Spring-Oven Door (Lt. or Rt.)
18	Spring-Oven Door (Lt. or Rt.)
18	All 2354 Models
19	Screw 10-32 x 5/8“
20	Base w/Levelers (Lt. or Rt.)
21	Hinge-Oven Door
21	Left
21	Right
22	Strike-Main Top (Lt. or Rt.)
23	Retainer-Bottom Insulation
25	Insulation-Oven Back & Bottom
26	Main Back
27	Range Service Mounting Plate
28	Insulation-Service Cord
29	Junction Block
30	Screw 10-32×1“
31	Shield-Upper Wire
32	Oven Relay
33	Cover Plate-Thermostat Bulb
34	Front Frame
34	Front Frame
34	Front Frame
35	Vent Tube
36	BURNER RECEPTACLE KIT
37	Leg Leveler (4 Req)
38	Storage Drawer
39	WPL 316365
40	WPL ARI10456A7
40	WPL 326077
40	WPL 328347
40	WPL 326078
40	WPL 328355
40	WPL 326073
41	Handle-Broiler Door
42	WPL 295850
43	WPL 325883
44	Screw 10-16×7/16“
49	Cover
50	Thermostat Bulb-Retainer (2 Req)
51	WPL 331578
51	WPL ARI10457A3
51	WPL 325766
52	WPL 303097
53	Insulation-Oven Top & Sides (1 Piece)
54	WPL 326360
55	Support-Broiler Element
56	WPL 293099
57	WPL 293098
58	Oven Rack (2 Req)
59	WPL 326935
61	Fixed Input Control
62	WPL 78565
