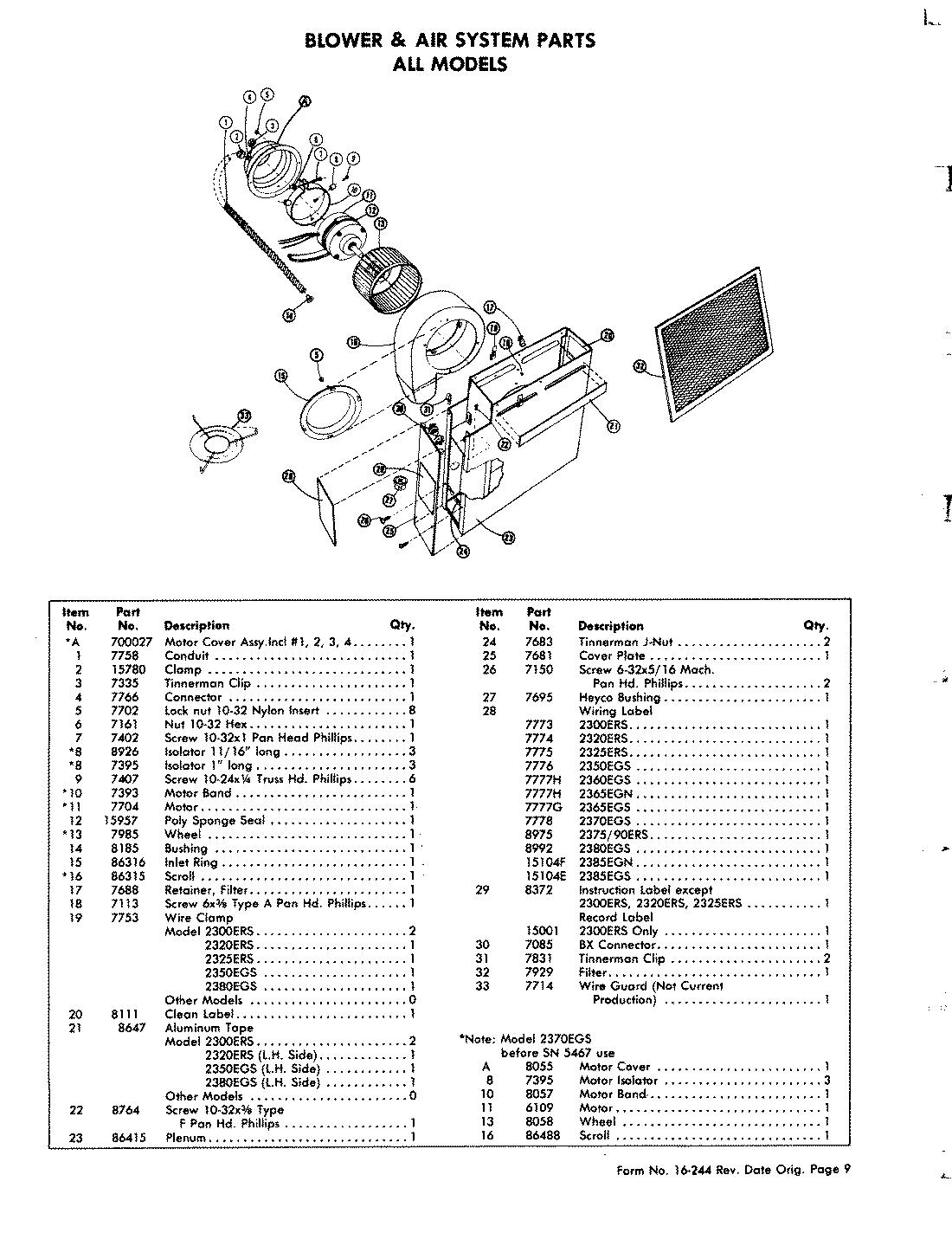

2365EGS 01 – BLOWER ASSEMBLY

Products

Position	Product
1	MAY 700027
1	MAY Y707758
2	MAY 715780
3	MAY Y707335
4	MAY 707766
5	WPY707702 Whirlpool Locknut
6	MAY 707161
7	MAY Y707402
8	MAY Y707395
8	MAY Y708926
10	MAY Y707393
11	MAY Y707704
12	MAY Y715957
13	WPY707985 Whirlpool Wheel Assembly
14	MAY 708185
15	RING, INLET (WITH STUDS)
16	MAY Y786315
17	MAY Y707688
18	MAY Y707113
20	MAY 708111
21	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
22	MAY 708764
23	MAY Y786415
24	MAY 707683
25	MAY Y707681
26	MAY Y707150
27	MAY Y707695
28	MAY 707777
29	MAY 708372
30	MAY 707085
31	MAY Y707831
32	WP707929 Whirlpool Grease Filter
33	MAY 707714
