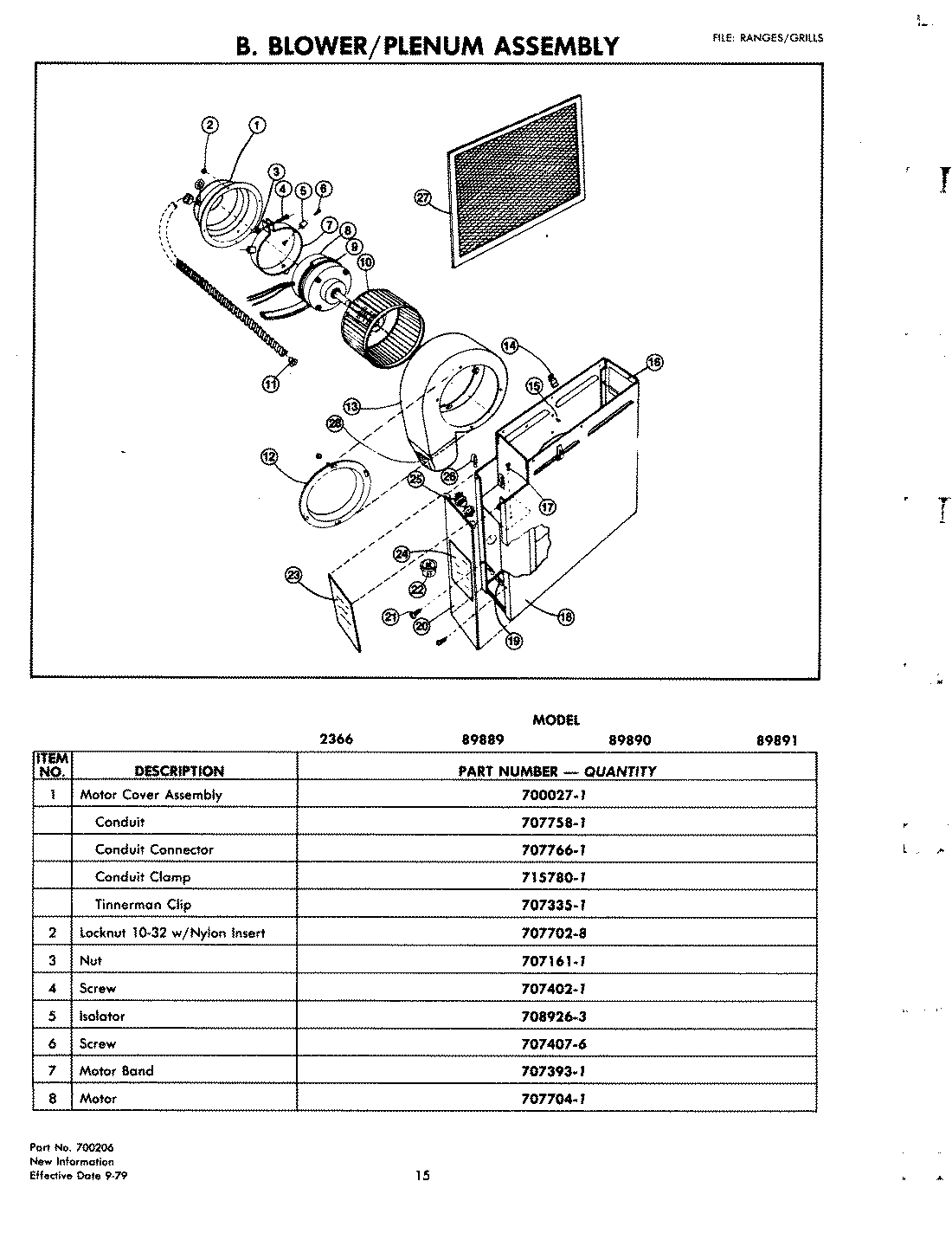

2366 01 – BLOWER ASSEMBLY

Products

Position	Product
1	MOTOR COVER ASSEMBLY
1	CONNECTOR
1	CLIP
1	CLAMP, CABLE
1	CONDUIT
2	WPY707702 Whirlpool Locknut
3	NUT
4	SCREW
5	WP71003558 Whirlpool Isolator
6	SCREW
7	3415F003-51 Whirlpool Motor Band
8	707704K Whirlpool Range Blower Fan Motor Kit
9	FOAM, URETHANE
10	WPY707985 Whirlpool Wheel Assembly
11	BUSHING
12	Top Burner, R.R.
13	SCROLL
14	RETAINER, FILTER
15	WP59002061 Whirlpool Microwave Screw
16	CLEANING LABEL
17	WP179051 Whirlpool Screw
18	PLENUM ASSY
19	NUT
20	PLATE, COVER
21	SCREW
22	BUSHING
23	WIRE LABEL
24	LABEL
25	CONNECTOR, CONDUIT
26	CLIP
27	WP707929 Whirlpool Grease Filter
28	CAUTION LABEL
