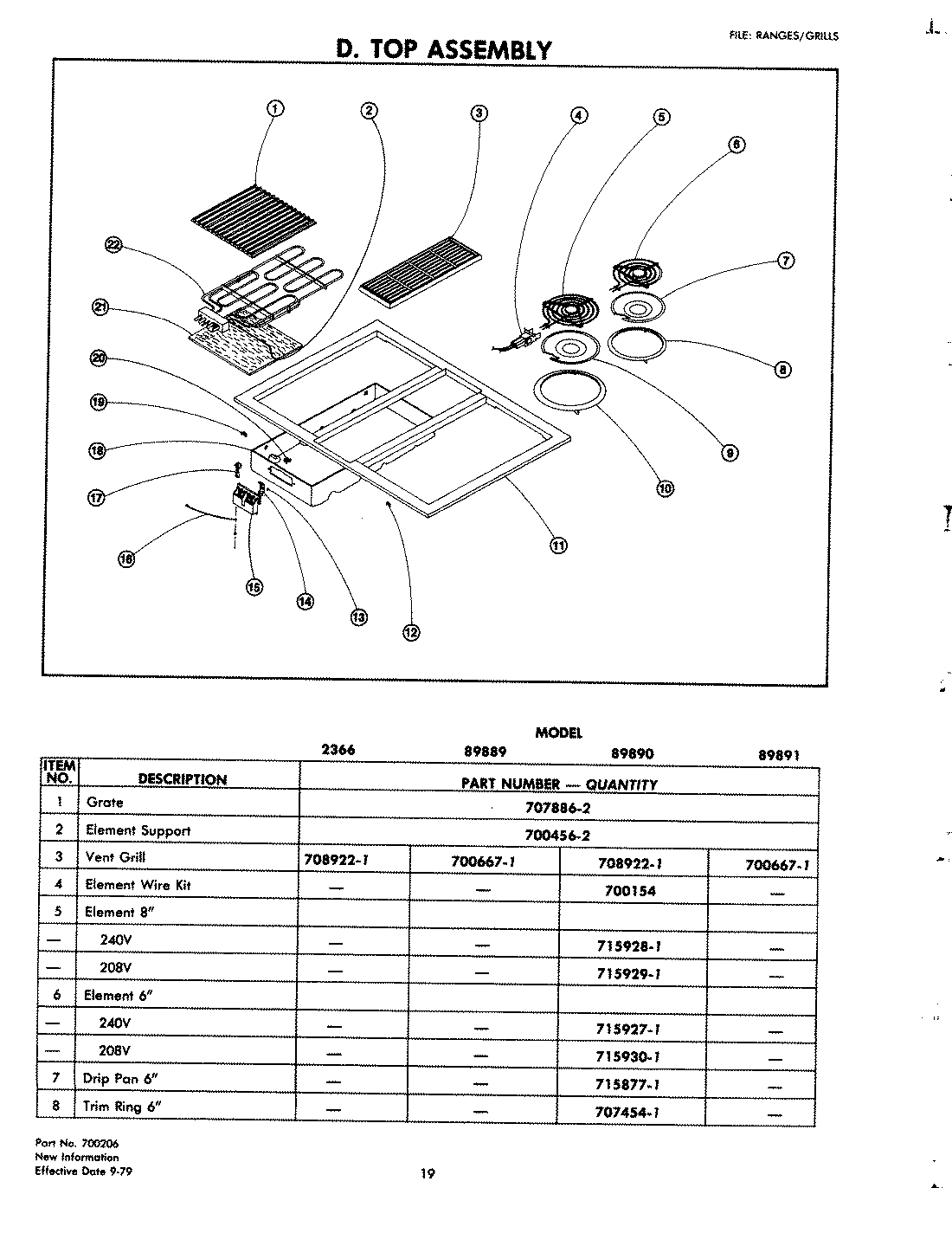

2366 04 – TOP ASSEMBLY

Written by

Products

Position	Product
1	GRATE
2	700819 Whirlpool Oven Element Support
3	VENT GRILL
11	TOP 2366
13	WP59002061 Whirlpool Microwave Screw
14	74004835 Whirlpool Clip
15	RECEPTACLE
17	WP489128 Whirlpool Refrigerator Screw
17	RECEPTACLE CONTACTS
18	GRILL PAN
19	WP90767 Whirlpool Screw
20	CLIP, RETAINER
21	PLATE, ROCK
22	ELEMENT, GRILL
22	GRILL ELEMENT ASSEMBLY
