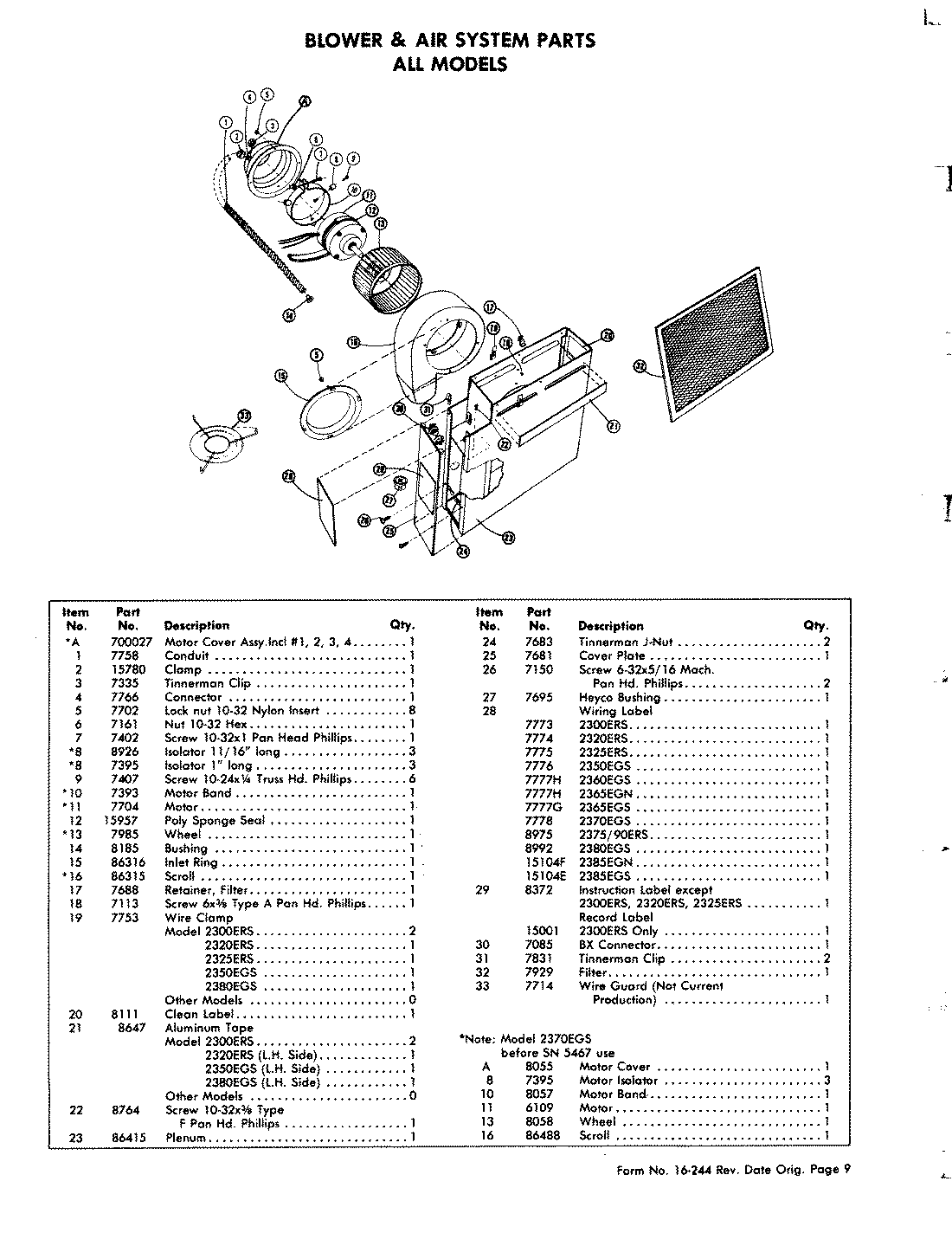

2370 01 – BLOWER & AIR SYSTEM PARTS

Products

Position	Product
1	MOTOR COVER ASSEMBLY
1	CONDUIT
2	CLAMP, CABLE
3	CLIP
4	CONNECTOR
5	WPY707702 Whirlpool Locknut
6	NUT
7	SCREW
8	WP71003558 Whirlpool Isolator
8	ISOLATOR MOTOR
9	SCREW
10	3415F003-51 Whirlpool Motor Band
11	707704K Whirlpool Range Blower Fan Motor Kit
12	FOAM, URETHANE
13	WPY707985 Whirlpool Wheel Assembly
14	BUSHING
15	Top Burner, R.R.
16	SCROLL
17	RETAINER, FILTER
18	WP59002061 Whirlpool Microwave Screw
20	CLEANING LABEL
22	WP179051 Whirlpool Screw
23	PLENUM
24	NUT
25	PLATE, COVER
26	SCREW
27	BUSHING
29	INSTRUCTION LABEL
30	CONNECTOR, CONDUIT
31	CLIP
32	WP707929 Whirlpool Grease Filter
33	AIR GRILL
