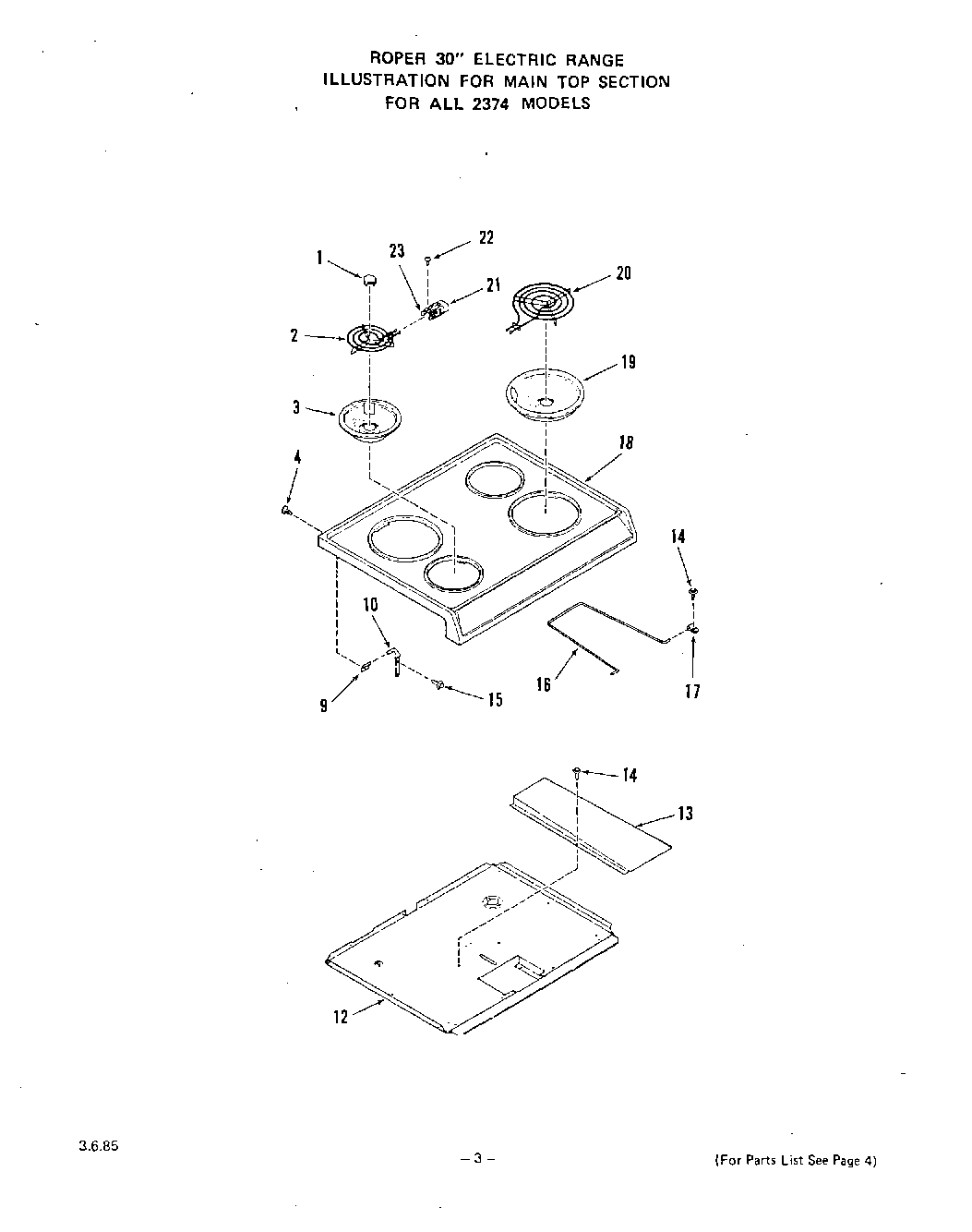

2374^2A 03 – MAIN TOP

Products

Position	Product
1	Medallion (2 Req) All 2101 Models
2	6“ Surface Element (1 Req) All 2101 Models
3	6“ Burner Bowl (1 Req) All 2101 Models
4	Screw 10ABx1/2“
9	Bracket-Main Top Hinge (2 Req)
10	Right
10	Hinge-Main Top
10	Left
12	Bottom-Burner Box
12	Bottom-Burner Box
12	Burner Box Bottom
13	Switch, Fluorescent Light
14	Screw 10-16×7/16“
15	WPL 321162
16	Support Rod-Main Top
17	Clip
18	Main Top
18	Golden Wheat
18	Almond
18	White
19	8“ Burner Bowl (1 Req) All 2101 Models
20	8“ Surface Element (1 Req) All 2101 Mod.
21	Term. Block w/Leads-All 2101 Models
22	Screw 7-32×5/16“(2 Req) All 2101 Models
23	Bracket-Term. Block (2 Req) All 2101 Mod.
