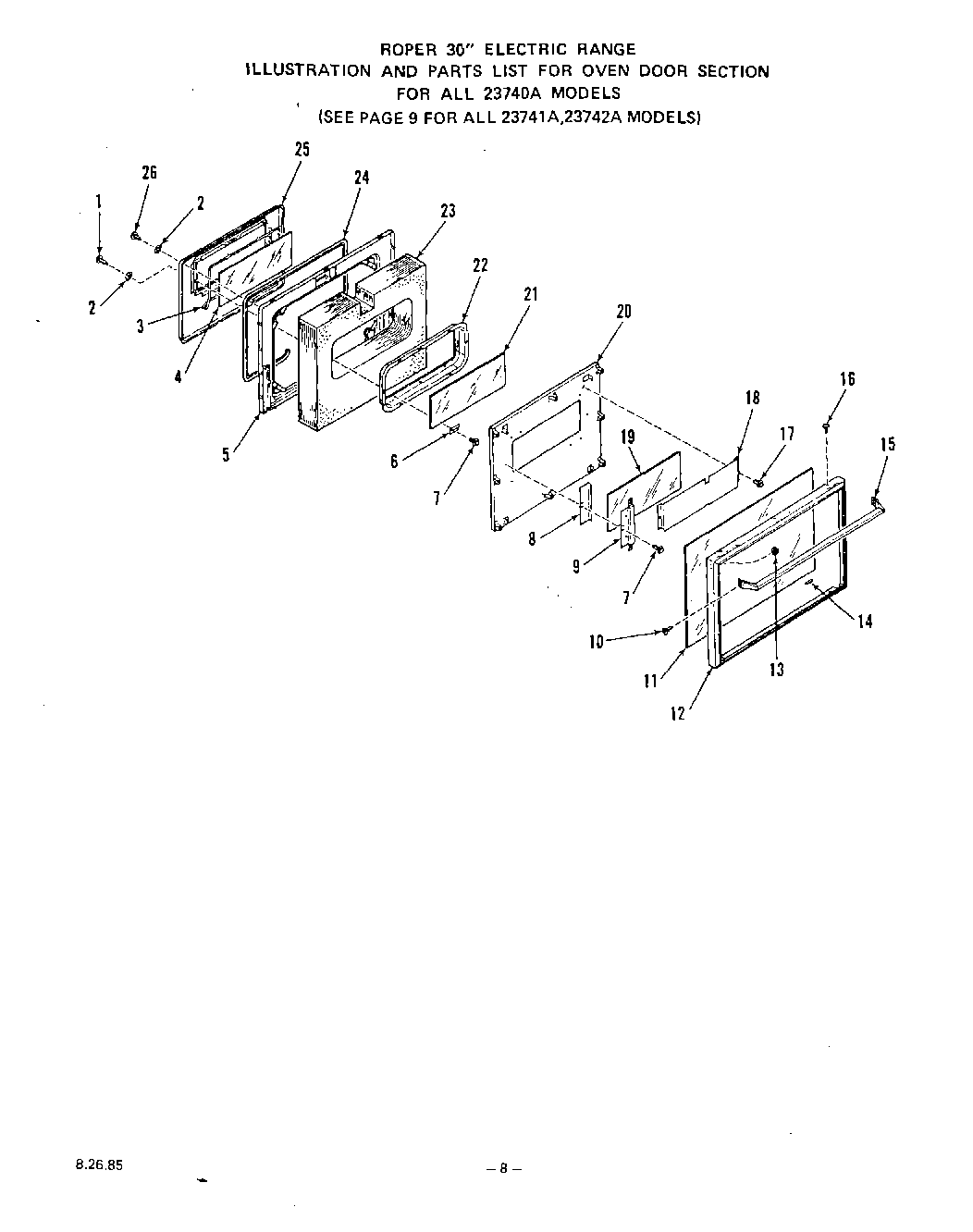

2374^2A 07 – OVEN DOOR

Products

Position	Product
1	Screw 10ABx1
2	WPL 21067
3	Seal-Oven Door
4	Inner Glass-Oven Door
5	Lining-Oven Door
6	Retainer-Door Glass
7	Screw 10-16×7/16“
8	Spacer-Oven Door Glass (Lt. or Rt.)
9	WP487353 Whirlpool Refrigerator Screw
10	Screw 8-32 x 1/2“
11	outer glass-oven door
12	Frame-Oven Door
13	Keps Nut 8-32
14	Cushion-Door Glass
15	Handle-Oven Door
16	Screw-10-32×1/2“
17	Screw 10 – 32 x 1/4“
18	Baffle-Insulation Retainer
19	Intermediate Glass-Oven Door
20	Retainer-Oven Door Insulation
21	Center Glass-Oven Door
22	Retainer-Oven Door Glass
23	Insulation-Oven Door
24	Gasket-Oven Door
25	Plug-Oven Door Lining
26	Screw 10-32 x 1/2“
