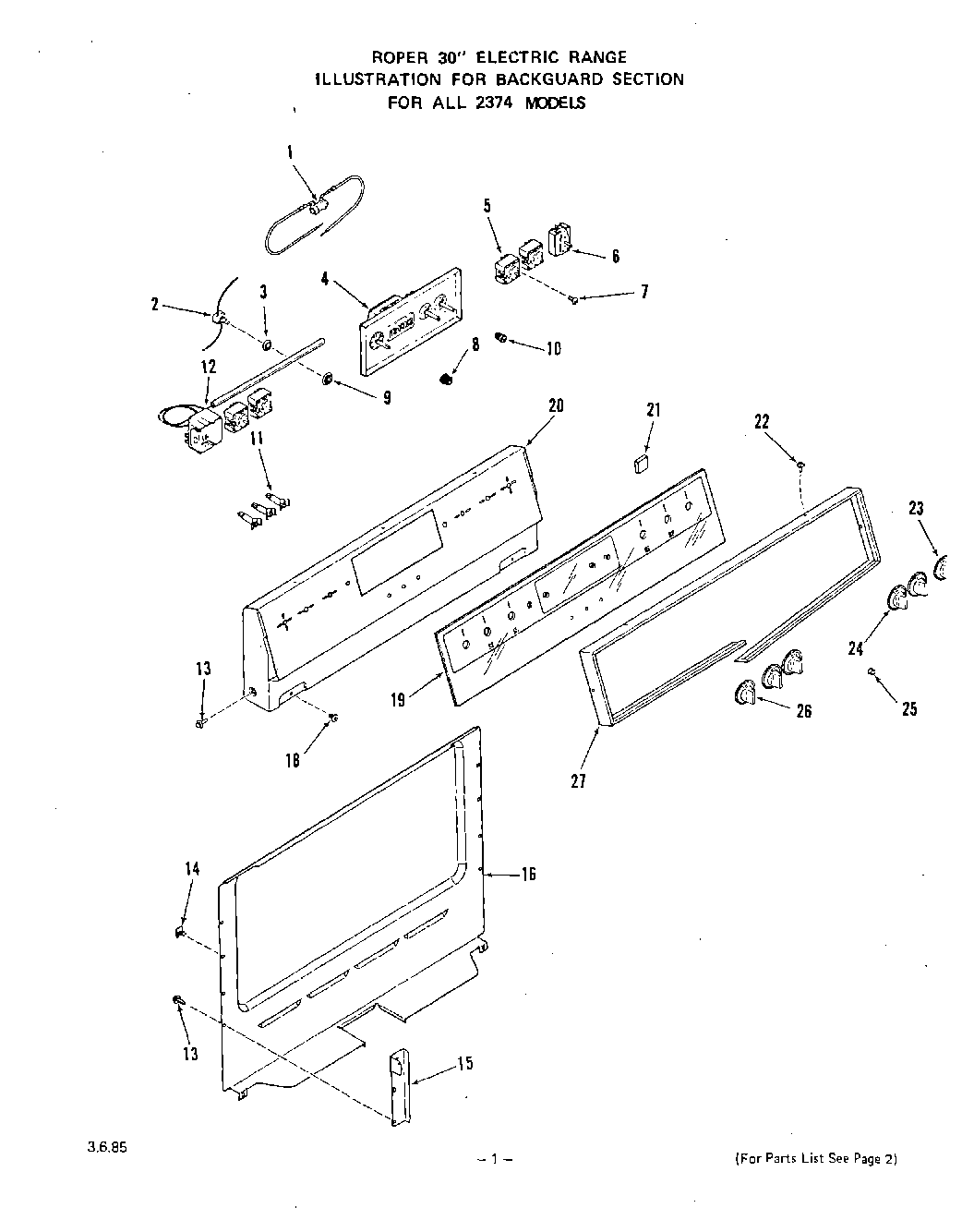

2374W0A 02 – BACKGUARD

2374W0A 02 – BACKGUARD

Written by

in

2374W0A 02 – BACKGUARD

Products

PositionProduct
1Wire Lead w/Resistor
2Push Switch – Oven Light
3Lock Nut
4All 2224 & 2244 Models
5WPL 320944
5Right Front & Left Rear
5Infinite Control
5Left Front & Right Rear
6Selector Switch
7WPL 78565
8Knob-Clock
9Nut-Trim 3/8-27
10Knob-Clock (Start & Stop Time)
11Indicator Light
12Thermostat
13Screw 10-16×7/16“
14Clip
15Support-Backguard (Right)
15Support-Backguard (Left)
15Support-Backguard
16Cover-Backguard Wire
18Screw 10ABx1/2“
19Top Lamp Glass
20White
20Golden Wheat
20Almond
20Crosstie-Backguard
21Space
22Screw 6-20×3/8“
23Knob-Selector
24Knob-Infinite Control
25Lens-Indicator Light
26Knob-Thermostat
27Bezel-Backguard
