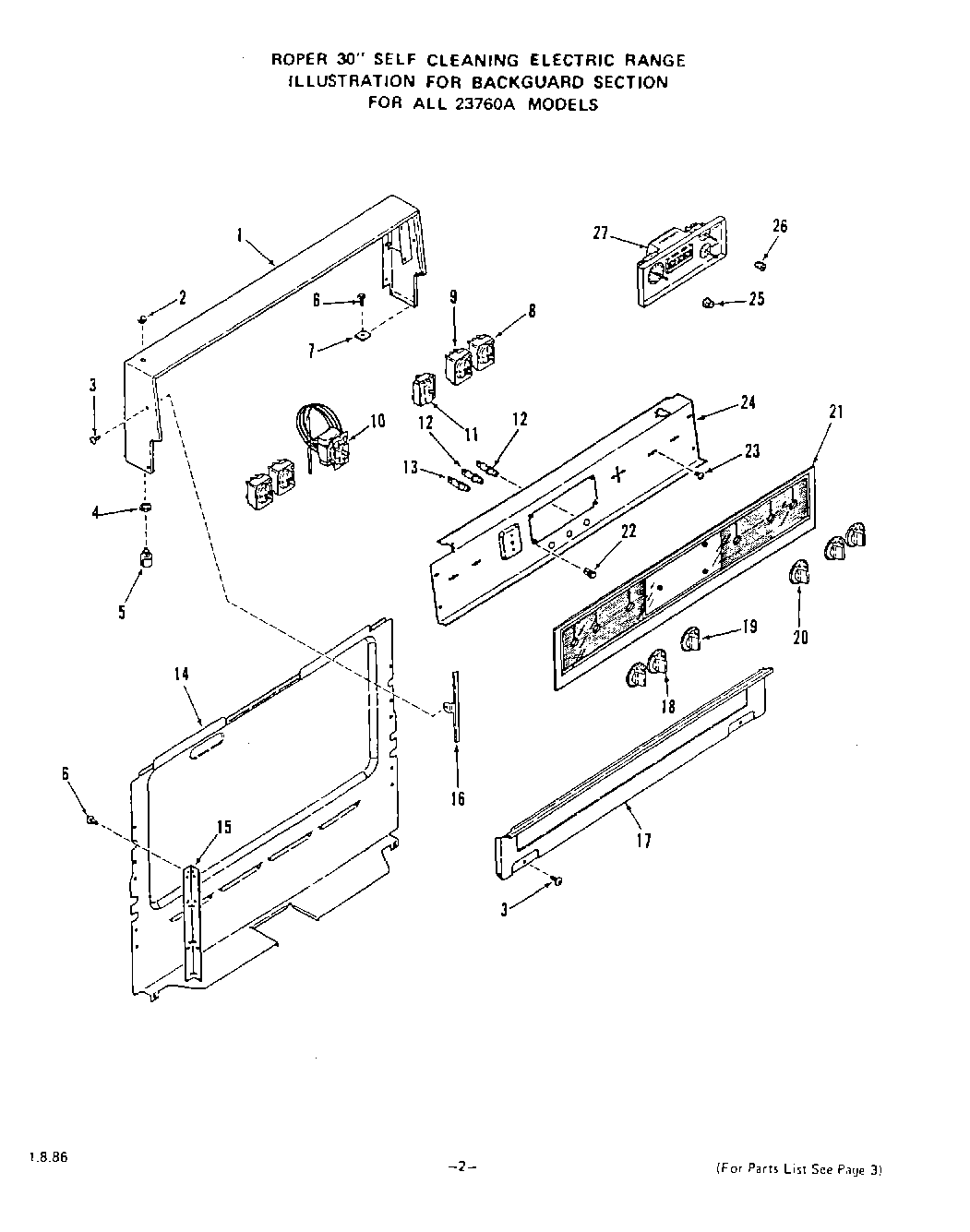

2376W0A 03 – MAIN TOP

Products

Position	Product
1	Frame-Backguard
2	Knurled Nut
3	Screw 6-20×3/8“
4	Lock Nut
5	Push Switch-Oven Light
6	Screw 10-16×7/16“
7	Plate All 16331A,2A Models
8	Right Front & Left Rear
9	Left Front & Right Rear
10	Oven Thermostat
11	Selector Switch
12	Indicator Light
13	Indicator Light
14	Wire Cover-Backguard
15	Support-Backguard (Lt. or Rt.)
16	End Trim- Top Lamp Glass (Lt. or Rt.)
17	Backguard Front-Bottom
18	Knob-Infinite Switch (4 Req)
19	Knob-Thermostat
20	Knob-Selector Switch
21	Glass-Backguard
22	Tubular Clip (4 Req.)
23	WPL 78565
24	Panel-Control Mounting
25	Knob-Clock
26	Knob-Clock (Start & Stop Time)
27	Clock w/1 Hr. Timer
