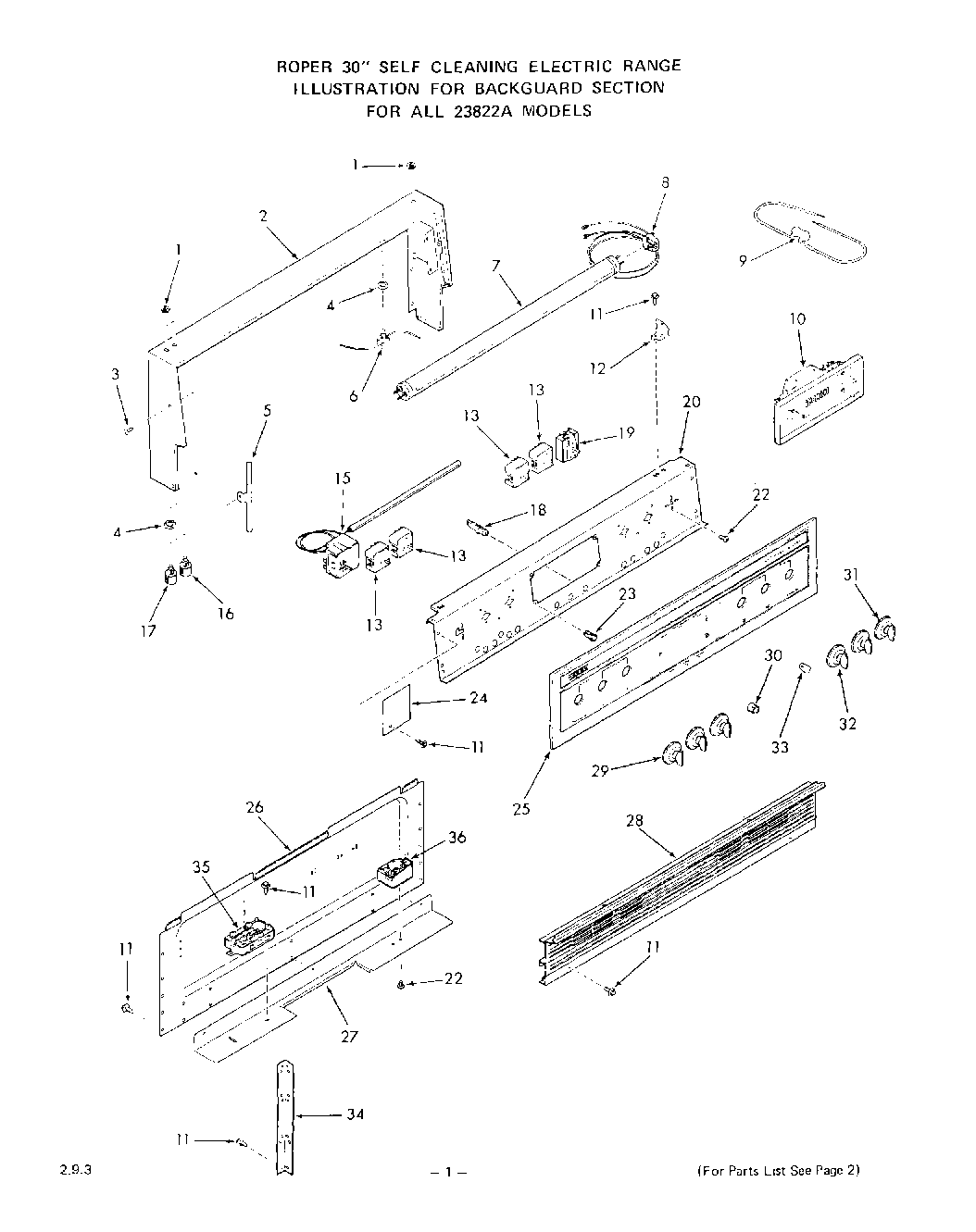

2382^2A 02 – BACKGUARD

Products

Position	Product
1	Knurled Nut
2	Frame-Backguard
3	Screw 6-32×3/8“
4	Lock Nut
5	End Trim- Top Lamp Glass (Lt. or Rt.)
6	Push Switch (Lock-Unlock)
7	Fluorescent Lamp (20 W – 24“)
8	Holder-Fluorescent Lamp (Left)
8	Holder-Fluorescent Lamp (Right)
9	Wire Lead w/Resistor (10K,4-5 Watt)
10	Clock w/1 Hr. Timer
11	WP112432 Whirlpool Nut Assembly
12	Bracket-Fluorescent Lamp (Rt. or Lt.)
13	WPL 320944
15	Thermostat
16	Push Switch-Fluorescent Lamp
17	Push Switch-Oven Light
18	Indicator Light
19	Selector Switch
20	Control Panel
22	WPL 78565
23	Tubular Clip (4 Req.)
24	Cover-Switch Shield
25	Top Lamp Glass
26	Wire Cover-Backguard
27	Bottom-Backguard Wire Cover
28	Bottom Front-Backguard
29	Knob-Oven Thermostat
30	Knob-Clock
31	Knob-Selector Switch
32	Knob-Infinite Control (4 Required)
33	Knob-Clock (Start & Stop Time)
34	Support-Backguard (Lt. or Rt.)
35	Oven Relay
36	Fixed Input Control
