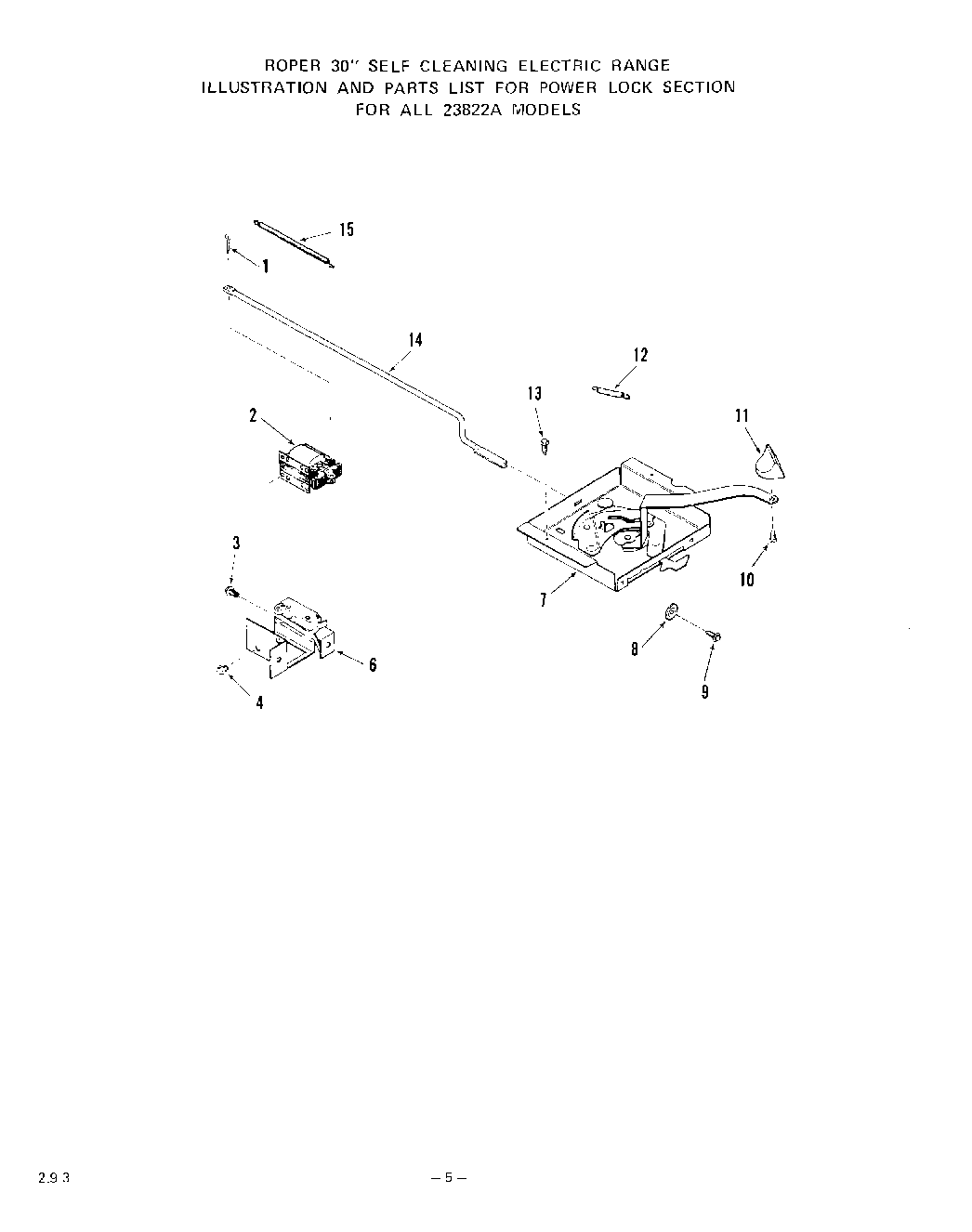

2382^2A 04 – POWER LOCK

2382^2A 04 – POWER LOCK

Written by

in

2382^2A 04 – POWER LOCK

Products

Position	Product
1	Cotter Pin
2	Solenoid Only
3	WPL 295850
4	Mounting Screw
6	Bracket w/Switch
7	Oven Door Lock Asem. (Inc. Key 12)
8	Washer
9	WPL 316365
10	Screw 6-32×15/32“
11	Knob-Lock Handle
12	Spring-Lock Handle
13	Screw 10-32×17/32“
14	Rod-Oven Door Lock
15	Spring-Solenoid
