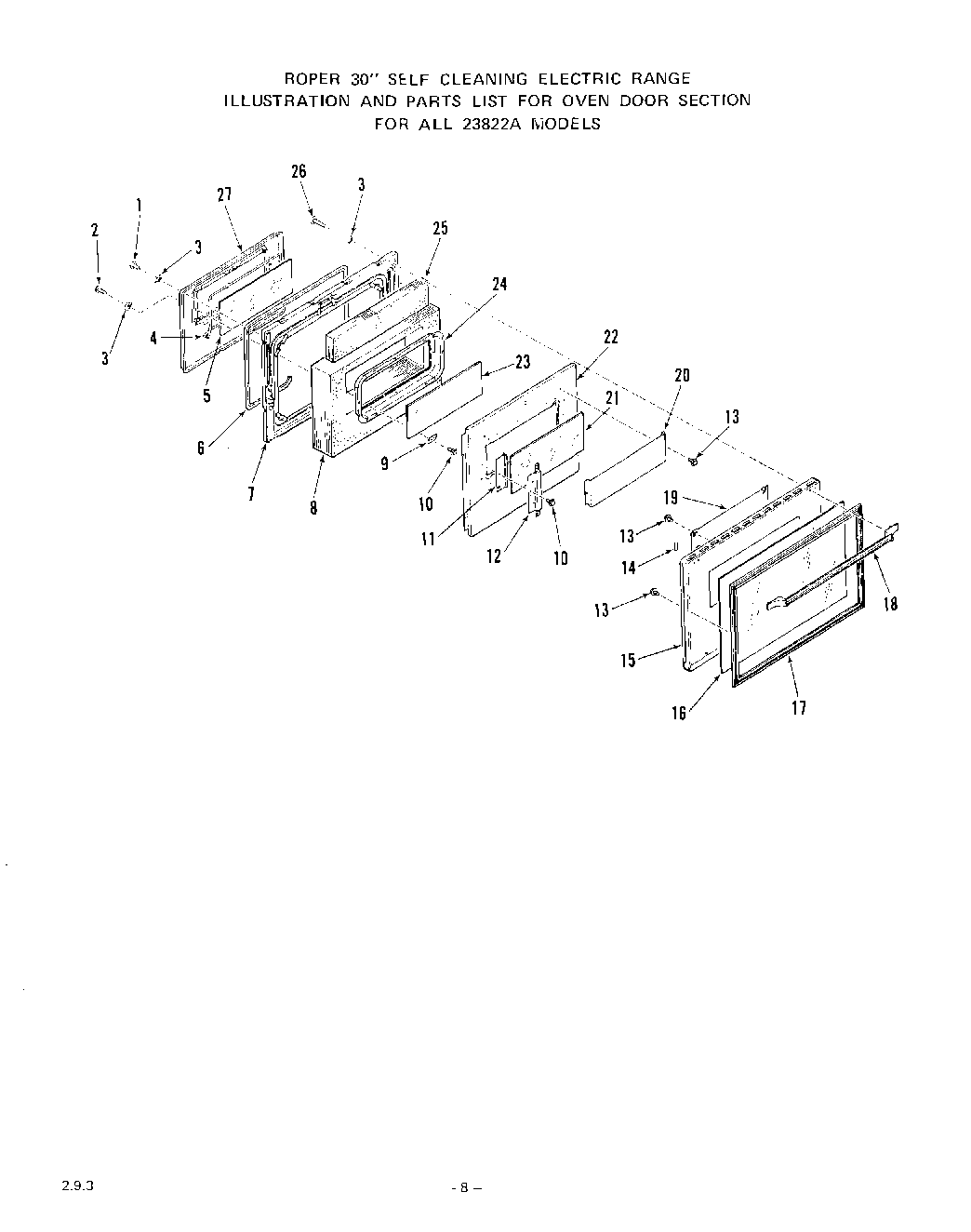

| 1 | Screw 10-32 x 1/2`` |
| 2 | Screw 10ABx1 |
| 3 | WPL 21067 |
| 4 | Seal-Oven Door |
| 5 | Inner Glass-Oven Door |
| 6 | Gasket-Oven Door |
| 7 | Lining-Oven Door |
| 8 | WP660532 Whirlpool Oven Surface Element |
| 9 | Door Glass Retainer (4 Req) |
| 10 | WP112432 Whirlpool Nut Assembly |
| 11 | Spacer-Oven Door Glass (Lt. or Rt.) |
| 12 | WP487353 Whirlpool Refrigerator Screw |
| 13 | Screw 10 - 32 x 1/4`` |
| 14 | Cushion-Door Glass |
| 15 | Front Panel-Oven Door |
| 16 | Outer Door Glass |
| 17 | Frame-Oven Door |
| 18 | Handle-Oven Door |
| 19 | Shield-Oven Door Lining |
| 20 | Baffle-Insulation Retainer |
| 21 | Oven Door Glass-Intermediate |
| 22 | Retainer-Oven Door Insulation |
| 23 | Oven Door Glass-Inner |
| 24 | Retainer-Oven Door Glass |
| 25 | Insulation-Oven Door (Top) |
| 26 | Screw 10-32x2 1/2`` |
| 27 | Selector Switch |
| 27 | Main Top |
| 27 | Plug-Oven Door Lining |
| 27 | Controls |
