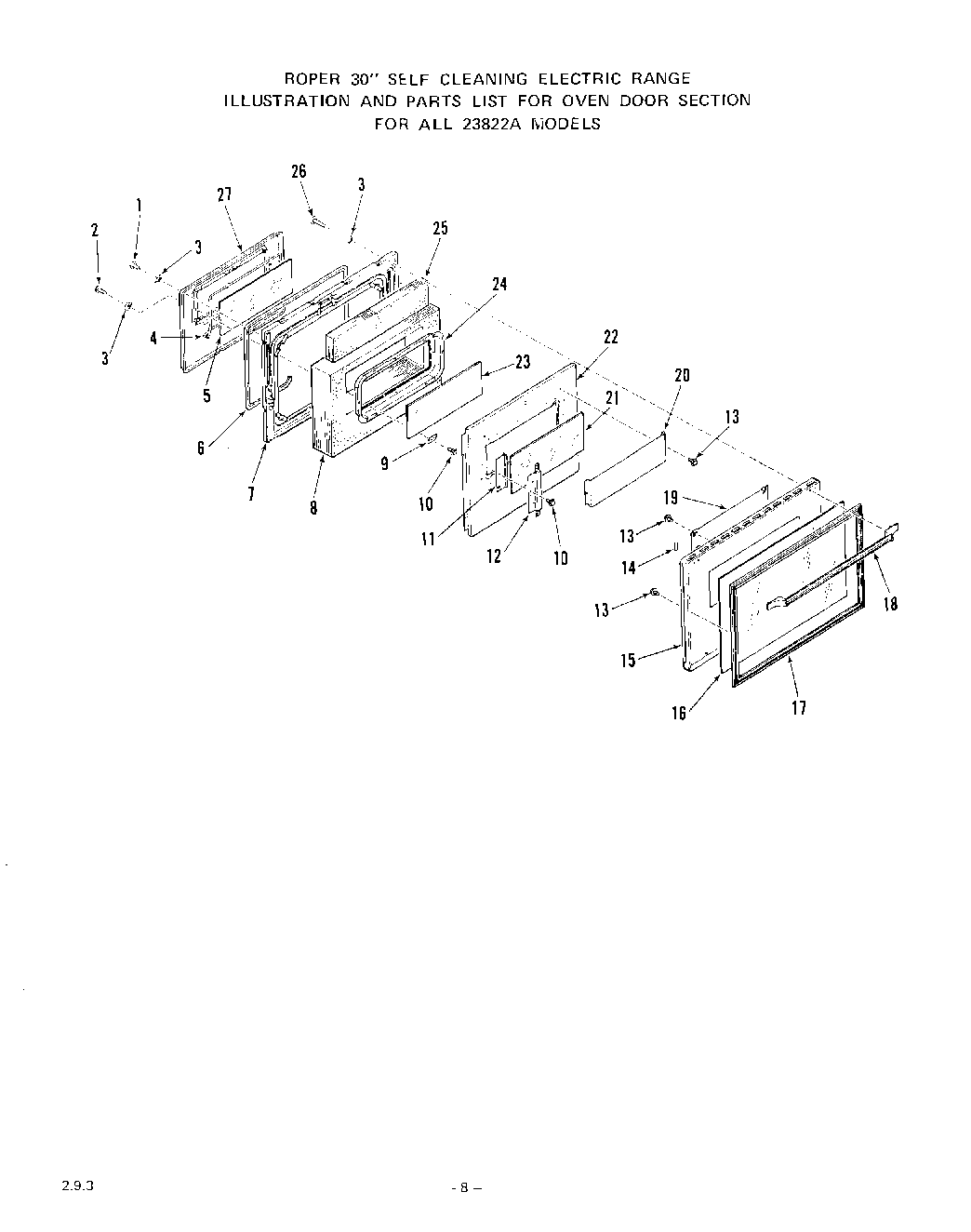

2382W2A 06 – OVEN DOOR

Products

Position	Product
1	Screw 10-32 x 1/2“
2	Screw 10ABx1
3	WPL 21067
4	Seal-Oven Door
5	Inner Glass-Oven Door
6	Gasket-Oven Door
7	Lining-Oven Door
8	WP660532 Whirlpool Oven Surface Element
9	Door Glass Retainer (4 Req)
10	WP112432 Whirlpool Nut Assembly
11	Spacer-Oven Door Glass (Lt. or Rt.)
12	WP487353 Whirlpool Refrigerator Screw
13	Screw 10 – 32 x 1/4“
14	Cushion-Door Glass
15	Front Panel-Oven Door
16	Outer Door Glass
17	Frame-Oven Door
18	Handle-Oven Door
19	Shield-Oven Door Lining
20	Baffle-Insulation Retainer
21	Oven Door Glass-Intermediate
22	Retainer-Oven Door Insulation
23	Oven Door Glass-Inner
24	Retainer-Oven Door Glass
25	Insulation-Oven Door (Top)
26	Screw 10-32×2 1/2“
27	Selector Switch
27	Main Top
27	Plug-Oven Door Lining
27	Controls
