2384^1A 05 – POWER LOCK – Aparts

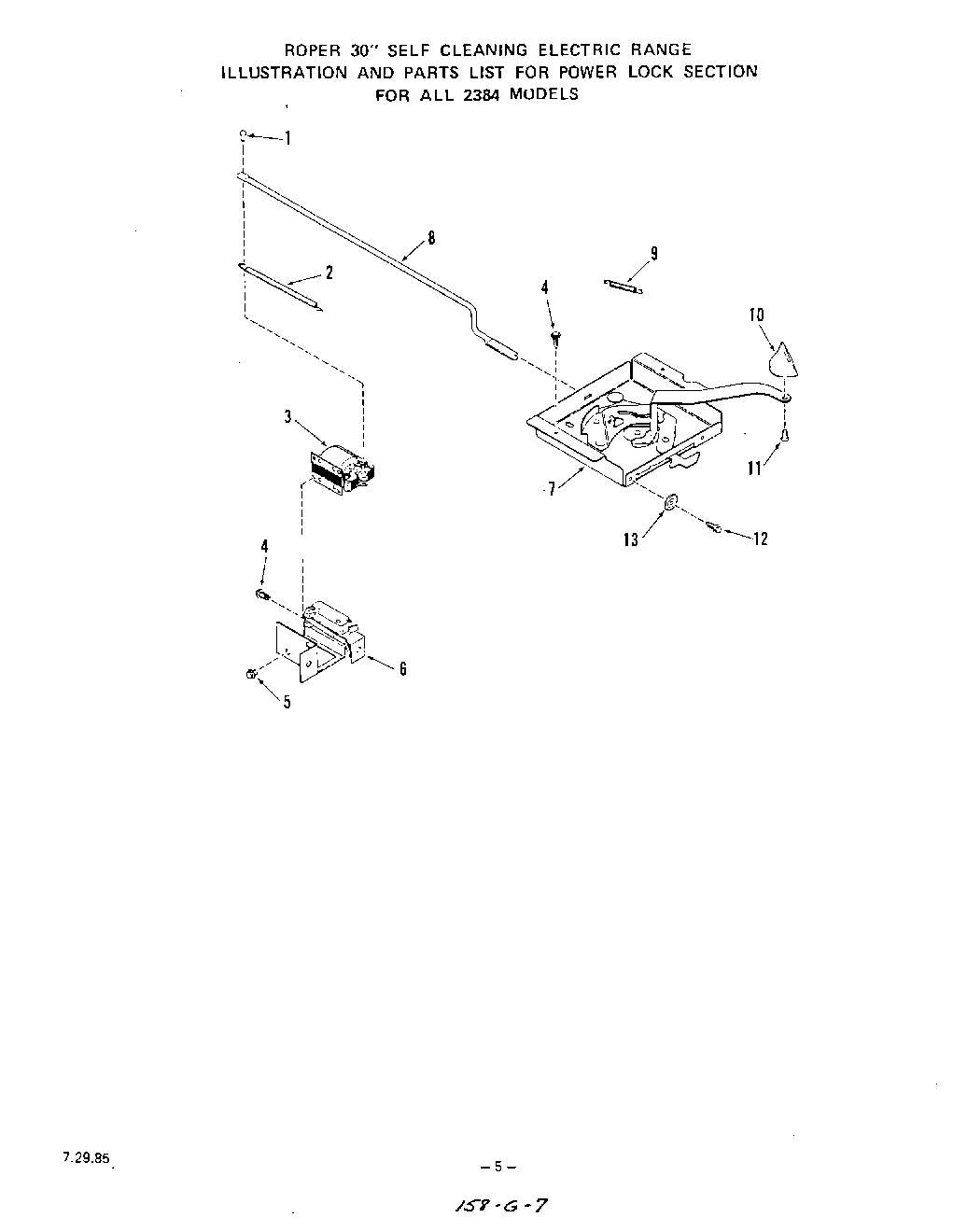

2384^1A 05 – POWER LOCK

Products

Position	Product
1	Stud
2	Spring-Solenoid
3	Solenoid Only
5	Mounting Screw
6	Bracket w/Switch
7	Oven Door Lock Assm. (Inc. Key 9)
8	Switch, Oven Light
9	Spring-Lock Handle
10	Knob-Lock Handle
11	Screw 6-32x15/32``
12	Screw 10-16x7/16``
13	WPL 21067
