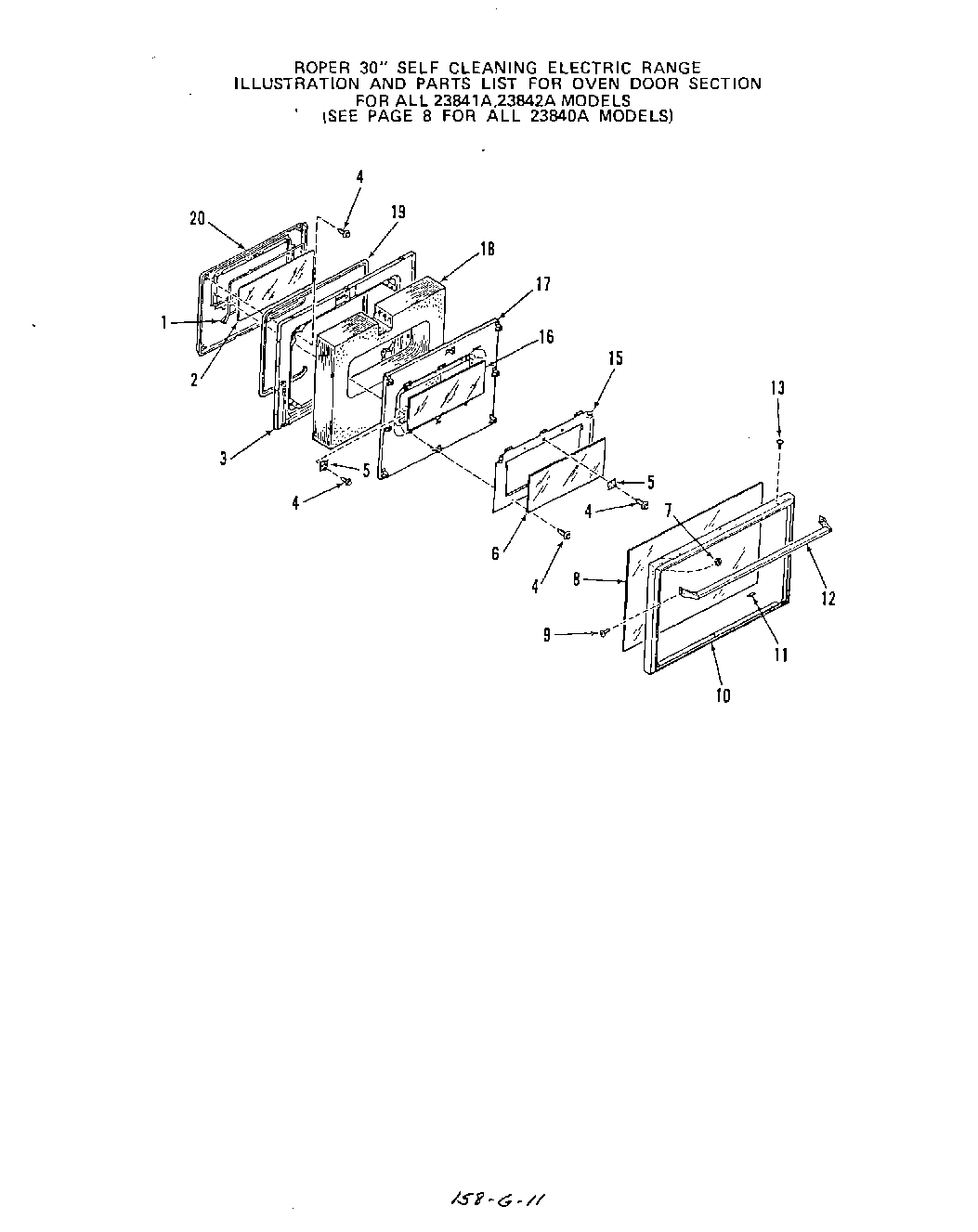

2384^1A 08 – SECTION

Products

Position	Product
	xWire Harness
1	Seal-Inner Glass
2	Inner Glass-Oven Door
3	18850A Models
3	All 23542A Models
3	Lining-Oven Door
4	Screw 10-16×7/16“
5	Retainer-Door Glass
6	Intermediate Glass-Oven Door
7	Keps Nut 8-32
8	outer glass-oven door
9	Screw 8-32 x 1/2“
10	Frame-Oven Door
11	Cushion-Door Glass
12	Handle-Oven Door
13	Screw-10-32×1/2“
15	Mounting Plate-Glass
16	Center Glass-Oven Door
17	Retainer-Oven Door Insulation
18	Insulation-Oven Door
19	Gasket-Oven Door
20	Controls
20	Selector Switch
20	All 23741A Models
20	Plug-Oven Door Lining
20	Main Top
20	Plug-Oven Door Lining
