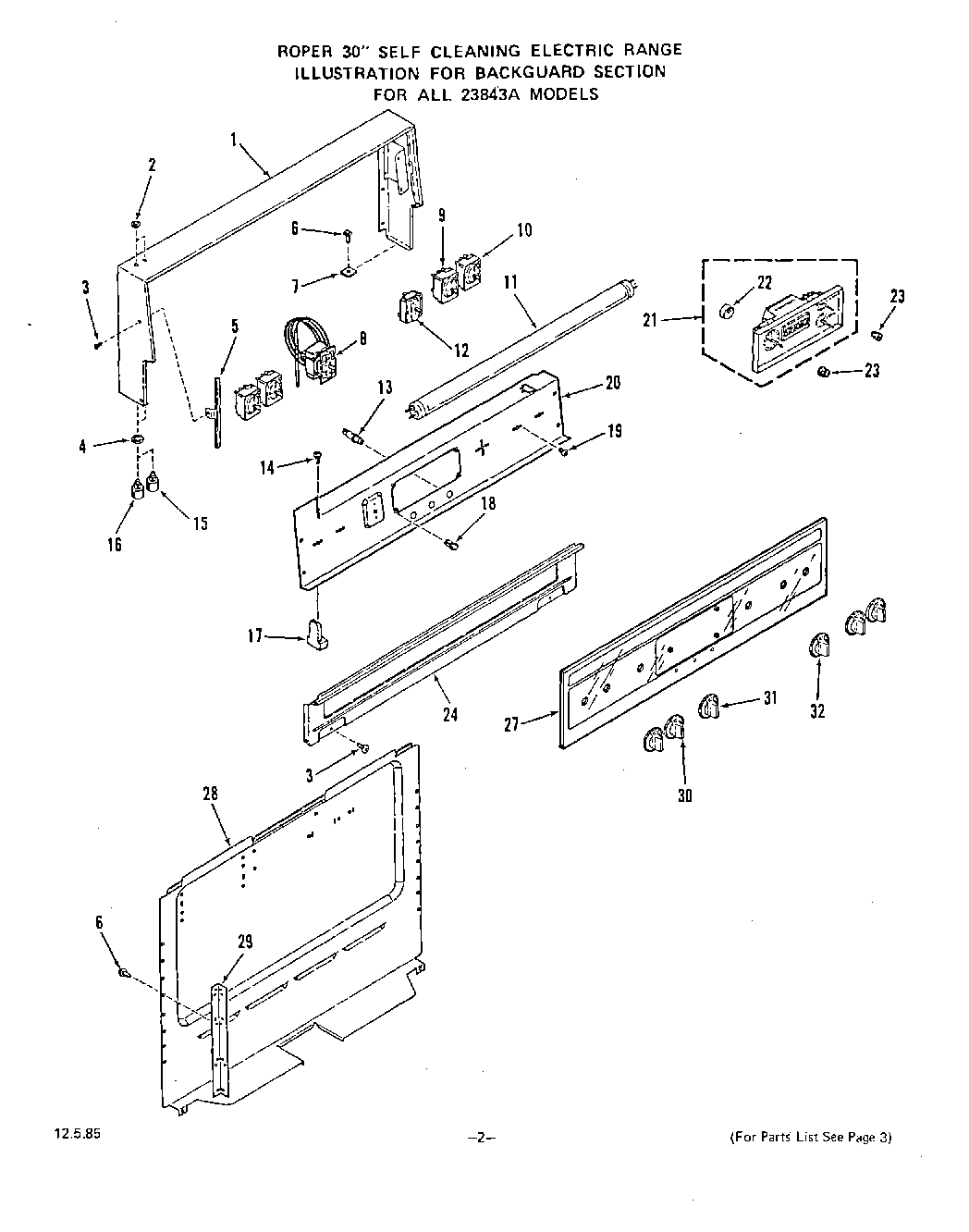

2384^3A 03 – BACKGUARD

Products

Position	Product
1	Frame-Backguard
2	Knurled Nut
3	Screw 6-20×3/8“
4	Lock Nut
5	End Trim- Top Lamp Glass (Lt. or Rt.)
6	Screw 10-16×7/16“
7	Plate All 16331A,2A Models
8	Oven Thermostat
9	Left Front & Right Rear
10	Right Front & Left Rear
11	Fluorescent Lamp (20 W – 24“)
12	Selector Switch
13	Indicator Light
13	Indicator Light
13	Indicator Light
14	Screw 6-32 x 1/2“
15	Push Switch-Fluorescent Lamp
16	Push Switch-Oven Light
17	Holder-Fluorescent Light
18	Tubular Clip (4 Req.)
19	WPL 78565
20	Mounting Panel-Controls
21	Clock w/1 Hr. Timer
22	Clock Motor
23	Clock Knob
23	Knob-Clock (Start & Stop Time)
23	Knob-Clock
24	Backguard Front-Bottom
27	Backguard Glass
28	Cover-Backguard Wire
29	Support-Backguard (Lt. or Rt.)
30	Knob-Infinite Switch (4 Req)
31	Knob-Thermostat
32	Knob-Selector Switch
