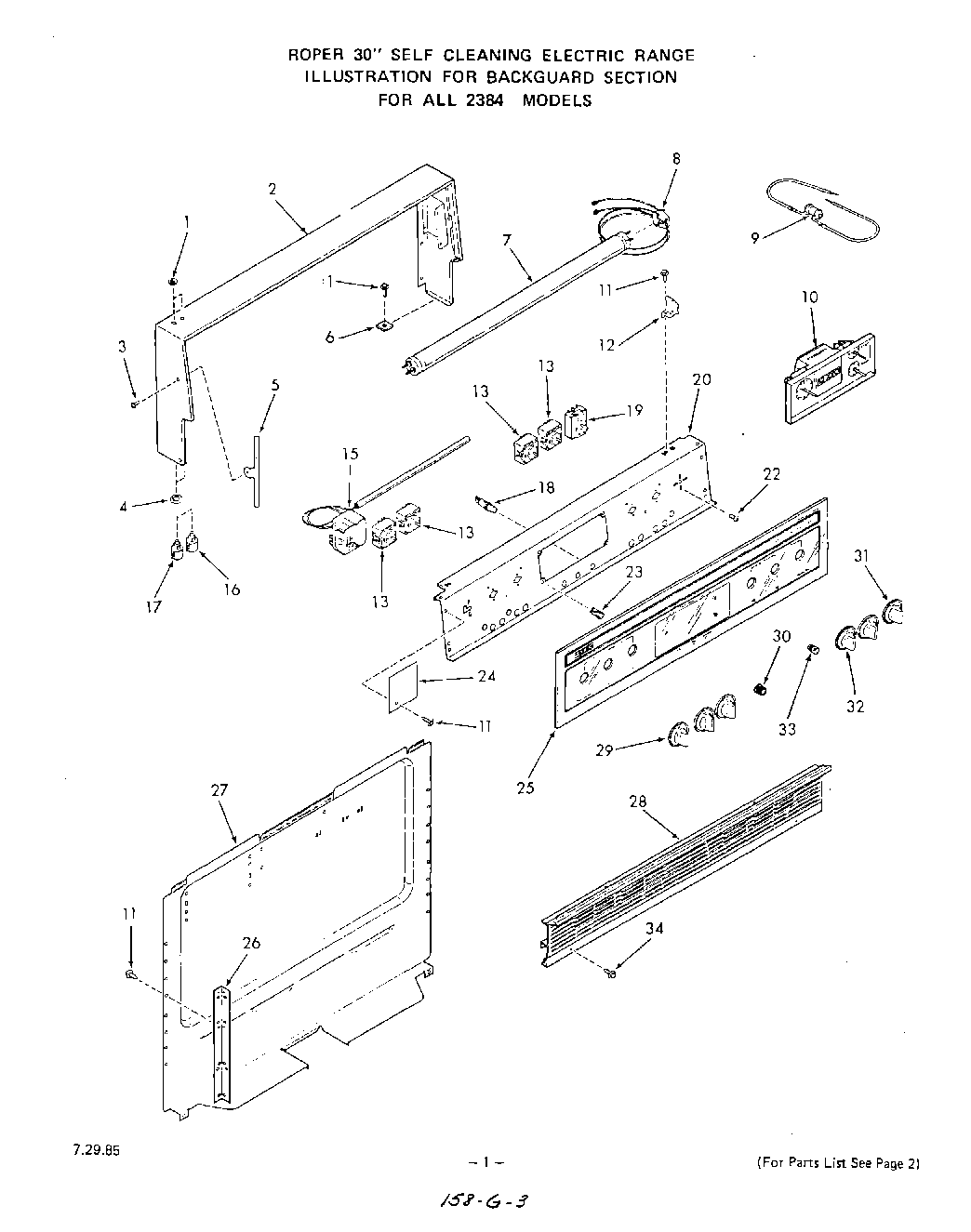

2384W0A 02 – BACKGUARD

Products

Position	Product
1	Knurled Nut
2	Frame-Backguard
4	Lock Nut
5	End Trim- Top Lamp Glass (Lt. or Rt.)
6	Plate All 16331A,2A Models
7	Fluorescent Lamp (20 W – 24“)
8	Holder-Fluorescent Lamp (Left)
8	Holder-Fluorescent Lamp (Right)
8	Holder-Fluorescent Lamp
9	Wire Lead w/Resistor
10	Clock w/1 Hr. Timer
11	Screw 10-16×7/16“
12	Bracket-Fluorescent Lamp (Rt. or Lt.)
13	WPL 320944
13	Control-Infinite
13	Left Front & Right Rear
13	Right Front & Left Rear
15	Thermostat
16	Push Switch-Fluorescent Lamp
17	Push Switch-Oven Light
18	Indicator Light
19	Selector Switch
20	Control Panel
22	WPL 78565
23	Tubular Clip (4 Req.)
24	Shield Switch
25	Glass-Backguard
26	Support-Backguard (Lt. or Rt.)
27	Cover-Backguard Wire
28	Bottom Front-Backguard
29	Knob-Thermostat
30	Knob-Clock
31	Knob-Selector
32	Knob-Infinite Switch (4 Req)
33	Knob-Clock (Start & Stop Time)
34	Screw 6-20×3/8“
