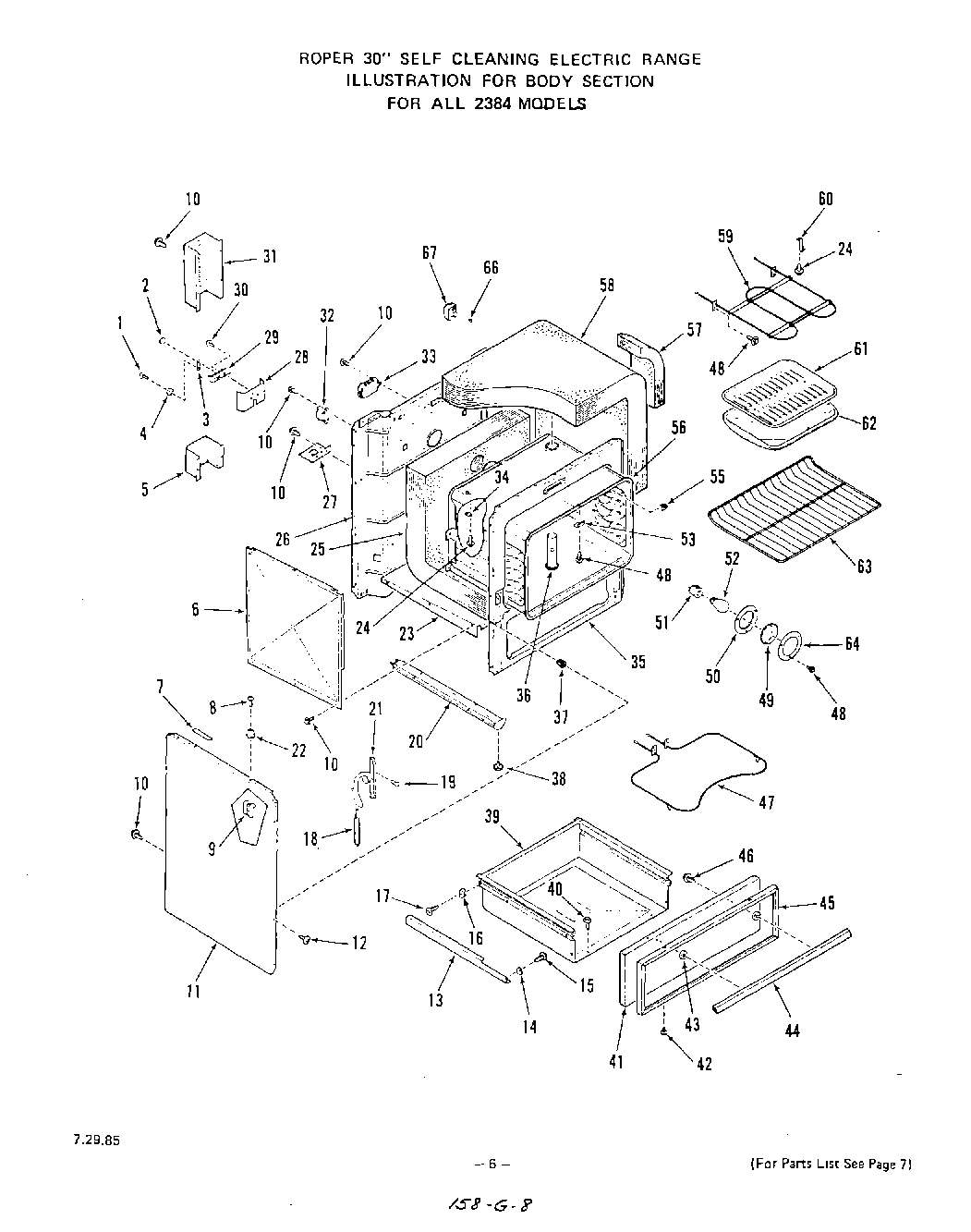

2384W2A 06 – BODY

Products

Position	Product
1	Screw 10-32×7/16“
2	Hex Nut 10-32
3	Ground Strap
4	Washer
5	Wire Shield-Lower
6	Retainer-Insulation (Lt. or Rt.)
7	Spacer-Main Top (2 Req)
8	Screw 6-32×7/8“
9	Bracket-Body Side (Lt. or Rt.)
11	Side-Body (Lt. or Rt.)
11	Almond
11	White
11	Golden Wheat
12	Screw 8ABx5/8“
13	Support-Storage Drawer (Lt. or Rt.)
14	Block-Slide Front (Lt. or Rt.)
15	Screw 10-32×17/32“
16	Rear Slide Block – Lt. or Rt.
17	Screw 8 – 32 x 3/8“
18	Spring-Oven Door (Lt. or Rt.)
19	Screw 10-32×5/8“
20	Base w/Levelers (Lt. or Rt.)
21	Hinge-Oven Door
21	Left
21	Right
22	Strike-Main Top (Lt. or Rt.)
23	Retainer-Bottom Insulation
25	Insulation-Oven Back & Bottom
26	Main Back
27	Range Service Mounting Plate
28	Insulation-Service Cord
29	Junction Block
30	Screw 10-32×1“
31	Shield-Upper Wire
32	Ballast
33	Oven Relay
34	Cover Plate-Thermostat Bulb
35	Front Frame
35	Front Frame
36	Vent Tube
36	Tube-Vent
37	BURNER RECEPTACLE KIT
38	Leg Leveler (4 Req)
39	Storage Drawer
41	Panel-Storage Drawer
42	Screw 6-20×3/8“
43	Spacer
44	Handle-Broiler Door
45	Frame-Front Panel
46	Screw 10 – 32 x 1/2“
47	WPL 325883
48	Screw 10-16×7/16“
49	Lens-Oven Light
50	Gasket-Lens
51	Holder-Oven Light Bulb
52	Oven Lamp Bulb
53	Cover
55	Thermostat Bulb-Retainer (2 Req)
56	WPL 325766
56	WPL ARI10712A2
56	Front Frame
57	Insulation (Rt. or Lt.)
58	Insulation-Oven Top & Sides (1 Piece)
59	WPL 326360
60	Support-Broiler Element
61	WPL 326297
62	2055B0A Model
62	WPL ARI10713A6
62	WPL 331592
63	Oven Rack (2 Req)
64	Retainer-Oven Light Lens
66	WPL 78565
67	Fixed Input Control
