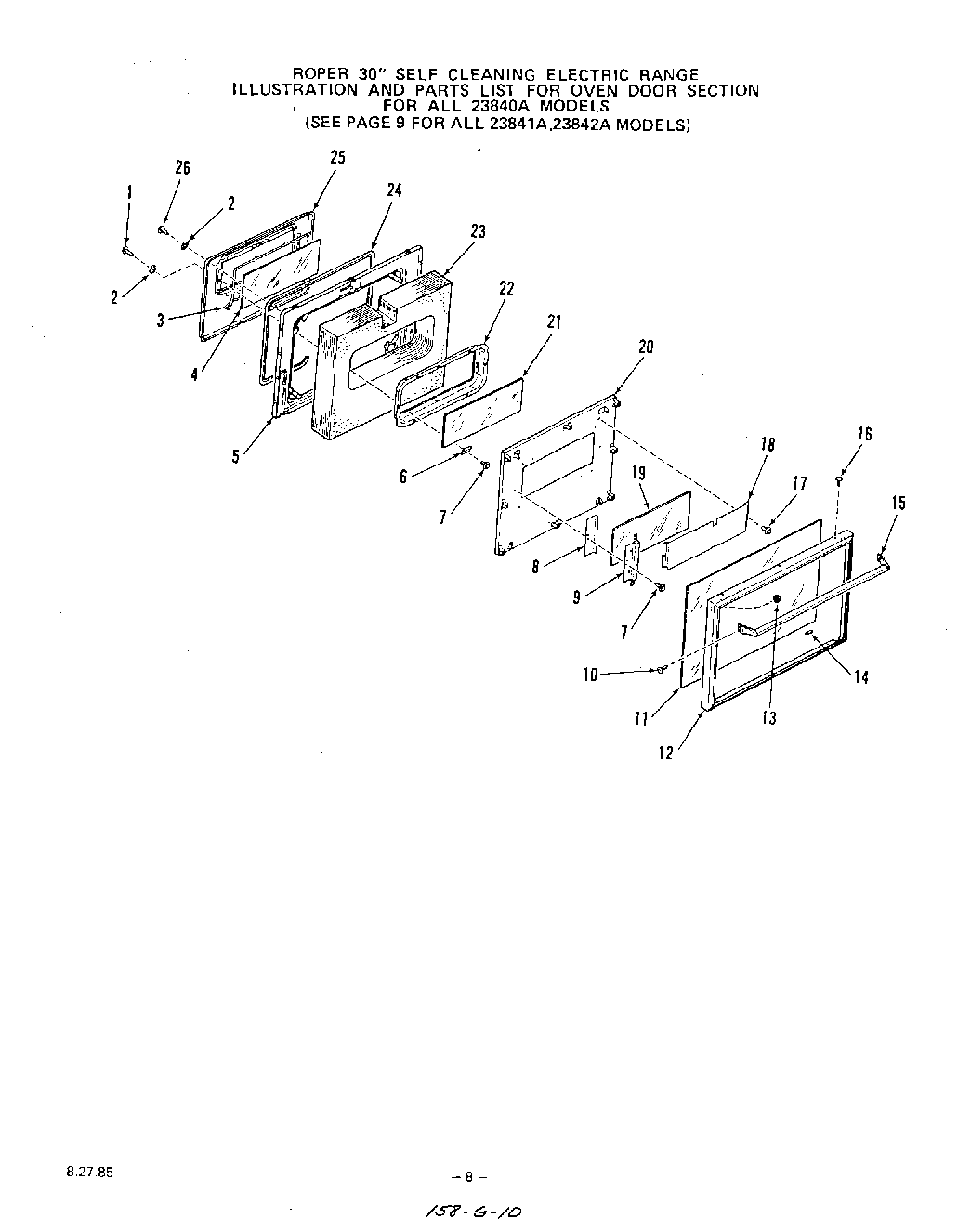

| 1 | Screw 10ABx1 |
| 2 | WPL 21067 |
| 3 | Seal-Oven Door |
| 4 | Inner Glass-Oven Door |
| 5 | Lining-Oven Door |
| 6 | Retainer-Door Glass |
| 7 | Screw 10-16x7/16`` |
| 8 | Spacer-Oven Door Glass (Lt. or Rt.) |
| 9 | WP487353 Whirlpool Refrigerator Screw |
| 10 | Screw 8-32 x 1/2`` |
| 11 | outer glass-oven door |
| 12 | Frame-Oven Door |
| 13 | Keps Nut 8-32 |
| 14 | Cushion-Door Glass |
| 15 | Handle-Oven Door |
| 16 | Screw-10-32x1/2`` |
| 17 | Screw 10 - 32 x 1/4`` |
| 18 | Baffle-Insulation Retainer |
| 19 | Intermediate Glass-Oven Door |
| 20 | Retainer-Oven Door Insulation |
| 21 | Center Glass-Oven Door |
| 22 | Retainer-Oven Door Glass |
| 23 | Insulation-Oven Door |
| 24 | Gasket-Oven Door |
| 25 | Plug-Oven Door Lining |
| 26 | Screw 10-32 x 1/2`` |
