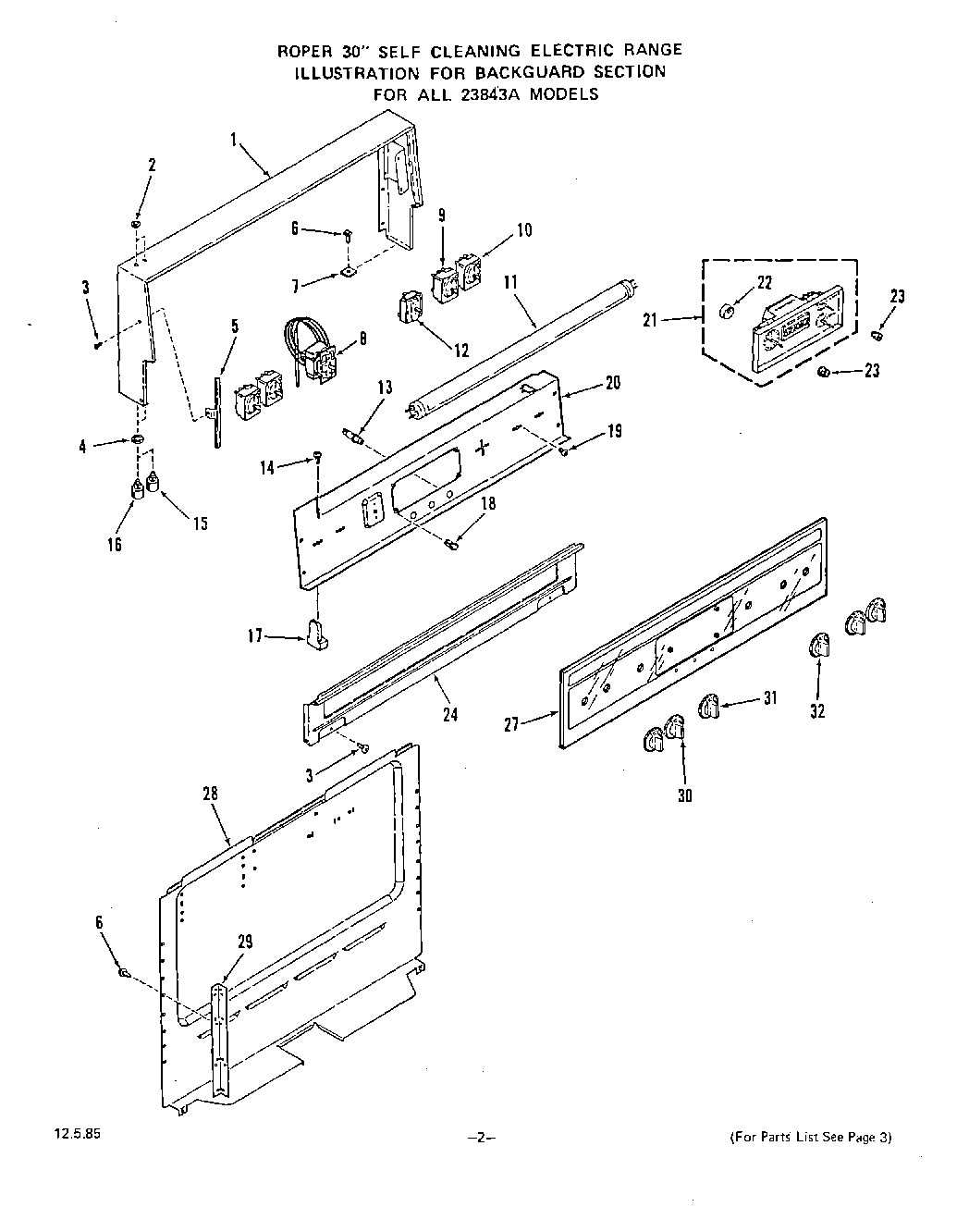

| 1 | Frame-Backguard |
| 2 | Knurled Nut |
| 3 | Screw 6-20x3/8`` |
| 4 | Lock Nut |
| 5 | End Trim- Top Lamp Glass (Lt. or Rt.) |
| 6 | Screw 10-16x7/16`` |
| 7 | Plate All 16331A,2A Models |
| 8 | Oven Thermostat |
| 9 | Left Front & Right Rear |
| 10 | Right Front & Left Rear |
| 11 | Fluorescent Lamp (20 W - 24``) |
| 12 | Selector Switch |
| 13 | Indicator Light |
| 13 | Indicator Light |
| 13 | Indicator Light |
| 14 | Screw 6-32 x 1/2`` |
| 15 | Push Switch-Fluorescent Lamp |
| 16 | Push Switch-Oven Light |
| 17 | Holder-Fluorescent Light |
| 18 | Tubular Clip (4 Req.) |
| 19 | WPL 78565 |
| 20 | Mounting Panel-Controls |
| 21 | Clock w/1 Hr. Timer |
| 22 | Clock Motor |
| 23 | Knob-Clock (Start & Stop Time) |
| 23 | Knob-Clock |
| 23 | Clock Knob |
| 24 | Backguard Front-Bottom |
| 27 | Backguard Glass |
| 28 | Cover-Backguard Wire |
| 29 | Support-Backguard (Lt. or Rt.) |
| 30 | Knob-Infinite Switch (4 Req) |
| 31 | Knob-Thermostat |
| 32 | Knob-Selector Switch |
