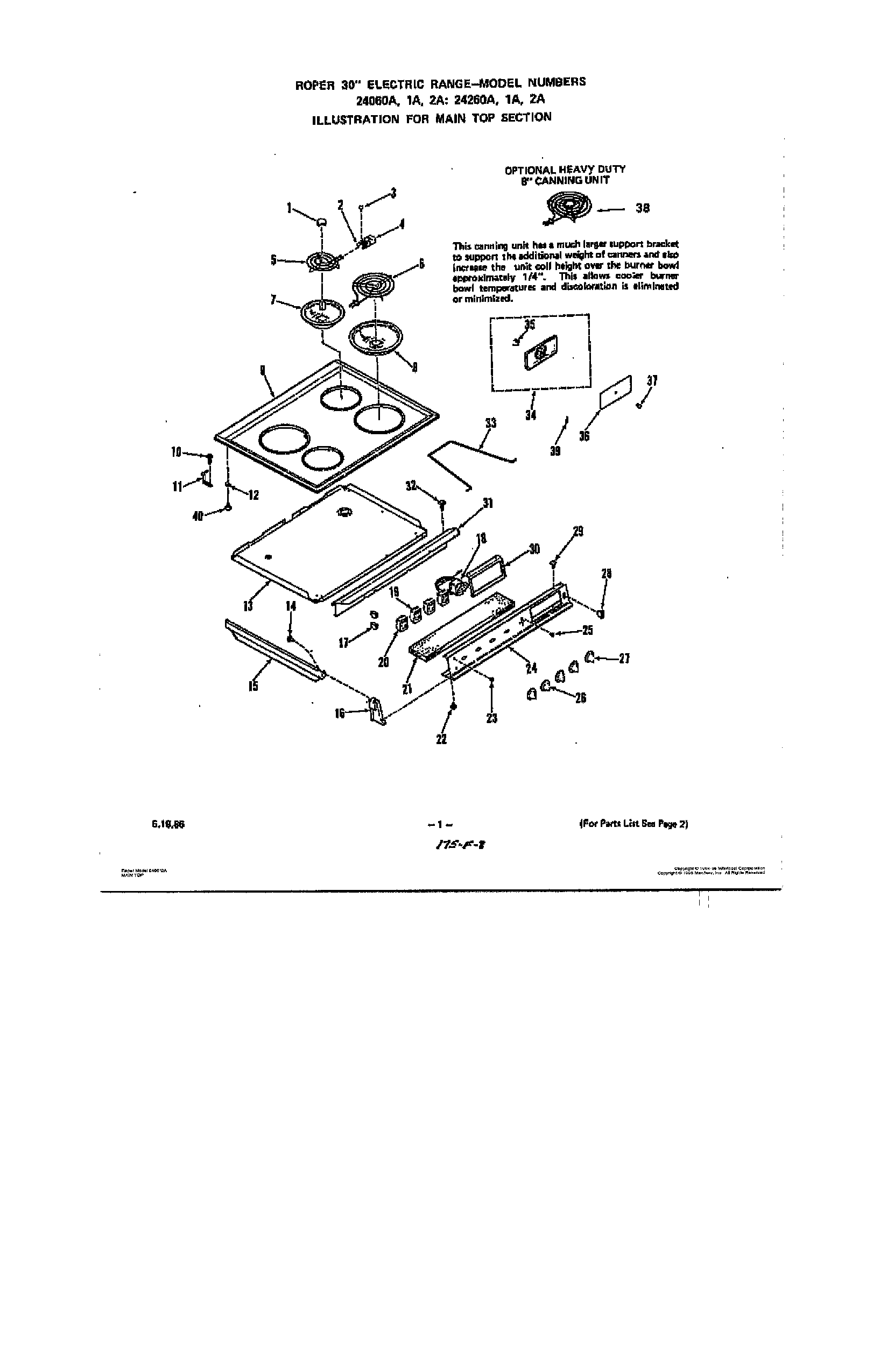

2406^0A 02 – MAIN TOP, HEAVY DUTY CANNING UNIT

2406^0A 02 – MAIN TOP, HEAVY DUTY CANNING UNIT

Written by

in

2406^0A 02 – MAIN TOP, HEAVY DUTY CANNING UNIT

Products

Position	Product
	WPL ARI10731A3
1	Medallion (2 Req) All 2101 Models
2	Bracket-Term. Block (2 Req) All 2101 Mod.
3	Screw 7-32×5/16“(2 Req) All 2101 Models
4	Term. Block w/Leads-All 2101 Models
5	6“ Surface Unit (Lt. Front & Rt. Rear)
6	8“ Surface Unit (Rt. Front & Lt. Rear)
7	6“ Burner Bowl (1 Req) All 2101 Models
8	8“ Burner Bowl (1 Req) All 2101 Models
9	Top-Main
9	Almond 2426L1A, 2A Models
9	White 2426W1A, 2A Models
9	White 2406W0A Models
9	Almond 2406L0A Models
9	White 2426W0A Models
9	Almond 2426L0A Models
9	Chrome 2426X1A, 2A Models
9	White 2406W1A, 2A Models
9	Almond 2406L1A, 2A Models
9	Chrome 2426X0A Models
11	Hinge-Main Top (Right)
11	Hinge-Main Top
11	Hinge-Main Top (Right 1456X0A Models)
11	Hinge-Main Top (Left 1456X0A Models)
11	Hinge-Main Top (Left)
12	Bracket-Hinge
13	Bottom-Burner Box
15	Extension-Burner Box Side (1456X0A Models)
15	Extension-Burner Box Side
15	Extension-Burner Box Side
16	Cap-End
16	End Cap-Manifold Panel (Left)
16	End Cap-Manifold Panel (Right)
17	Light-Indicator
17	Light-Indicator
17	Light-Indicator (Surface)
18	Thermostat-Oven
19	Infinite Control (Right)
20	Infinite Control (Left)
21	Insulation
23	Lens-Indicator Light
24	Panel-Control
25	WPL 78565
26	Knob-Infinite Control (4 Req)
27	Knob-Thermostat
28	Switch-Oven Light
28	Switch-Oven Light (1456X0A Models)
28	Switch-Oven Light
29	Screw-10-32×1/2“
30	Bracket-Clock
31	Cover-Wire
32	Screw 10-16×7/16“
33	Support Rod-Main Top
34	22042A Models
35	Clock Motor
36	Clock Glass
37	Knob-Clock (Start & Stop Time)
38	Optional Heavy Duty 8“ Canning Unit (240 Volt)
38	WPY04100165 Whirlpool Surface Element
38	WPL ARI10730A4
39	Clip-Clock Bezel
40	WPL 335202
40	WPL 335190
40	Screw 10-32×5/16“
40	WPL 331335
40	Electric Use & Care Guide
40	WPL 331334
