2406^1A 06 – WIRE HARNESS , REAR MAIN TOP FILLE

2406^1A 06 – WIRE HARNESS , REAR MAIN TOP FILLE

Written by

in

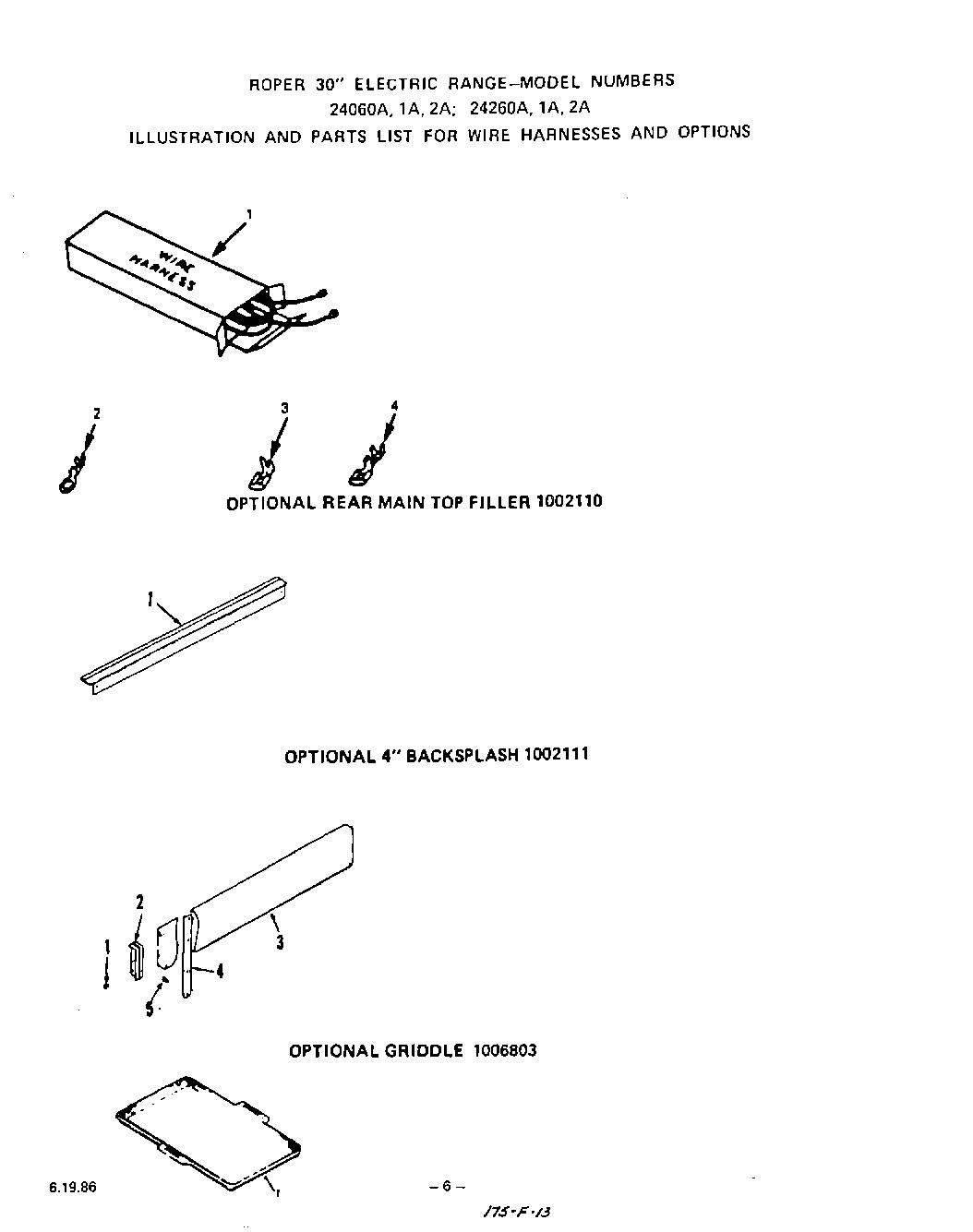

2406^1A 06 – WIRE HARNESS , REAR MAIN TOP FILLE

Products

PositionProduct
C1Window Package
B3Backsplash
B2End Cap
xParts Not Shown On Illustration
xParts Not Shown On Illustration
xSheet Instruction
xInstructions Installation
B5Screw 10-16×7/16“
A1Filler-Main Top Rear
B4Backplash Support
B1Screw 6-32×3/8“
1Wire Harness
1Main Top
1Main
2Eyelet Terminal
3Flag Terminal
4Faston Terminal
