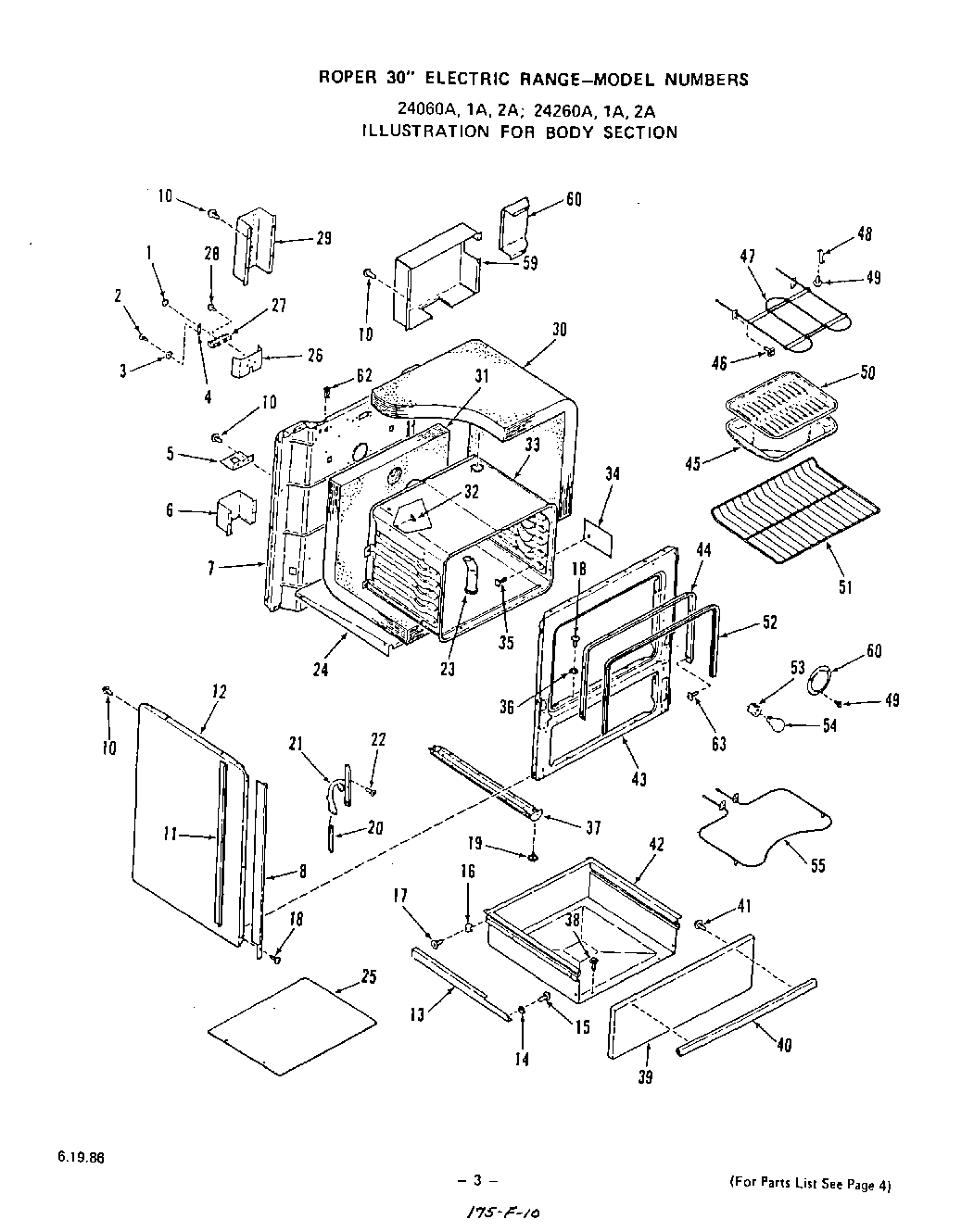

2406^2A 04 – BODY

Products

Position	Product
1	Hex Nut 10-32
2	Screw 10-32×7/16“
3	Washer
4	Ground Strap
5	Range Service Mounting Plate
6	Wire Shield-Lower
7	Main Back
8	Trim-Side
8	Trim-Side (Right)
8	Trim-Side (Left)
11	Extension Side Trim
12	Body Side (Lt. or Rt.) (Black)
13	Support-Storage Drawer (Lt. or Rt.)
14	Front Slide Block-(Lt. or Rt.)
15	Screw 10-32×17/32“
16	Rear Slide Block – Lt. or Rt.
17	Screw 8 – 32 x 3/8“
18	Screw 10ABx1/2“
19	Leg Leveler (4 Req)
20	spring-oven door (lt. or rt.)
20	Spring-Oven Door (Lt. or Rt.)
20	Spring-Oven Door
21	Left
21	Right
21	Hinge-Oven Door
22	Screw
23	Vent Tube
24	Retainer-Bottom Insulation
25	WPL 331867
26	Insulation-Service Cord
27	Junction Block
28	Screw 10-32×1“
29	Shield-Upper Wire
30	Insulation-Oven Top & Sides (1 Piece)
31	Insulation-Oven Back & Bottom (1 Piece)
32	Clip-Thermotat Bulb (2 Req)
33	All 2214, 2224 1A & 2A Models
33	Oven Body
33	All 2234 & 2244 Models
34	Insulation Retainer-Rt. or Lt.
35	Dart-Button Head (2 Required)
36	WPL 21067
37	Base w/Levelers (Lt. or Rt.)
37	Base w/Levelers-Lt. or Rt.
37	24062A, 24262A Models
39	WPL 326078
40	Handle
41	WPL 295850
42	Storage Drawer
43	Front Frame
44	main chassis (almond)
45	WPL 331592
47	WPL 326360
47	WPL 326361
47	WPL ARI10773A4
48	Support-Broiler Element
49	Screw 10-16×7/16“
50	WPL 326397
51	WPL 326068
52	WPL 326047
53	Holder-Oven Light Bulb
54	Oven Lamp Bulb
55	WPL ARI10774A8
55	WPL 325883
55	Bake Element (208 Volt (Optional))
59	WPL 333128
60	Wire Shield
62	WP112432 Whirlpool Nut Assembly
63	Screw 10ABx1/2“
