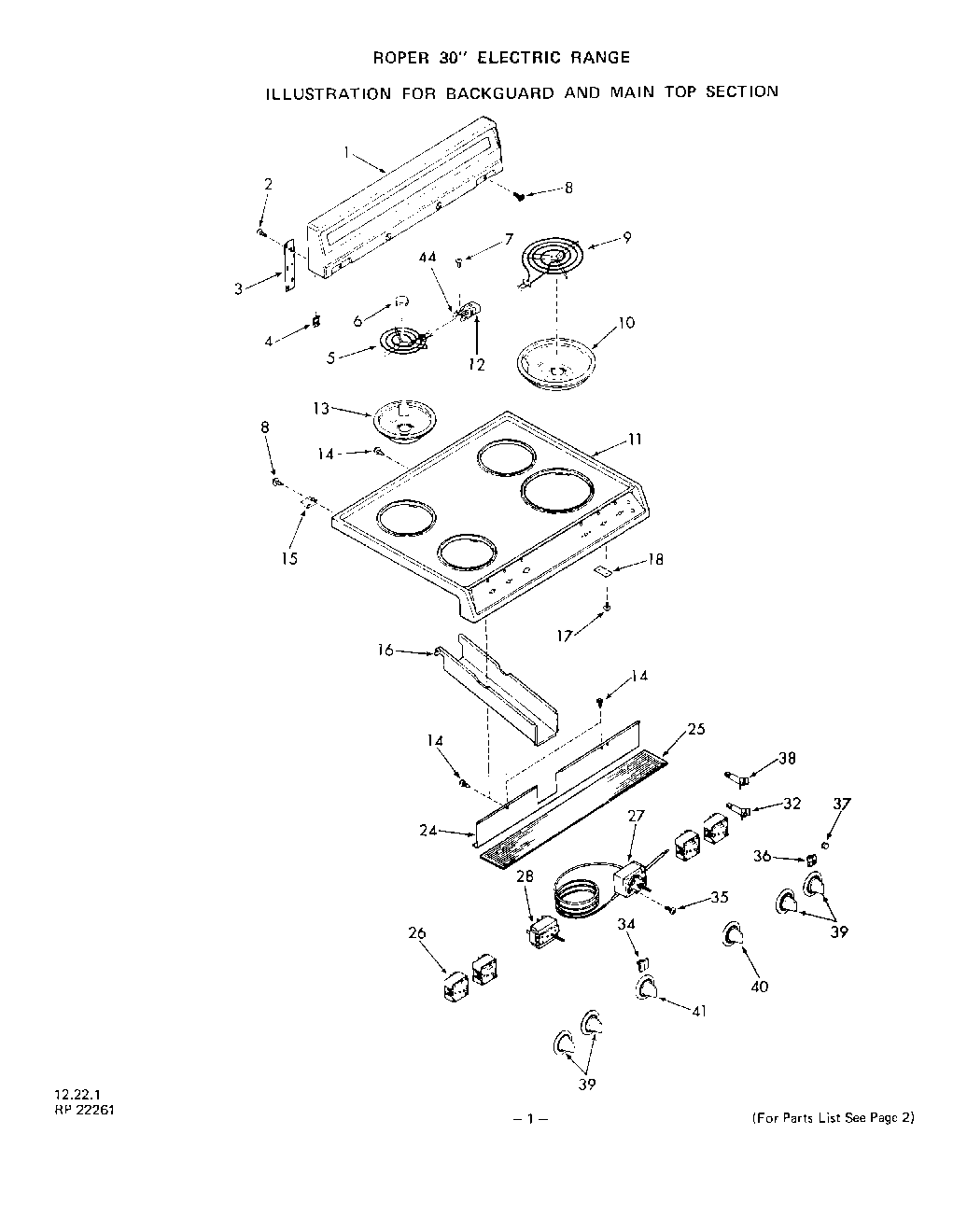

2413W0A 02 – BODY

Products

Position	Product
1	Backguard (Almond)
1	Backguard (White)
3	Support-Backguard (Lt. or Rt.)
4	Speed Nut 10 – 32
5	6“ Surface Unit (Lt. Rt. Rr. & Lt. Frt.)
6	Medallion (4 Required)
7	Screw 7-32×5/16“(2 Req) All 2101 Models
8	Screw 10-32×7/16“
9	8“ Surface Unit (Rt. Front)
10	8“ Burner Bowl (1 Req) All 2101 Models
11	Main Top (White)
11	Main Top (Almond)
12	Term. Block w/Leads-All 2101 Models
13	6“ Burner Bowl (1 Req) All 2101 Models
14	WP112432 Whirlpool Nut Assembly
15	Retainer-Main Top (2 Required)
16	W10311986 Whirlpool Dishwasher Lower Rack
17	Screw 10-32×3/8“
18	Strap-Hold Down (Rt. or Lt.)
24	Cover-Controls
25	Insulation-Corrugated Asbestos
26	WPL 320944
27	Lower Oven Thermostat
28	Selector Switch
32	Indicator Light-Oven
34	Pad, Sound
35	WPL 78565
36	Button-I.D. (Infinite)-4 Required
37	Lens-Indicator Light (2 Req)
38	Indicator Light
39	Knob-Infinite Control
40	Knob-Oven Thermostat
41	Knob-Selector
44	Bracket-Term. Block (2 Req) All 2101 Mod.
