2413W0A 03 – OVEN DOOR

2413W0A 03 – OVEN DOOR

Written by

in

2413W0A 03 – OVEN DOOR

Products

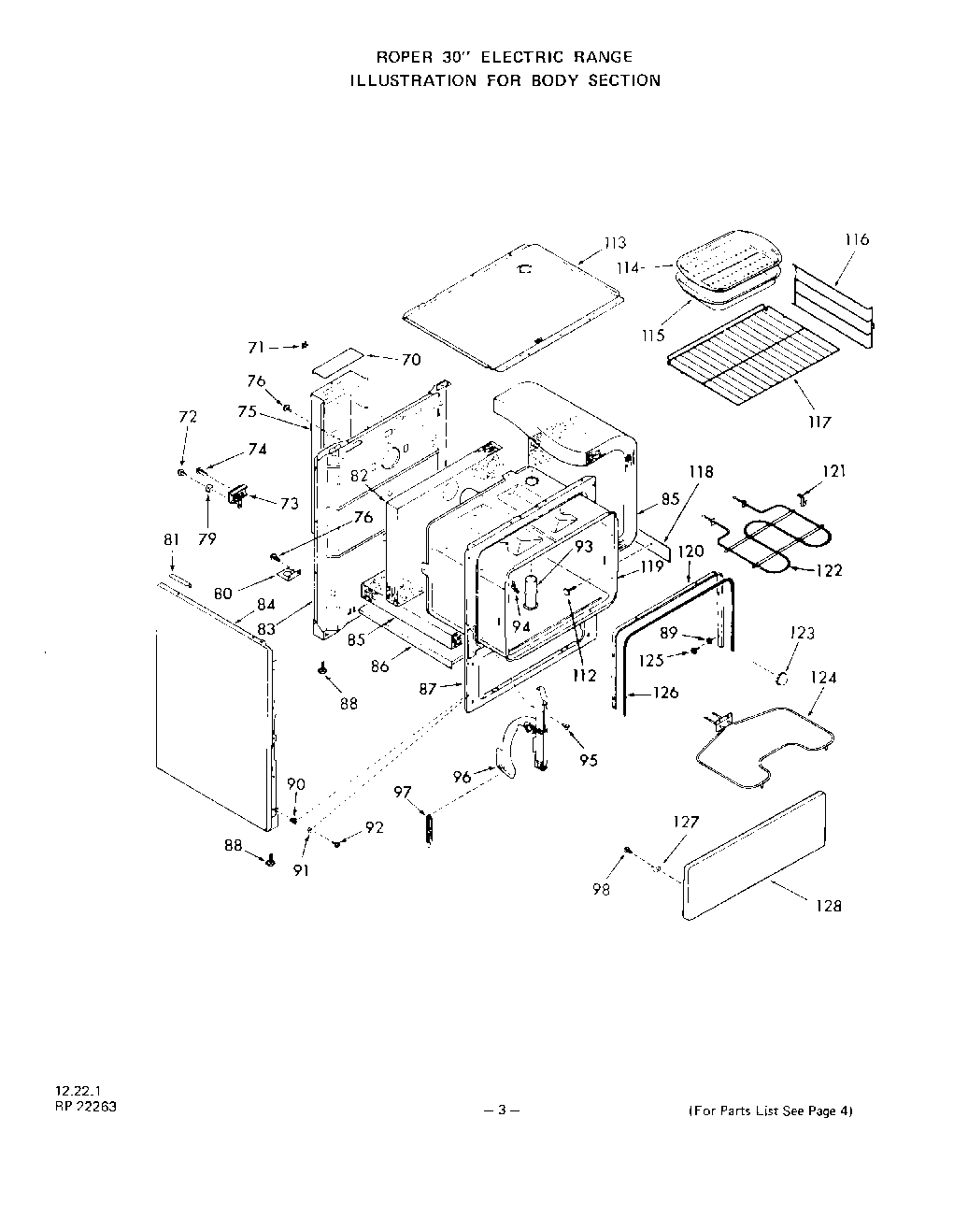

PositionProduct
70Top-Wire Cover Main Back
71Clip
72Screw 10-32×7/16“
73Junction Block
74Screw 10-32×1“
75Wire Shield
76WP112432 Whirlpool Nut Assembly
79Washer
80Range Service Mounting Plate
81Spacer-Main Top
82Insulation – Oven Back
83Main Back
84Body Side (White-Right)
84Body Side (Almond-Right)
84Body Side (White-Left)
84Body Side (Almond-Left)
85Insulation-Oven Top & Sides (1 Piece)
86Retainer-Bottom Insulation
87Front Frame
88Leg Leveler (4 Required)
89WPL 21067
90Grommet – Screw (8 Req.)
91Washer
92WP303896 Whirlpool High Limit Thermostat
93Vent Tube
94Thermostat Bulb Clip (2 Required)
95Screw 10-32 x 5/8“
96Left
96Right
97Spring-Oven Door (Lt. or Rt.)
98Screw 10 – 32 x 7/16“
112Dart-Button Head (2 Required)
113Burner Box Bottom
114WPL 293099
115WPL 293098
116WPL 305409
117WPL 305408
118Retainer-Insulation (Rt. or Lt.)
119Oven Body
120WPL 296103
121Support-Broiler Elem
122Broiler Element
123WPL 101063
124CH2858 Chromalox Bake Element 240V/2700W
125WPL 316365
126WPL 296102
127Clip (4 Required)
128Snap On Panel (White)
128Snap On Panel (Almond)
