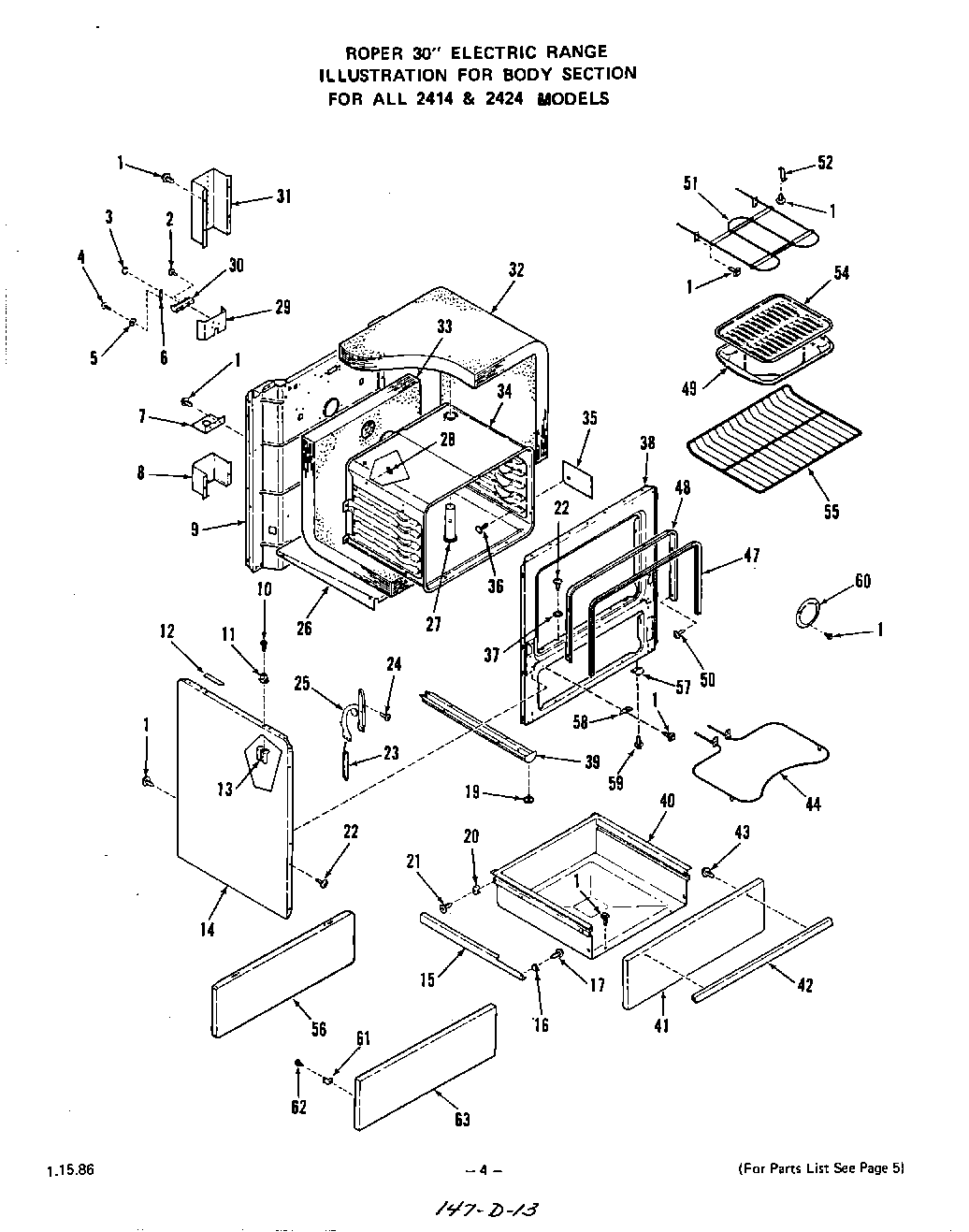

2414^2A 05 – BODY

Products

Position	Product
2	Screw 10-32×1“
3	Hex Nut 10-32
4	Screw 10-32×7/16“
5	Washer
6	Ground Strap
7	Range Service Mounting Plate
8	Wire Shield-Lower
9	Main Back
10	Screw 6-32×7/8“
11	Strike-Main Top (Lt. or Rt.)
12	Spacer-Main Top (2 Req)
13	Bracket-Body Side (Lt. or Rt.)
14	Body Side (Lt. or Rt.)
14	Toast
14	Platinum
14	Almond
14	White
15	Support-Storage Drawer (Lt. or Rt.)
16	Front Slide Block-(Lt. or Rt.)
17	Screw 10-32×17/32“
18	Screw 10-16×7/16“
19	Leg Leveler (4 Req)
20	Rear Slide Block – Lt. or Rt.
21	Screw 8 – 32 x 3/8“
22	Screw 10ABx1/2“
23	Spring-Oven Door (Lt. or Rt.)
24	Screw
25	Right
25	Left
25	Hinge-Oven Door
26	Retainer-Bottom Insulation
27	Vent Tube
28	Thermostat Bulb Clip (2 Required)
29	Insulation-Service Cord
30	Junction Block
31	Shield-Upper Wire
32	Insulation-Oven Top & Sides (1 Piece)
33	Insulation-Oven Back & Bottom (1 Piece)
34	Oven Body
34	All 2214, 2224 1A & 2A Models
34	All 22140A & 22240A Models
35	Drawer, Utility
36	Dart-Button Head (2 Required)
37	WPL 21067
38	Fr
38	Front Frame
38	All 22140A & 22240A Models
39	Base w/Levelers (Lt. or Rt.)
40	Storage Drawer
41	WPL ARI10924A9
41	WPL 328347
41	WPL 326073
41	WPL 326077
41	WPL 328355
42	Handle-Broiler Door
43	WPL 295850
44	WPL 325883
47	WPL 326047
48	main chassis (almond)
49	WPL ARI10925A9
49	WPL 331592
49	WPL 293098
50	Screw 10ABx1/2“
51	WPL 326360
52	Support-Broiler Element
54	WPL 326297
54	WPL ARI10926A9
54	WPL 293099
55	WPL 326068
55	WPL ARI10927A3
56	WPL 329566
56	WPL 329570
56	WPL ARI10928A1
57	WPL 331121
58	WPL 331122
59	WP112432 Whirlpool Nut Assembly
60	WPL 326935
61	Clip (4 Required)
62	Screw 10 – 32 x 7/16“
63	WPL 326433
63	WPL 326429
63	WPL ARI10929A8
