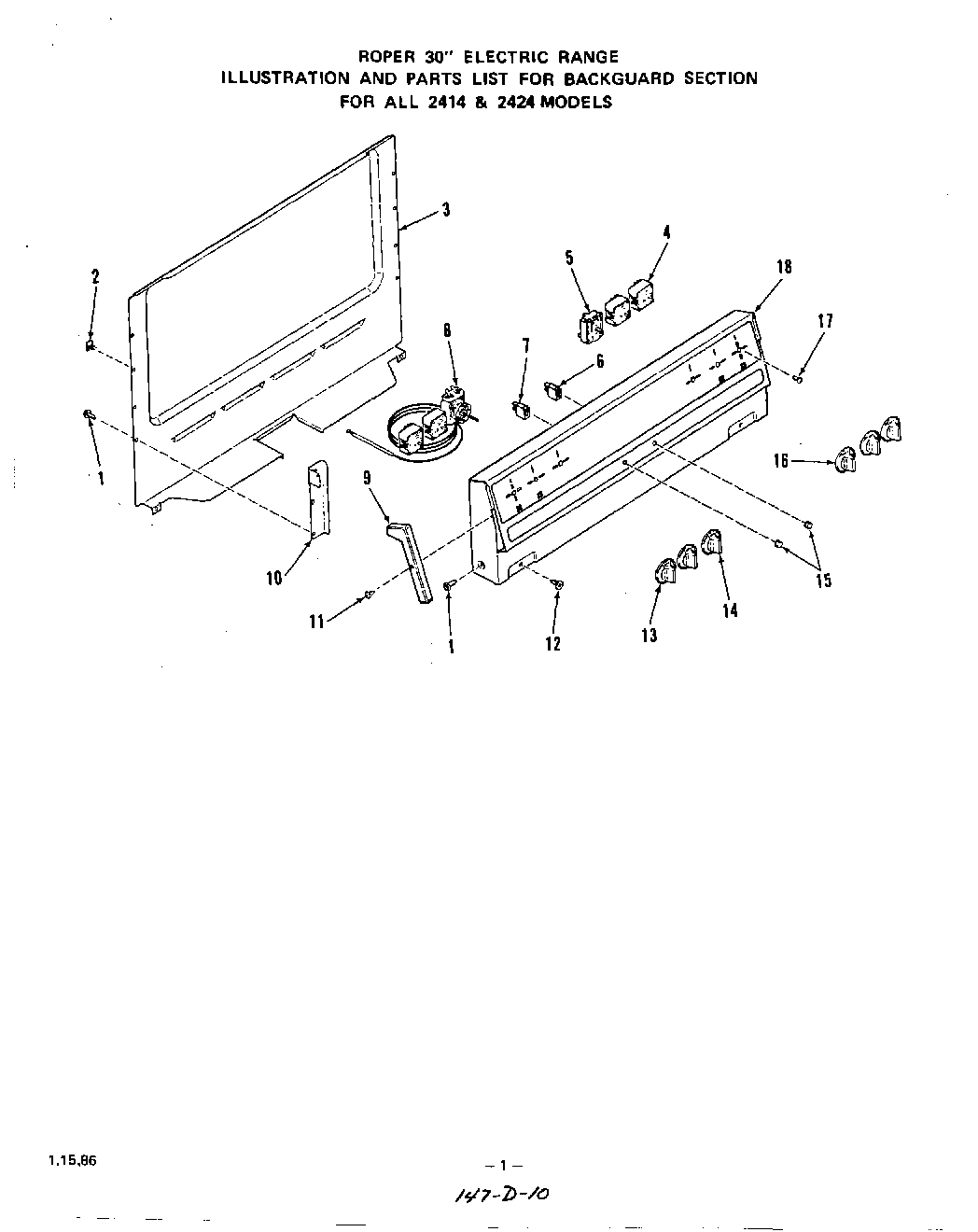

2424^1A 02 – BACKGUARD

2424^1A 02 – BACKGUARD

Written by

in

2424^1A 02 – BACKGUARD

Products

PositionProduct
1Screw 10-16×7/16“
2Clip
3Cover-Backguard Wire
4WPL 320944
4Infinite Control (Left)
4Infinite Control (Right)
4Infinite Control
5Selector Switch
6WPL 327326
7Indicator Light-Oven
8Thermostat
82214, 2224, 2234, 2244 0A & 1A Models
82214, 2234, 2244 2A Models
9End Cap
9Left
9Right
10Support-Backguard (Right)
10Support-Backguard (Left)
10Support-Backguard
11Screw 6-20×3/8“
12Screw 10ABx1/2“
13Knob-Infinite Control (4 Req)
14Knob-Thermostat
15Lens-Indicator Light
16Knob-Selector Switch
17WPL 78565
18Almond
18Toast
18Platinum
18White
18Crosstie-Backguard
