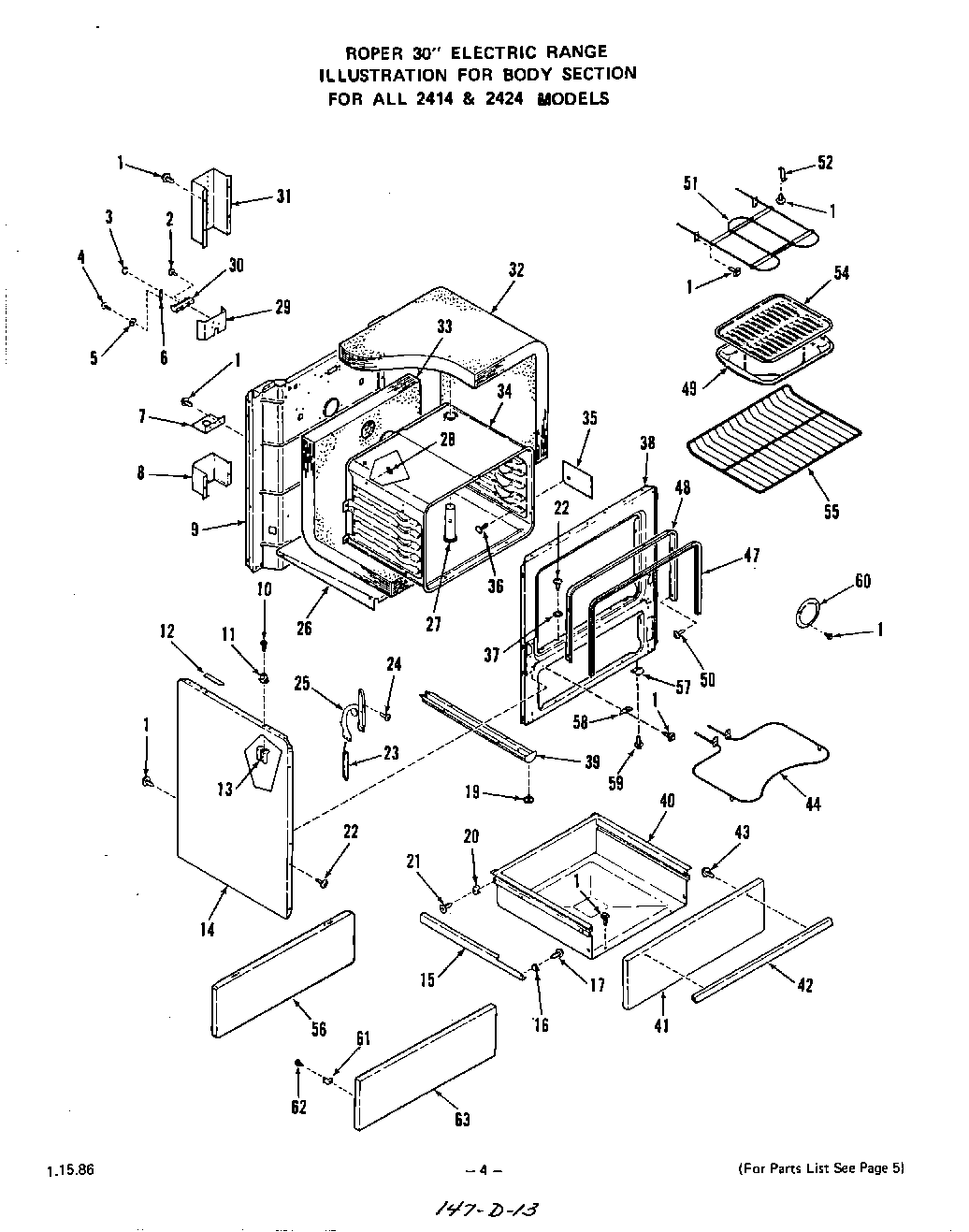

2424W0A 05 – BODY

2424W0A 05 – BODY

Written by

in

2424W0A 05 – BODY

Products

PositionProduct
2Screw 10-32×1“
3Hex Nut 10-32
4Screw 10-32×7/16“
5Washer
6Ground Strap
7Range Service Mounting Plate
8Wire Shield-Lower
9Main Back
10Screw 6-32×7/8“
11Strike-Main Top (Lt. or Rt.)
12Spacer-Main Top (2 Req)
13Bracket-Body Side (Lt. or Rt.)
14White
14Platinum
14Toast
14Almond
14Body Side (Lt. or Rt.)
15Support-Storage Drawer (Lt. or Rt.)
16Front Slide Block-(Lt. or Rt.)
17Screw 10-32×17/32“
18Screw 10-16×7/16“
19Leg Leveler (4 Req)
20Rear Slide Block – Lt. or Rt.
21Screw 8 – 32 x 3/8“
22Screw 10ABx1/2“
23Spring-Oven Door (Lt. or Rt.)
24Screw
25Hinge-Oven Door
25Right
25Left
26Retainer-Bottom Insulation
27Vent Tube
28Thermostat Bulb Clip (2 Required)
29Insulation-Service Cord
30Junction Block
31Shield-Upper Wire
32Insulation-Oven Top & Sides (1 Piece)
33Insulation-Oven Back & Bottom (1 Piece)
34All 22140A & 22240A Models
34All 2214, 2224 1A & 2A Models
34Oven Body
35Drawer, Utility
36Dart-Button Head (2 Required)
37WPL 21067
38All 22140A & 22240A Models
38Fr
38Front Frame
39Base w/Levelers (Lt. or Rt.)
40Storage Drawer
41WPL 328355
41WPL 328347
41WPL 326077
41WPL 326073
41WPL ARI11056A6
42Handle-Broiler Door
43WPL 295850
44WPL 325883
47WPL 326047
48main chassis (almond)
49WPL 293098
49WPL ARI11057A5
49WPL 331592
50Screw 10ABx1/2“
51WPL 326360
52Support-Broiler Element
54WPL ARI11058A7
54WPL 293099
54WPL 326297
55WPL 326068
55WPL ARI11059A6
56WPL 329566
56WPL ARI11060A4
56WPL 329570
57WPL 331121
58WPL 331122
59WP112432 Whirlpool Nut Assembly
60WPL 326935
61Clip (4 Required)
62Screw 10 – 32 x 7/16“
63WPL ARI11061A9
63WPL 326433
63WPL 326429
