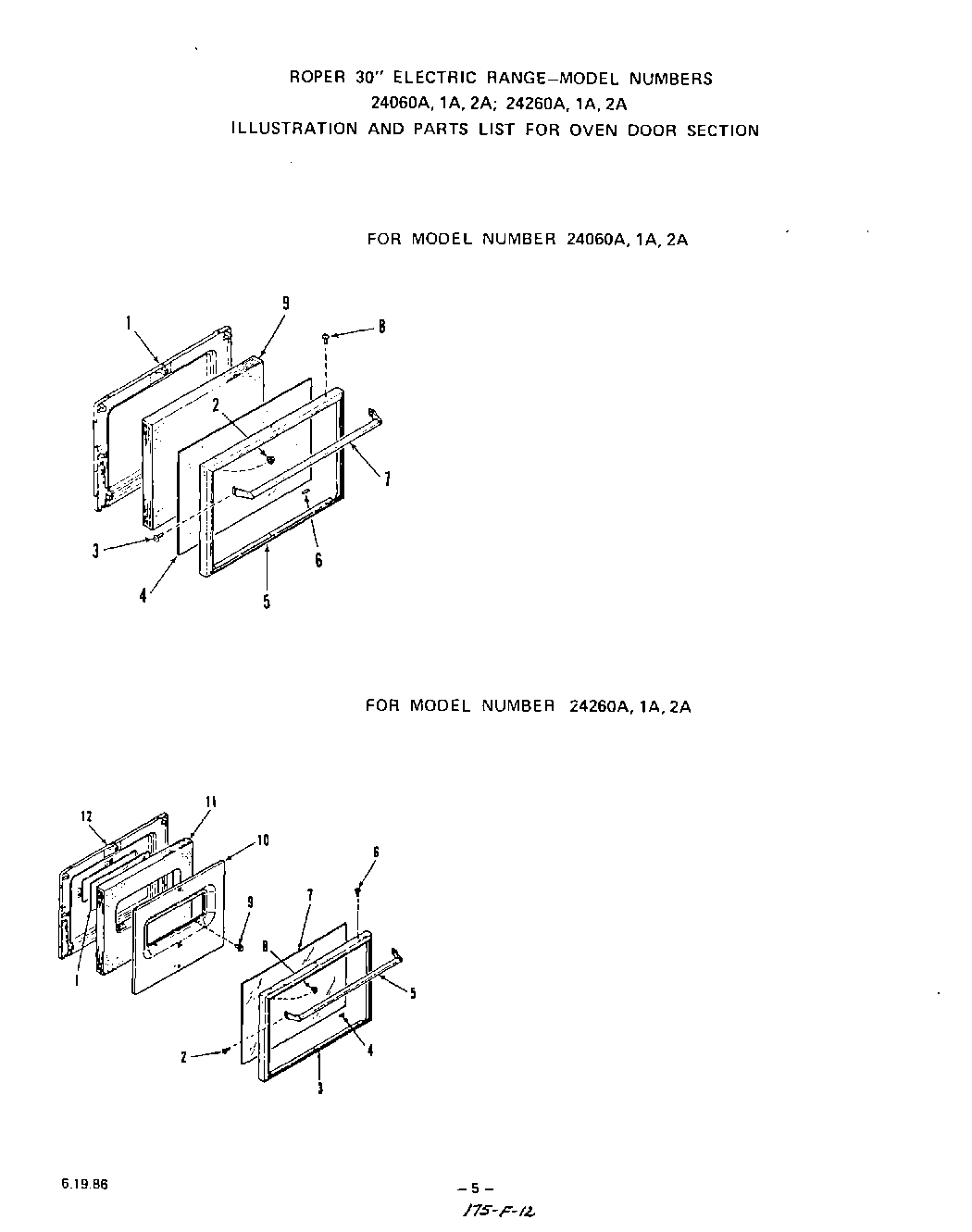

2426W1A 05 – OVEN DOOR

Products

Position	Product
A8	Keps Nut 8-32
A12	Lining-Oven Door
A7	outer glass-oven door
A11	Insulation
A10	Retainer-Oven Door Insulation
A3	frame-oven door
A1	Glass-Inner Oven Door
A5	Handle-Oven Door
A4	Cushion-Door Glass
A2	Screw 8-32 x 1/2``
A6	Screw-10-32x1/2``
A9	Screw 10 - 32x3/8``
1	22041A & 2A Models
4	Glass-Oven Door
5	Frame-Oven Door
9	Insulation
