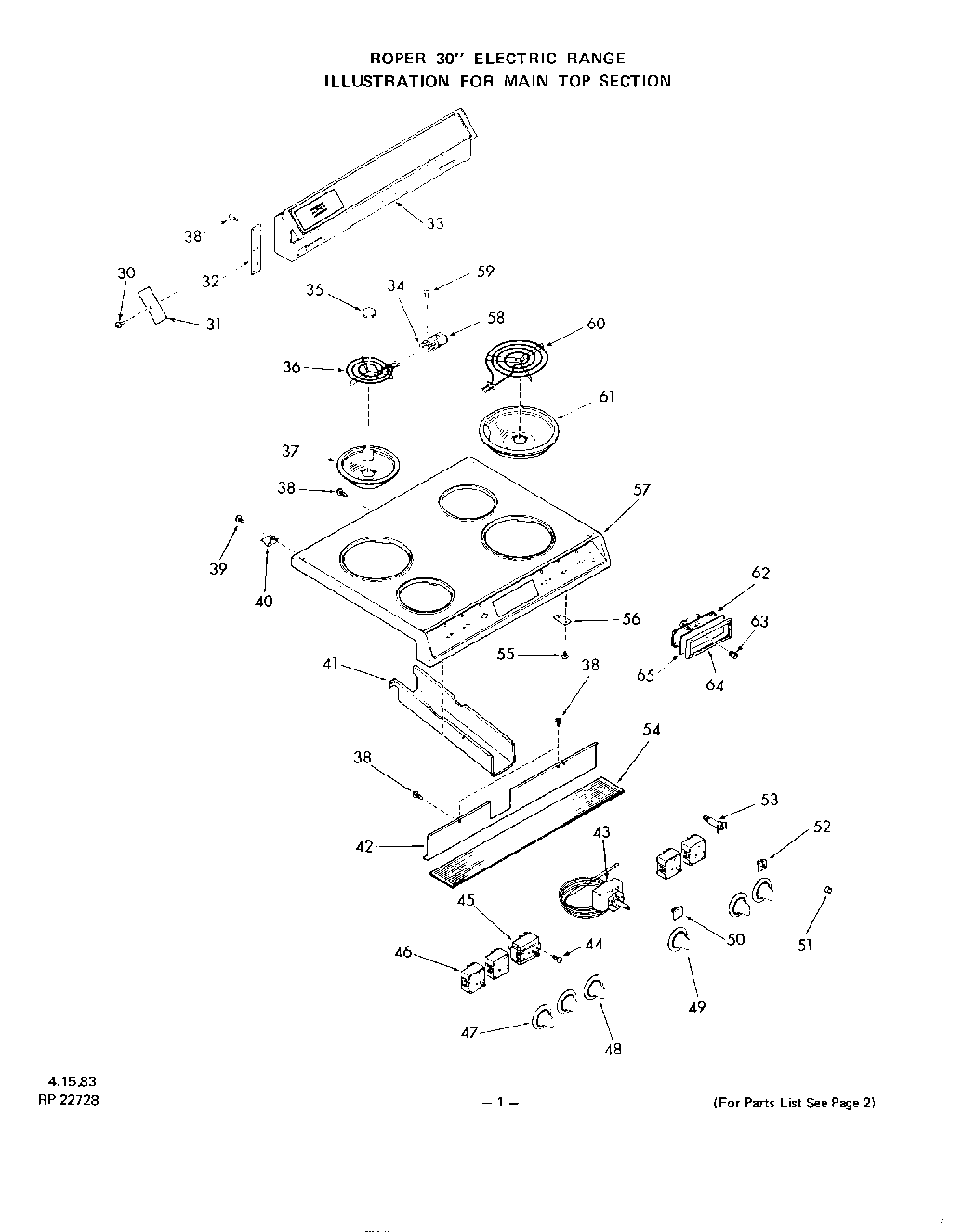

2453W0A 02 – BODY

Products

Position	Product
30	Screw 6-32×3/8“
31	End Cap-Backguard (Lt. or Rt.)
32	Support-Backguard (Lt. or Rt.)
33	Crosstie-Backguard
34	Bracket-Term. Block (2 Req) All 2101 Mod.
35	Medallion (4 Required)
36	2454X3A Models
37	6“ Burner Bowl (1 Req) All 2101 Models
38	WP112432 Whirlpool Nut Assembly
39	Screw 10-32×7/16“
40	Retainer-Main Top (2 Required)
41	W10311986 Whirlpool Dishwasher Lower Rack
42	Cover-Controls
43	Lower Oven Thermostat
44	WPL 78565
45	Selector Switch
46	WPL 320944
47	Knob-Infinite Control Switch (4 Required)
48	Knob-Selector Switch
49	Knob-Oven Thermostat
50	Pad, Sound
51	Lens-Indicator Light
52	Button-I.D. (Infinite)-4 Required
53	Indicator Light (Oven)
53	Indicator Light
54	Insulation-Corrugated Asbestos
55	Screw 10-32×3/8“
56	Strap-Hold Down (Rt. or Lt.)
57	Main Top (White)
57	Main Top
57	Main Top (Golden Wheat)
57	Main Top (Almond)
58	Term. Block w/Leads-All 2101 Models
59	Screw 7-32×5/16“(2 Req) All 2101 Models
60	2454X3A Models
61	8“ Burner Bowl (1 Req) All 2101 Models
62	Clock w/4 Hr. Timer
63	Knob-Clock (Start & Stop Time)
64	Bezel-Clock
65	Glass-Clock
