2453W0A 03 – OVEN DOOR

2453W0A 03 – OVEN DOOR

Written by

in

2453W0A 03 – OVEN DOOR

Products

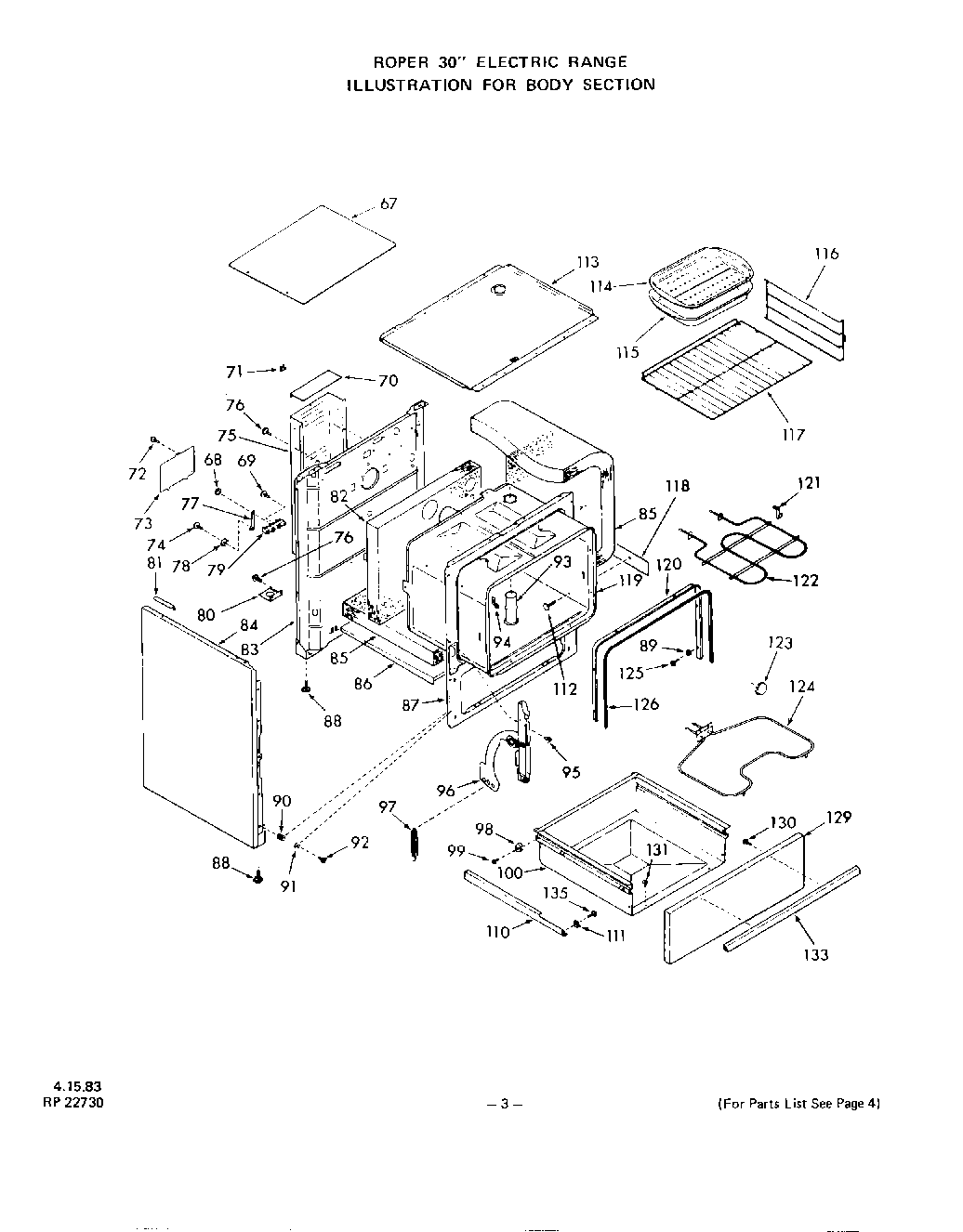

PositionProduct
67WPL 319163
68Hex Nut 10-32
69Screw 10-32×1“
70Top-Wire Cover Main Back
71Clip
73Access Plate
74Screw 10-32×7/16“
75Wire Shield
76WP112432 Whirlpool Nut Assembly
77Ground Strap
78Washer
79Junction Block
80Range Service Mounting Plate
81Spacer-Main Top
82Insulation – Oven Back
83Main Back
84Black-Left
84Black-Right
84Almond-Left
84Almond-Right
84Wheat-Left
84Wheat-Right
84White-Left
84White-Right
85Insulation-Oven Top & Sides (1 Piece)
86Retainer-Bottom Insulation
87Front Frame
88Leg Leveler (4 Required)
89WPL 21067
90Grommet – Screw (8 Req.)
91Washer
92WP303896 Whirlpool High Limit Thermostat
93Vent Tube
94Thermostat Bulb Clip (2 Required)
95Screw 10-32 x 5/8“
96Right
96Left
97Spring-Oven Door (Lt. or Rt.)
98Rear Slide Block – Lt. or Rt.
99Screw 8 – 32 x 3/8“
100Storage Drawer
110Support-Storage Drawer (Lt. or Rt.)
111Front Slide Block-(Lt. or Rt.)
112Dart-Button Head (2 Required)
113Burner Box Bottom
114WPL 293099
115WPL 293098
116WPL 305409
117WPL 305408
118Retainer-Insulation (Rt. or Lt.)
119Oven Body
120WPL 296103
121Support-Broiler Element
122Broiler Element
123WPL 101063
124CH2858 Chromalox Bake Element 240V/2700W
125WPL 321162
126WPL 296102
129WPL 312230
130WPL 295850
131WPL 316365
133Handle-Broiler Door
135Screw 10-32×17/32“
