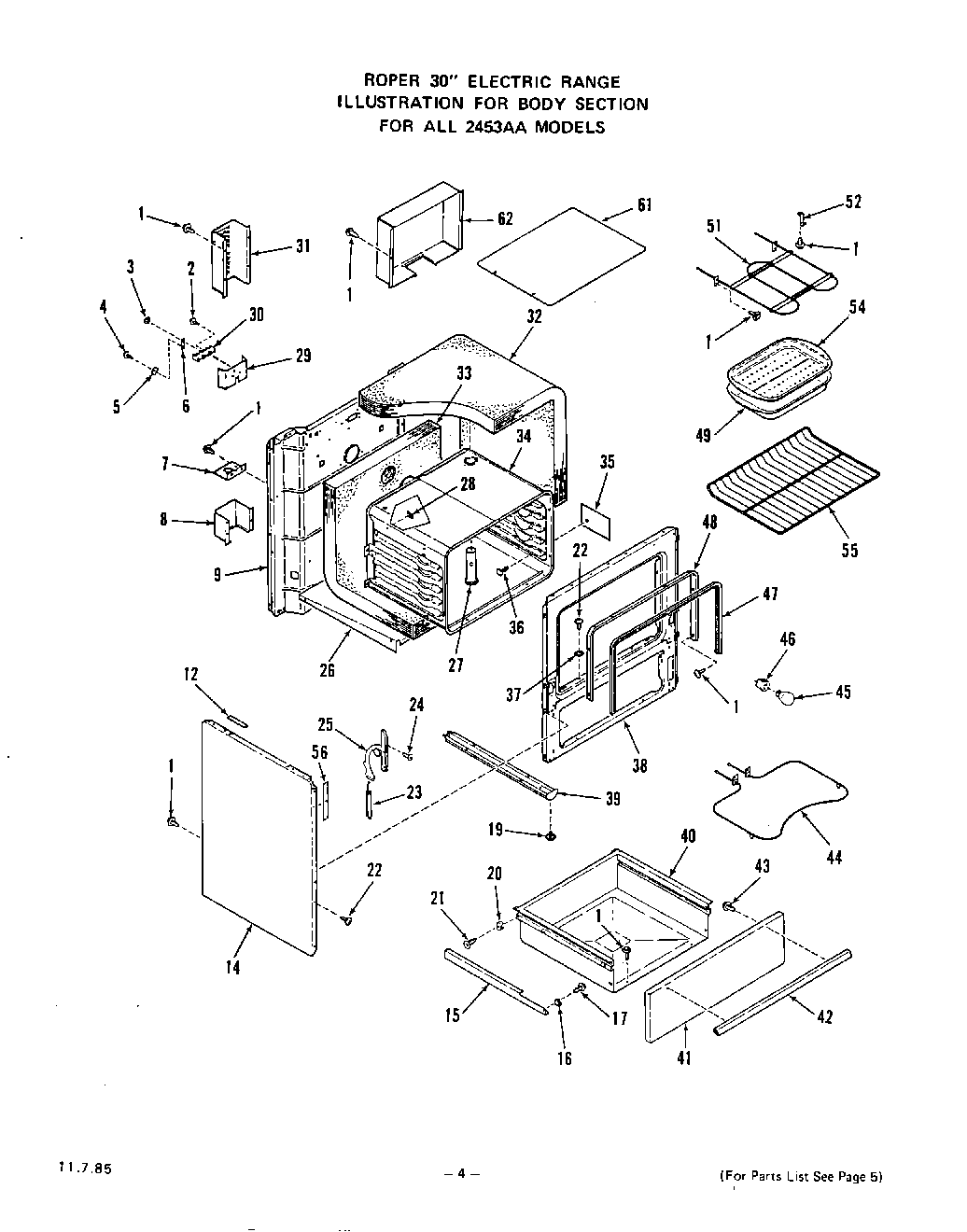

2453WAA 05 – BODY

Products

Position	Product
1	Screw 10-16×7/16“
2	Screw 10-32×1“
3	Hex Nut 10-32
4	Screw 10-32×7/16“
5	Washer
6	Ground Strap
7	Range Service Mounting Plate
8	Wire Shield-Lower
9	Main Back
12	Spacer-Main Top (2 Req)
14	Body Side (Lt. or Rt.)
14	White
14	Almond
15	Support-Storage Drawer (Lt. or Rt.)
16	Front Slide Block-(Lt. or Rt.)
17	Screw 10-32×17/32“
19	Leg Leveler (4 Req)
20	Rear Slide Block – Lt. or Rt.
21	Screw 8 – 32 x 3/8“
22	Screw-10-32×1/2“
23	spring-oven door (lt. or rt.)
24	Screw 10-32 x 5/8“
25	Right
25	Left
25	Hinge-Oven Door
26	Retainer-Bottom Insulation
27	Vent Tube
28	Thermostat Bulb Clip (2 Required)
29	Insulation-Service Cord
30	Junction Block
31	Shield-Upper Wire
32	Insulation-Oven Top & Sides (1 Piece)
33	Insulation-Oven Back & Bottom (1 Piece)
34	All 2234 & 2244 Models
35	Drawer, Utility
36	Dart-Button Head (2 Required)
37	WPL 21067
38	Front Frame
39	Base w/Levelers (Lt. or Rt.)
40	Storage Drawer
41	WPL 326077
41	Front Panel-Storage Drawer
41	WPL 326073
42	Handle-Broiler Door
43	WPL 295850
44	WPL 325883
45	Oven Lamp Bulb
46	Holder-Oven Light Bulb
47	WPL 326293
48	main chassis (almond)
49	WPL 293098
51	WPL 326360
52	Support-Broiler Element
54	WPL 293099
55	WPL 326068
56	WPL 327378
61	WPL 331867
62	WPL 326495
