2454X0A 05 – OVEN DOOR – Aparts

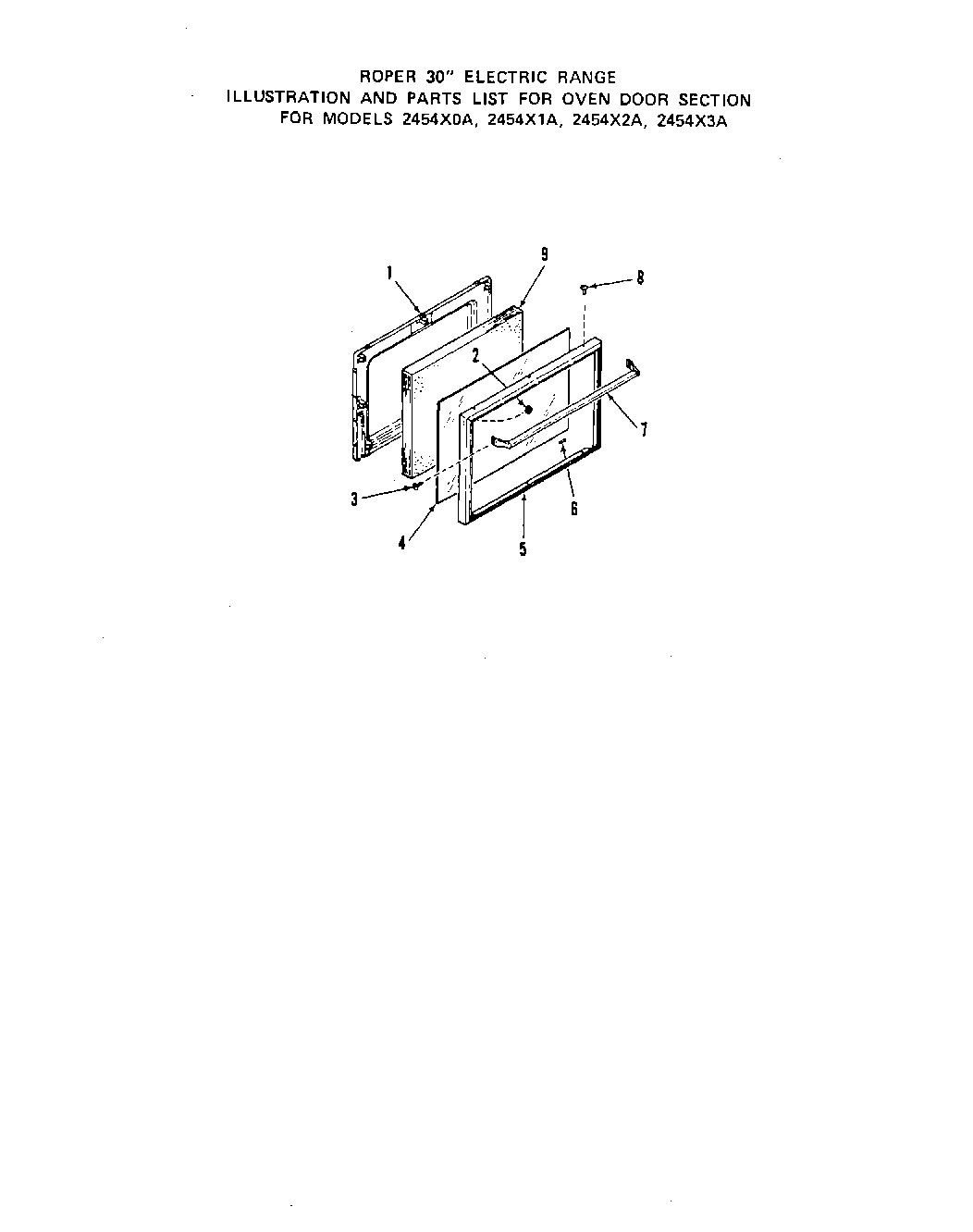

2454X0A 05 – OVEN DOOR

Products

Position	Product
	xWire Harness
1	Lining-Oven Door
2	Keps Nut 8-32
3	Screw 8-32 x 1/2``
4	Glass-Oven Door
5	Frame-Oven Door
6	Cushion-Door Glass
7	Handle-Oven Door
8	Screw-10-32x1/2``
9	Insulation
9	Controls
9	Main Top
9	Selector Switch
