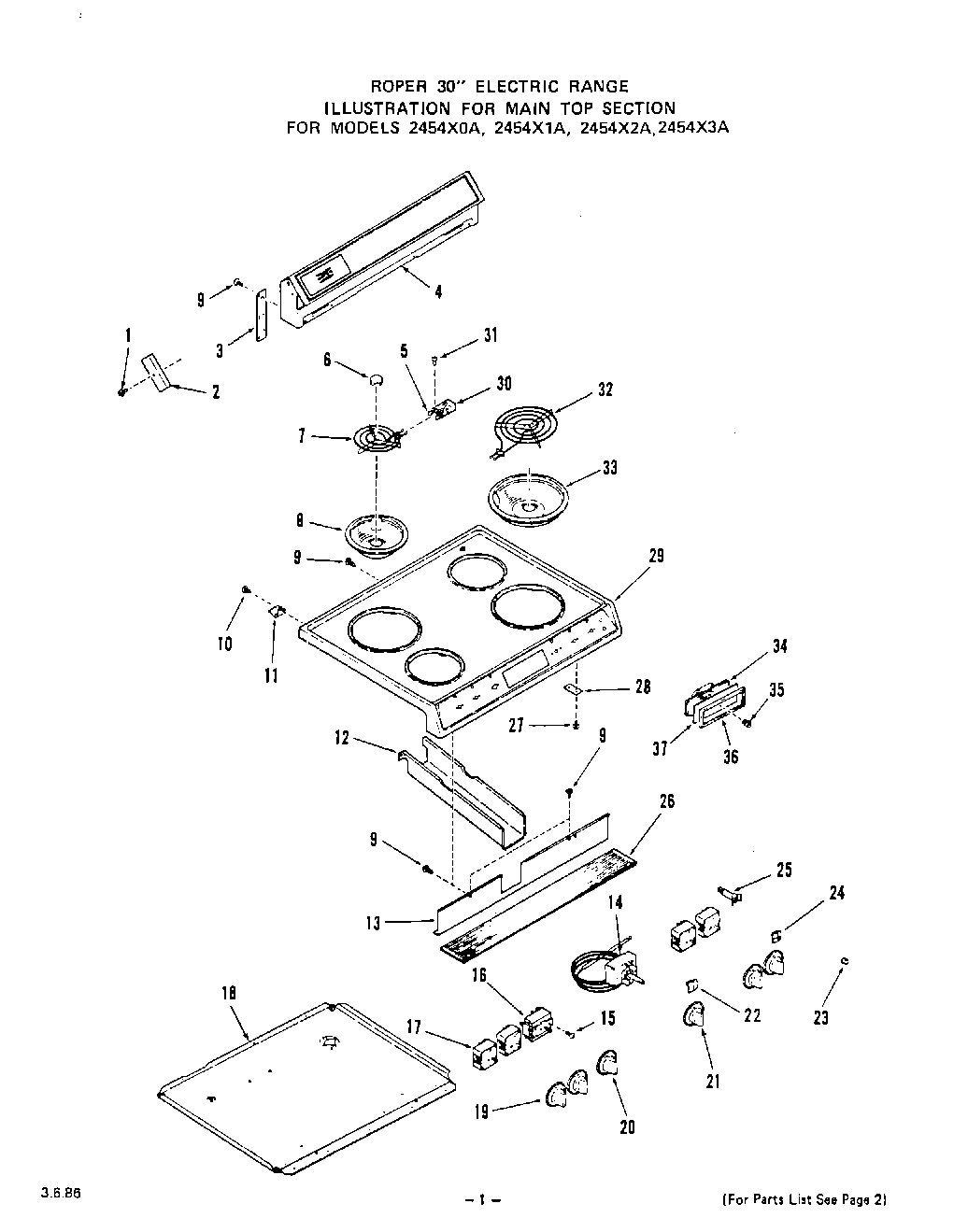

2454X2A 02 – MAIN TOP

Products

Position	Product
1	Screw 6-20×3/8“
2	End Cap-Backguard (Lt. or Rt.)
3	Support-Backguard (Lt. or Rt.)
4	Crosstie-Backguard
5	Bracket-Term. Block (2 Req) All 2101 Mod.
6	Medallion (4 Req)
6	Medallion (4 Required)
6	Medallion (4 Required)
7	2454X3A Models
7	6“ Surface Unit (Lt. Rt. Rr. & Lt. Frt.)
7	6“ Surface Element-Lt. Front & Rt. Rear
8	6“ Burner Bowl (1 Req) All 2101 Models
9	Screw 10-16×7/16“
10	Screw 10ABx1/2“
11	Retainer-Main Top (2 Required)
12	W10311986 Whirlpool Dishwasher Lower Rack
13	Cover-Controls
14	Oven Thermostat
14	Lower Oven Thermostat
14	2454X2A, 3A Models
15	WPL 78565
16	Selector Switch
17	Infinite Control Switch
17	Infinite Control (Right)
17	Infinite Control (Left)
17	WPL 320944
18	Burner Box Bottom
18	Burner Box Bottom
18	2454X2A, 3A Models
19	Knob-Infinite Control (4 Req)
20	Knob-Selector Switch
21	Knob-Thermostat
22	Pad, Sound
23	Lens-Indicator Light
24	Button-I.D. (Infinite)-4 Required
25	Indicator Light
25	Indicator Light-Oven
25	Indicator Light
26	Insulation-Corrugated
27	Screw 10-32×3/8“
28	Strap-Hold Down (Rt. or Lt.)
29	Main Top
30	Term. Block w/Leads-All 2101 Models
31	Screw 7-32×5/16“(2 Req) All 2101 Models
32	2454X3A Models
32	8“ Surface
32	8“ Surface Unit (Rt. Front)
33	8“ Burner Bowl (1 Req) All 2101 Models
34	Clock w/4 Hr. Timer
35	Knob-Clock (Start & Stop Time)
36	Bezel-Clock
37	Glass-Clock
